106 Agilent Restricted Agilent 5110/5100 ICP-OES Service Manual
4 Removal/ Installation, Replacement and Adjustment
Gas System
Gas System
The Agilent 5110 Gas distribution and control is managed by the Gas Control Module that
communicates via a high speed SLIP bus with the Instrument Control board and is mounted in
the right hand side of the instrument as shown. The module has a separate 24V supply
connection due to higher current draw from the module components.
The Plasma manifold and Purge manifold are independent assemblies and can be replaced
separately.
Section Contents:
Gas control module 106
Gas Option 108
Gas Filter 109

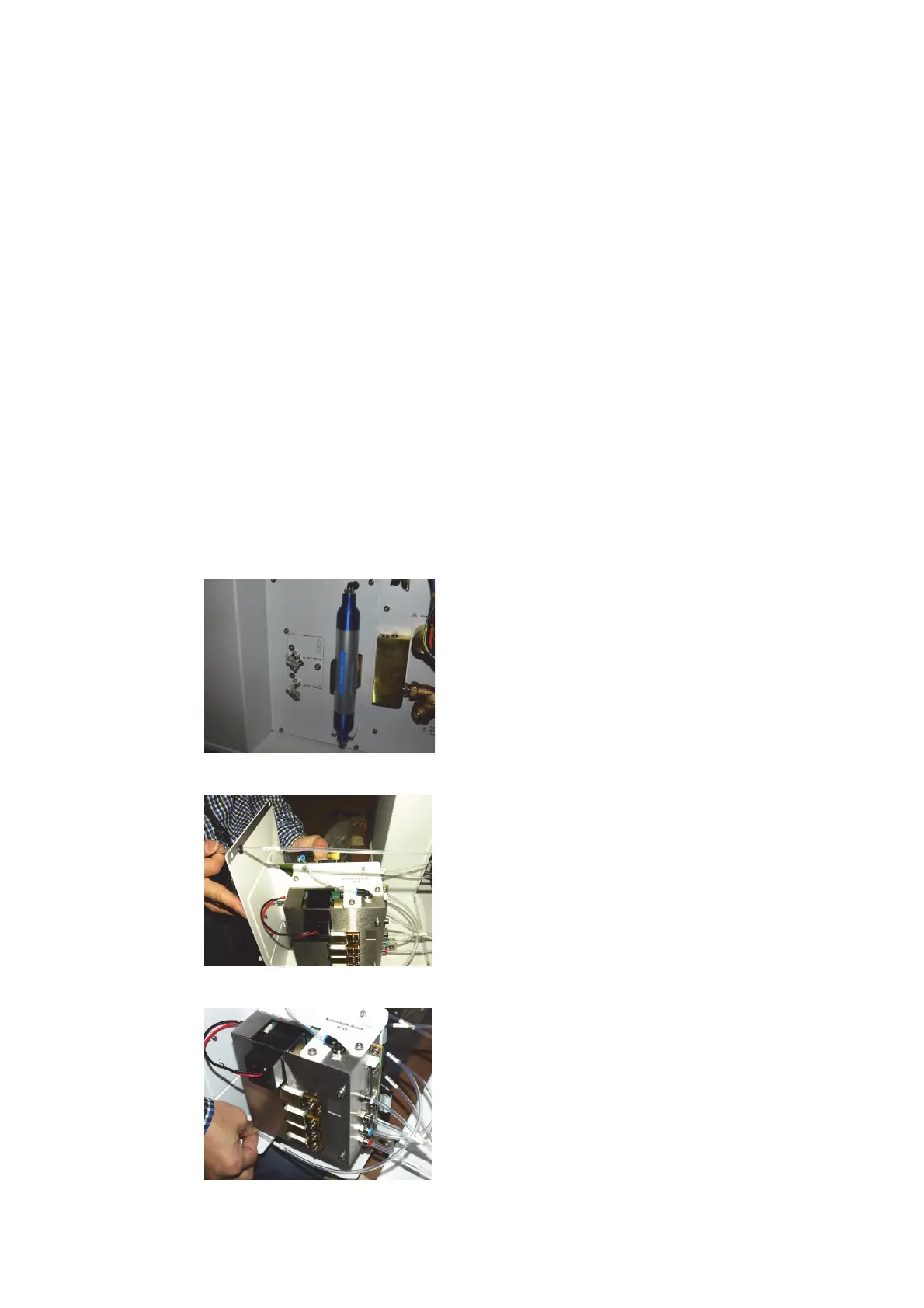

Gas control module
1 To remove this assembly switch off gas supply and disconnect from module.
2 Remove 4 torx securing screws and slide the module forward.
