174 Agilent Restricted Agilent 5110/5100 ICP-OES Service Manual
6 Customer Diagnostics and Problem Solving
Selecting Diagnostic Gauge Suites
Selecting Diagnostic Gauge Suites
Return to step 7
Diagnostic Gauges are available to monitor various instrument parameters. Many of these
parameters can be adjusted by the user without the need to call for Service assistance. If you
suspect a problem with the instrument use the gauges to check various instrument parameters.
If the gauge is in use the value should be in the Green band (Normal) or yellow band, (not ideal
but instrument will still function). Any values in the red band highlights a situation that needs
addressing.
Some values will be showing as “0” due to either not in use (i.e.: O
2
Option Gas) or Conditional,
i.e.: Plasma Gases and RF water Flow which won’t show in the green band until a plasma
ignition process has begun.

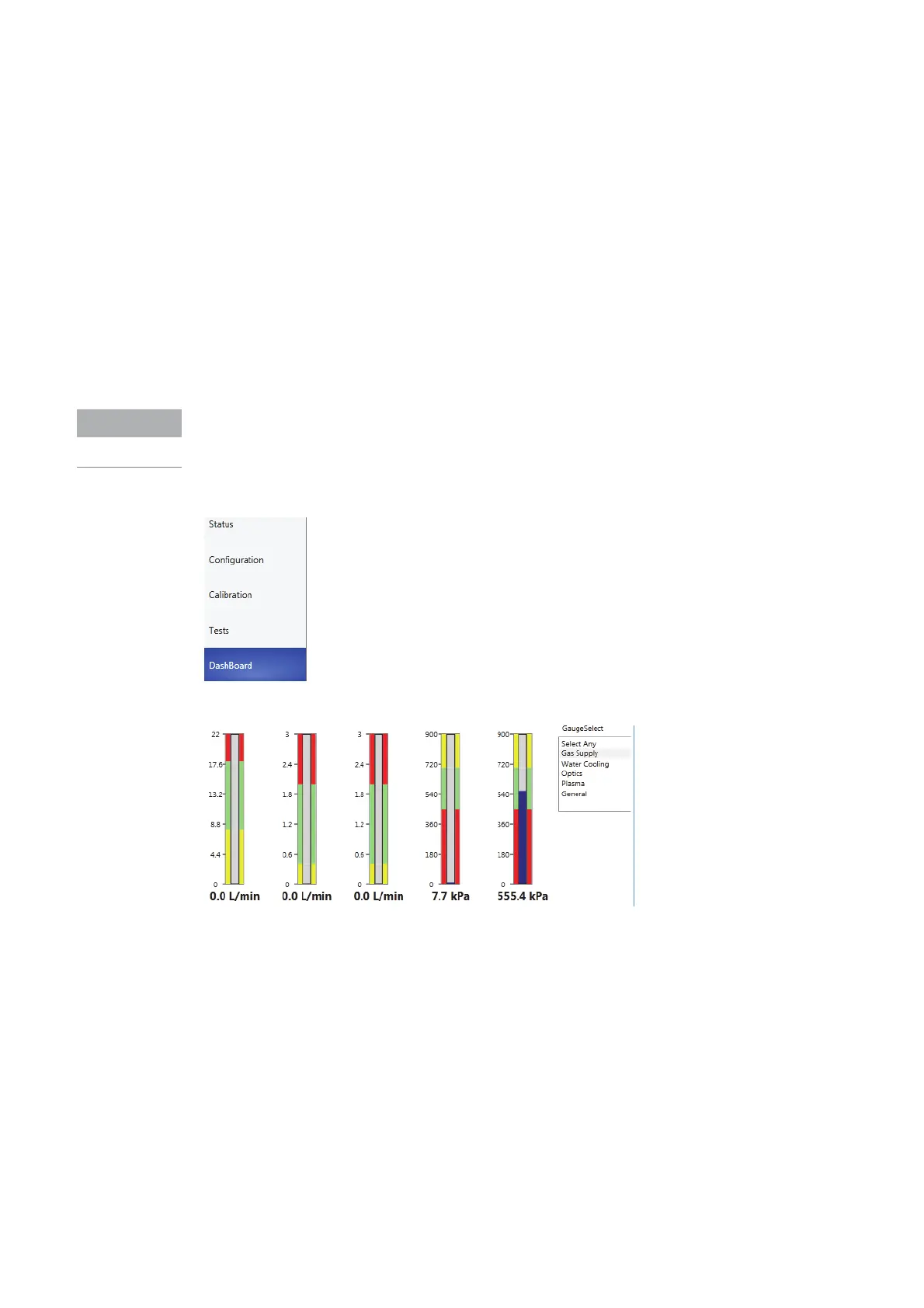

Go to “Dashboard” Page to view Gauges.
Click on “Gauge Select” to select a suite of gauges to monitor.
Section Contents:
Custom Gauges 175
Gas Supply Gauges 175
Water Cooling Gauges 176
Optics Gauges 177
Plasma Gauges 178
General Gauges 178
Other Gauges 179
Plotting Gauge Data on a Graph 179
Testing RF Water Flow 181
Purge Gas Flows Test 181
