Advanced Valve System (AVS)
Advanced Valve System (AVS)
The Advanced Valve System is an optional accessory available to increase speed of sample
throughput and reduce sample inject volume.
There are 3 types available, 4 port, 6 port and 7 port. All versions remove and install in the
following manner.

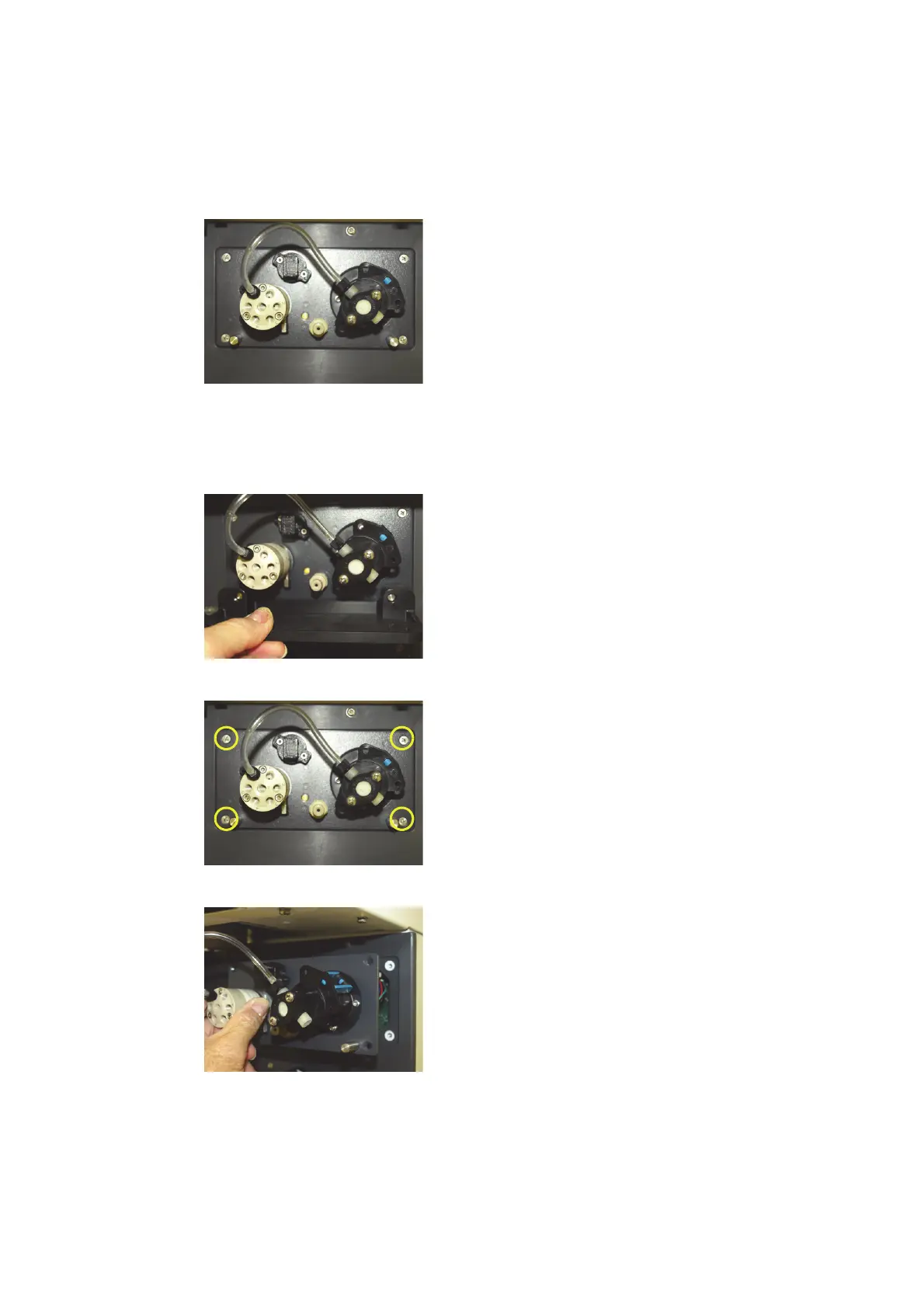

1 Pull tray forward to remove from locating pins.
2 Remove 4 Phillips head screws (2 point). Support assembly when removing 4
th
screw.
3 Slide assembly forward being careful not to catch the Argon bubble inject hose on the
instrument chassis.
