Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 119
4 Removal/ Installation, Replacement and Adjustment
Pre Optics System
3 Assemble replacement mirror in position ensuring that nut holding spring in place does not
over compress spring.
To ensure correct spring tension of the mirror on the kinematic mount the thickness of a piece
of paper should be able to be slid between at least one of the spring coils when nut is tightened
to correct tension. If this is not the case loosen off nut until gap is correct.
4 Using ICP Expert software develop a Manganese (Mn) method (refer Diagnostics section).
Ignite plasma, aspirate calibration solution, press “time scan” and align the vertical and
horizontal screws for maximum intensity. The focus screw should not need adjustment!

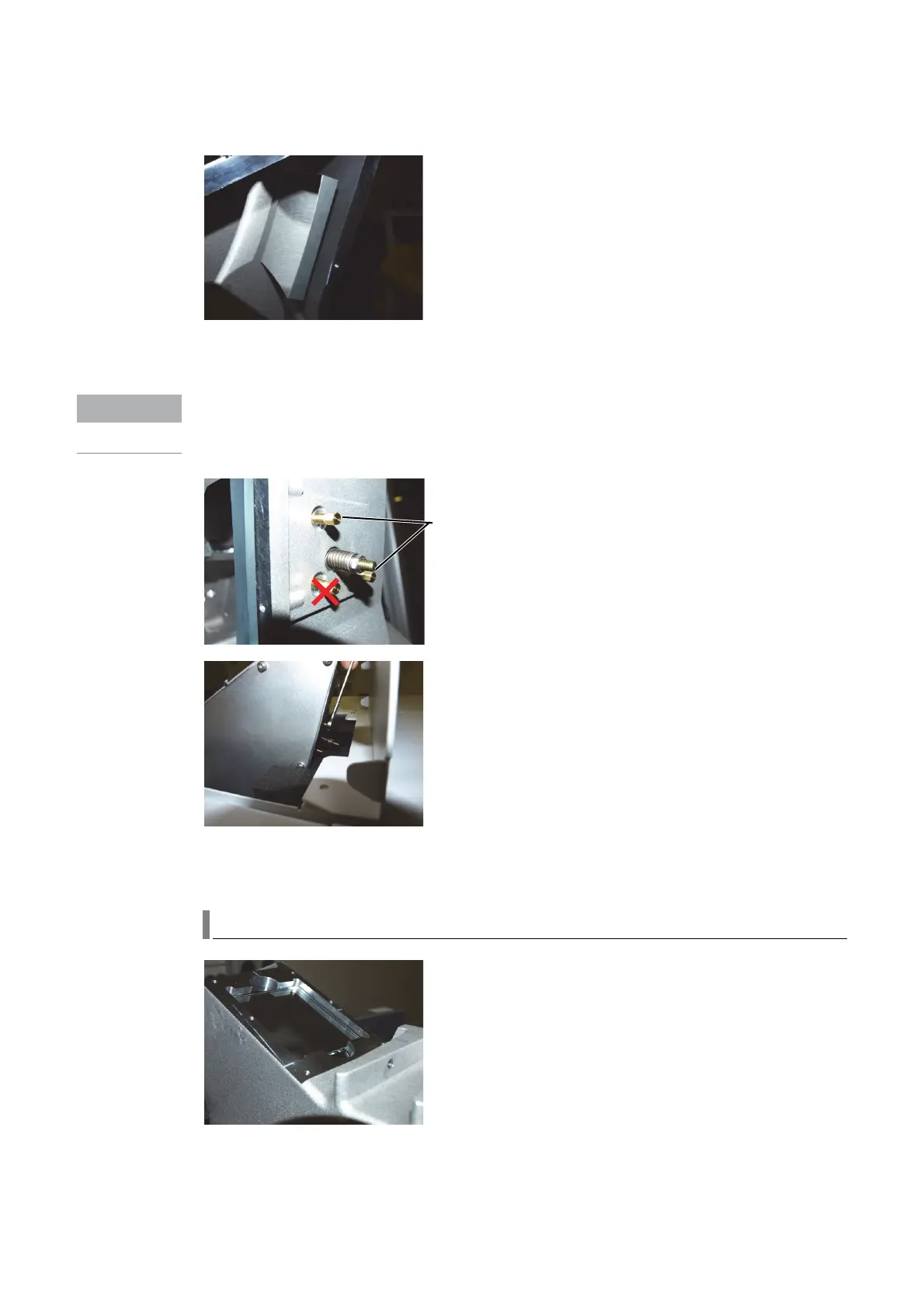

Mirror axial M3
Adjust these two
screws only!
