Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 71
4 Removal/ Installation, Replacement and Adjustment

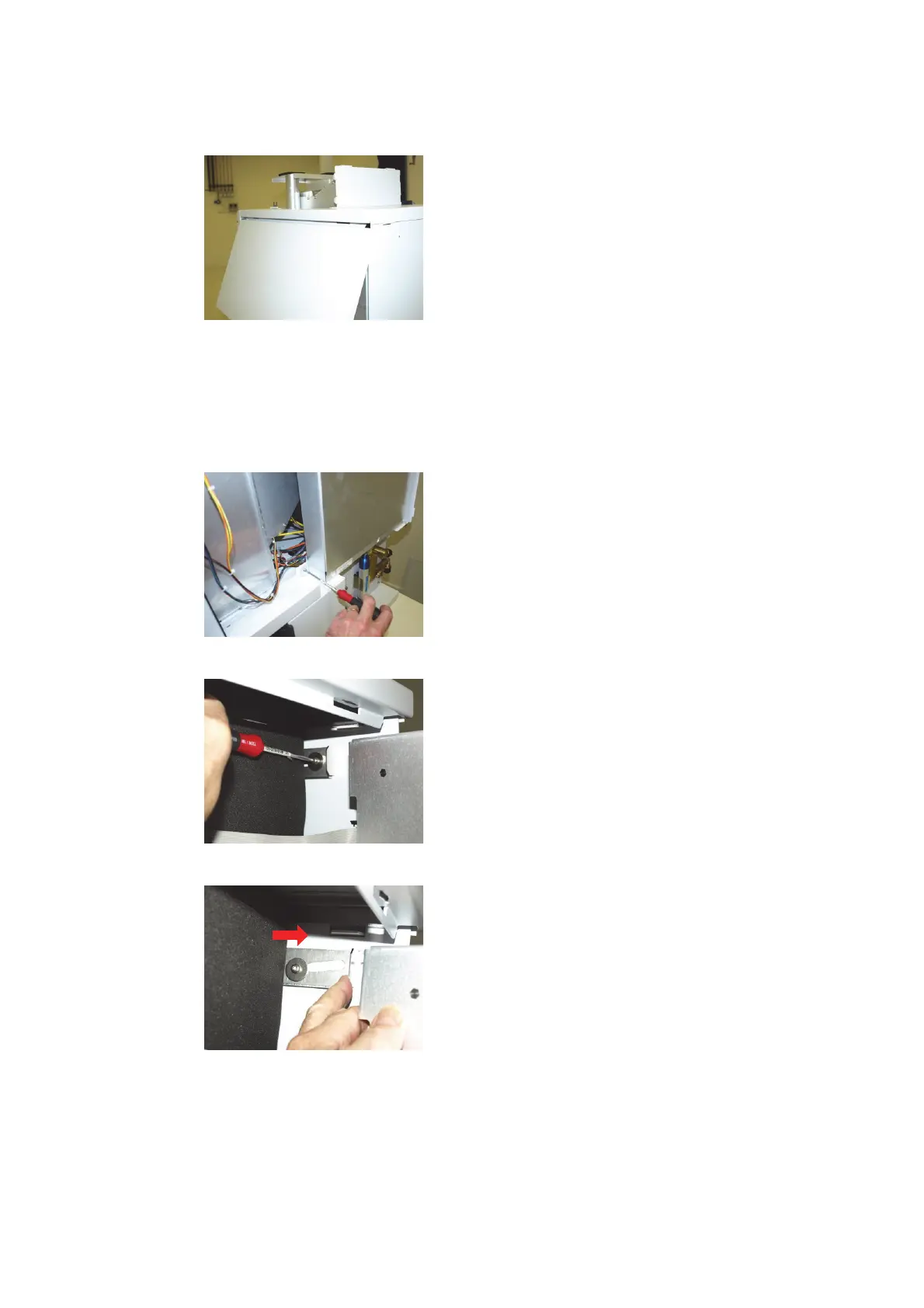

Top right hand cover
4 Slide cover out and pull down to release tabs.
Top right hand cover
1 Remove torx 20 control box screw and swing control box out.
2 Loosen cover locking mechanism torx 20 screw.
3 Pull locking mechanism out (to the right).
