Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 55
3 General Information
Camera assembly

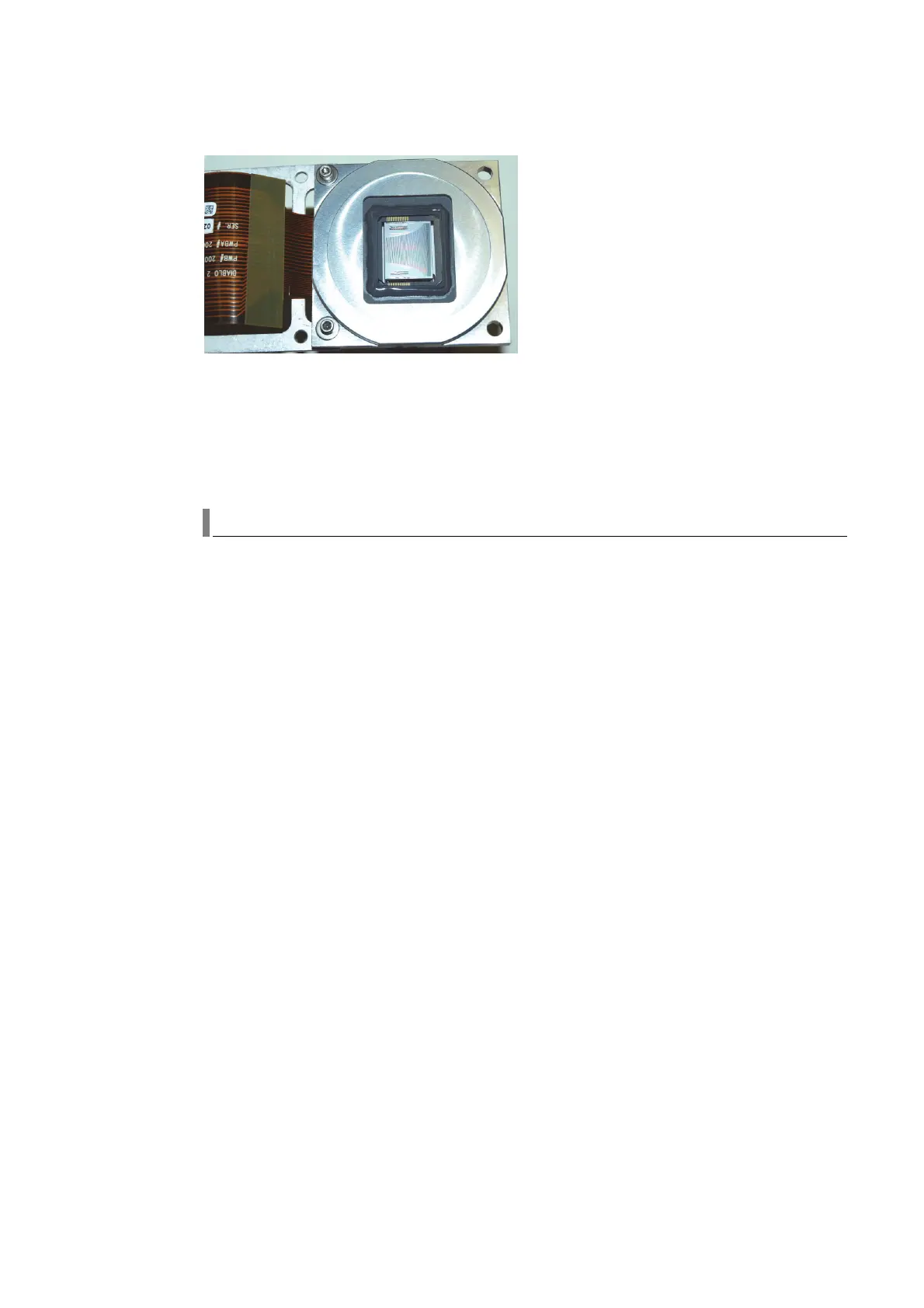

Figure 12. Agilent 5110 ICP-OES instrument camera assembly
The Agilent 5110 ICP-OES instrument camera assembly consists of:
• Charge Coupled Device (CCD)
• Camera bus and bias resistors
• Water cooled peltier with temperature sensor
CCD layout
The CCD is 20 mm wide by 15 mm high. It is masked to present pixel arrays in positions along
the focal plane of the cross-dispersed spectrum of the Agilent ICP-OES echelle polychromator.
The resulting arrays are diagonal lines, skewed across the width of the detector at varying
spaces.
