Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 91
4 Removal/ Installation, Replacement and Adjustment
RF Oscillator

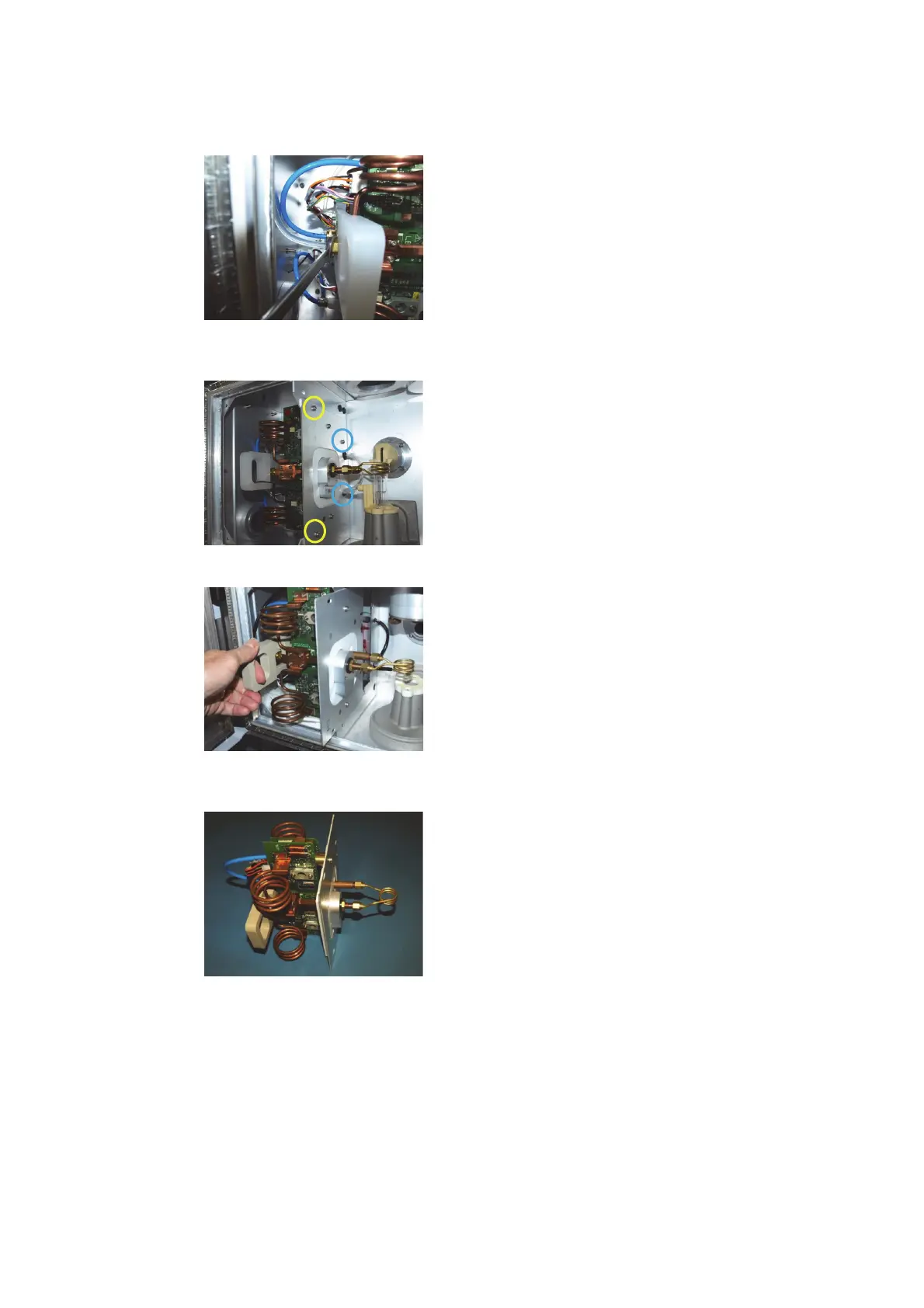

6 Using open ended wrench disconnect clear water hose only from assembly body. Ensure
water drips onto paper towel and not into assembly.
7 Loosen 2 rear torx 20 screws in slots (blue) and remove 2 front torx 20 screws (yellow).
8 Pull on handle to disengage plug from socket and carefully remove module from RF box
assembly.
9 Remove coil as described in operation manual and replace RF oscillator with the following
sequence.
