5 General Maintenance

5975/5977 Series MSD Operating Manual 131

2 Insert the extractor ceramic insulator into the source body.

3 Insert the lens stack encased in the insulator into the source body. (See

Figure 41 on page 133.) The engraved numbers face the full opening

extending to the end of the source body. Verify that the ceramic is sitting

flush at the end of the source body.

4 Using the T6 Torx driver, install and secure the gold plated setscrew and lock

ring lens insulator that holds the lens assembly in place.

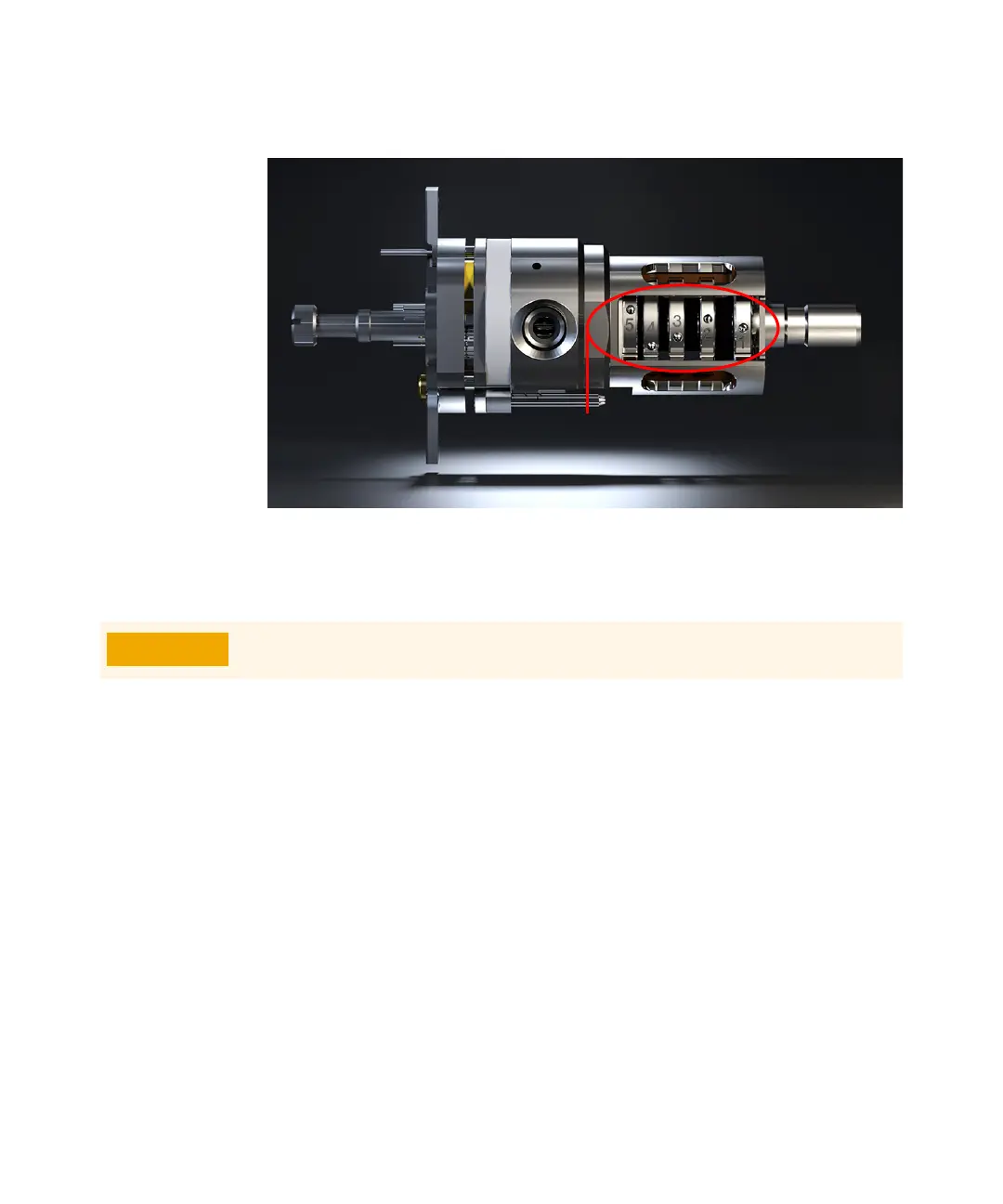

Figure 39. Assembled EI HES

Align as shown

CAUTION

The ceramic insulator must be positioned flat against the source body when

inserting the lens stack in the next step.
