5 General Maintenance

5975/5977 Series MSD Operating Manual 133

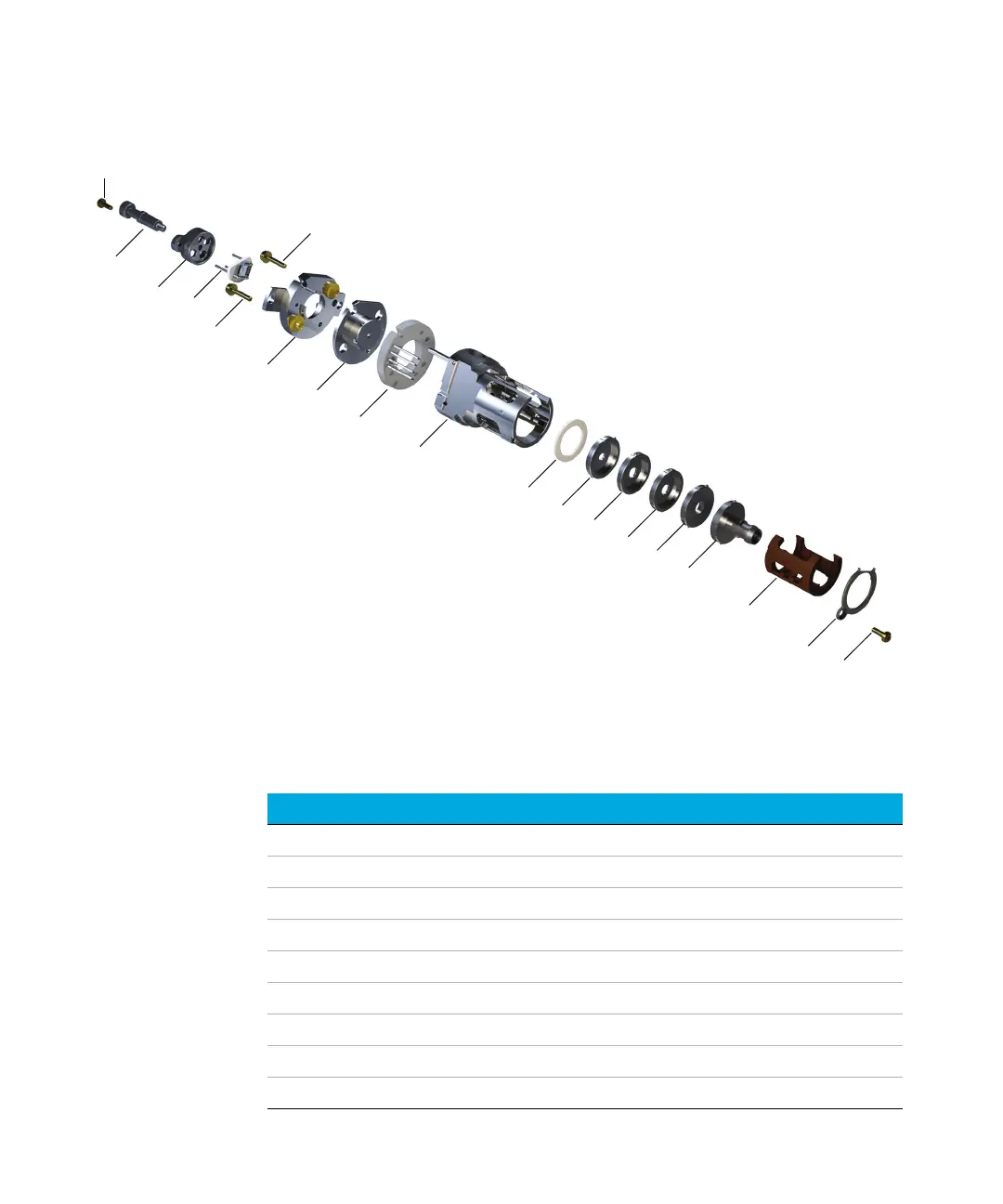

Figure 41. Assembling the EI HES

Table 17 Parts list for EI HES (Figure 41)

Item number Item description Part number

1 Source finger grip G7002-20008

2 Filament block G7002-20019

3 Extractor lens (5)*, with 3 mm opening G7002-20061

4 Ceramic insulator for extractor G7002-20064

5 Entrance lens assembly, Extended, HES (1)* G7002-20165

6 Ion focus lens (2)* G7002-20068

7 Lens insulator/holder G7002-20074

8 M2 x 0.4 screw x 12 mm long gold plated screw G7002-20083

9 Source body G7002-20084
