5 General Maintenance

142 5975/5977 Series MSD Operating Manual

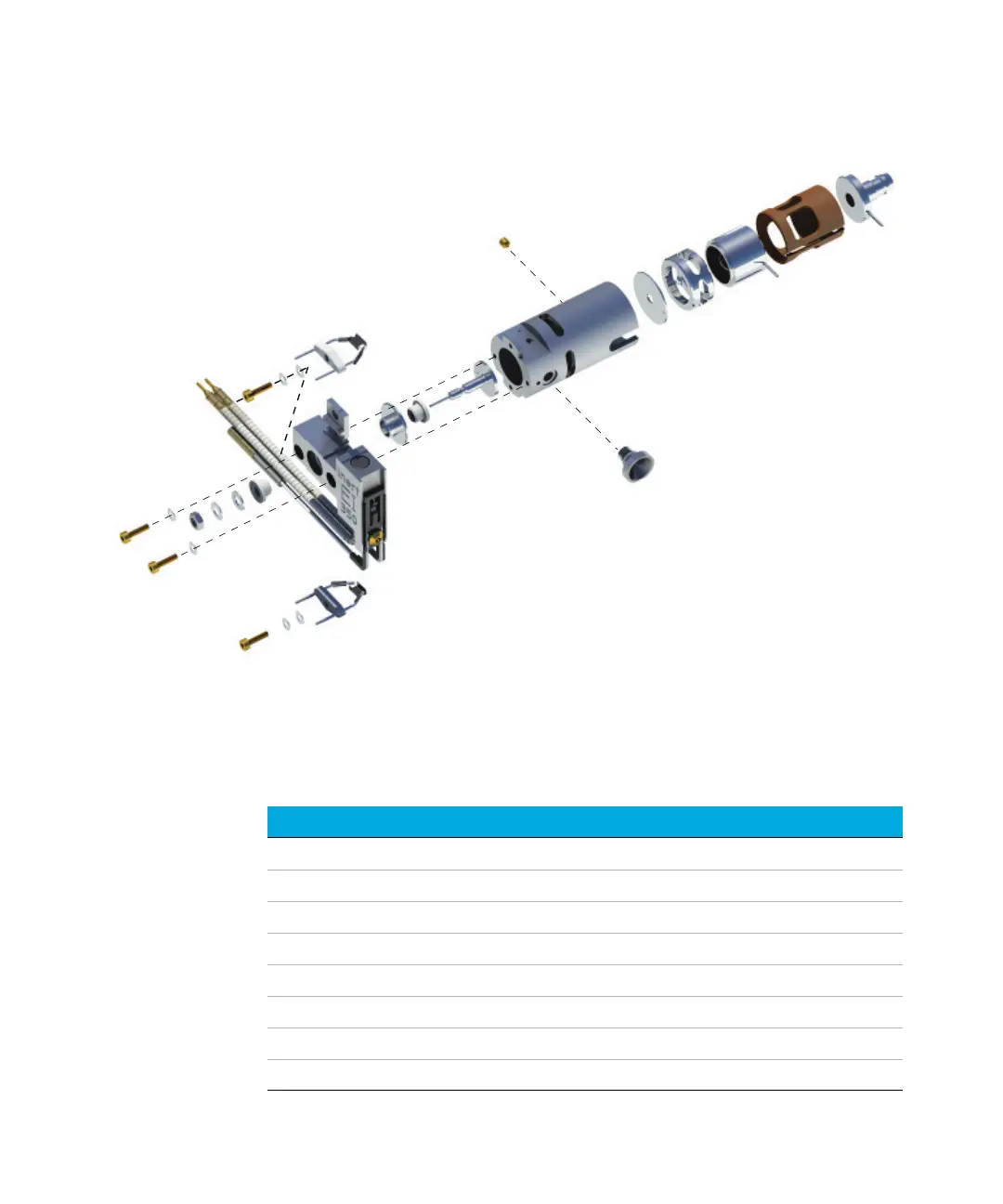

Figure 44. Disassembling the EI SS or Inert source

151515

1414

1616

12*

12*12*

Table 18 Parts list for the EI SS or Inert source (Figure 44)

Item number Item description Part number (SS) Part number (Inert)

1 Gold plated set screw G1999-20022 G1999-20022

2 Gold plated screw G3870-20021 G3870-20021

3 Interface socket G1099-20136 G1099-20136

4 Source body G1099-20130 G2589-20043

5 Drawout cylinder G1072-20008 G1072-20008

6 Drawout plate 05971-20134 G2589-20100

7 4-turn filament G7005-60061 G7005-60061

8 Spring washer 3050-1374 3050-1374

Hardware User Information4
- 5977B Msd4
- 5975/5977 Series MSD Prior to the 5977B MSD4
