2 Installing 7890/7820/6890/6850 GC Columns

38 5975/5977 Series MSD Operating Manual

10 Adjust the column so it extends this specified distance from the end of the

transfer line. 



For an EI XTR, SS, or Inert Source Installation (See Figure 5.), the column

extends about 1 mm.



For an EI HES Installation (See Figure 6.), the column extends 4 to 5 mm.



Use the flashlight and magnifying loupe, if necessary, to see the end of the

column inside the analyzer chamber. Do not use your finger to feel for the

column end.

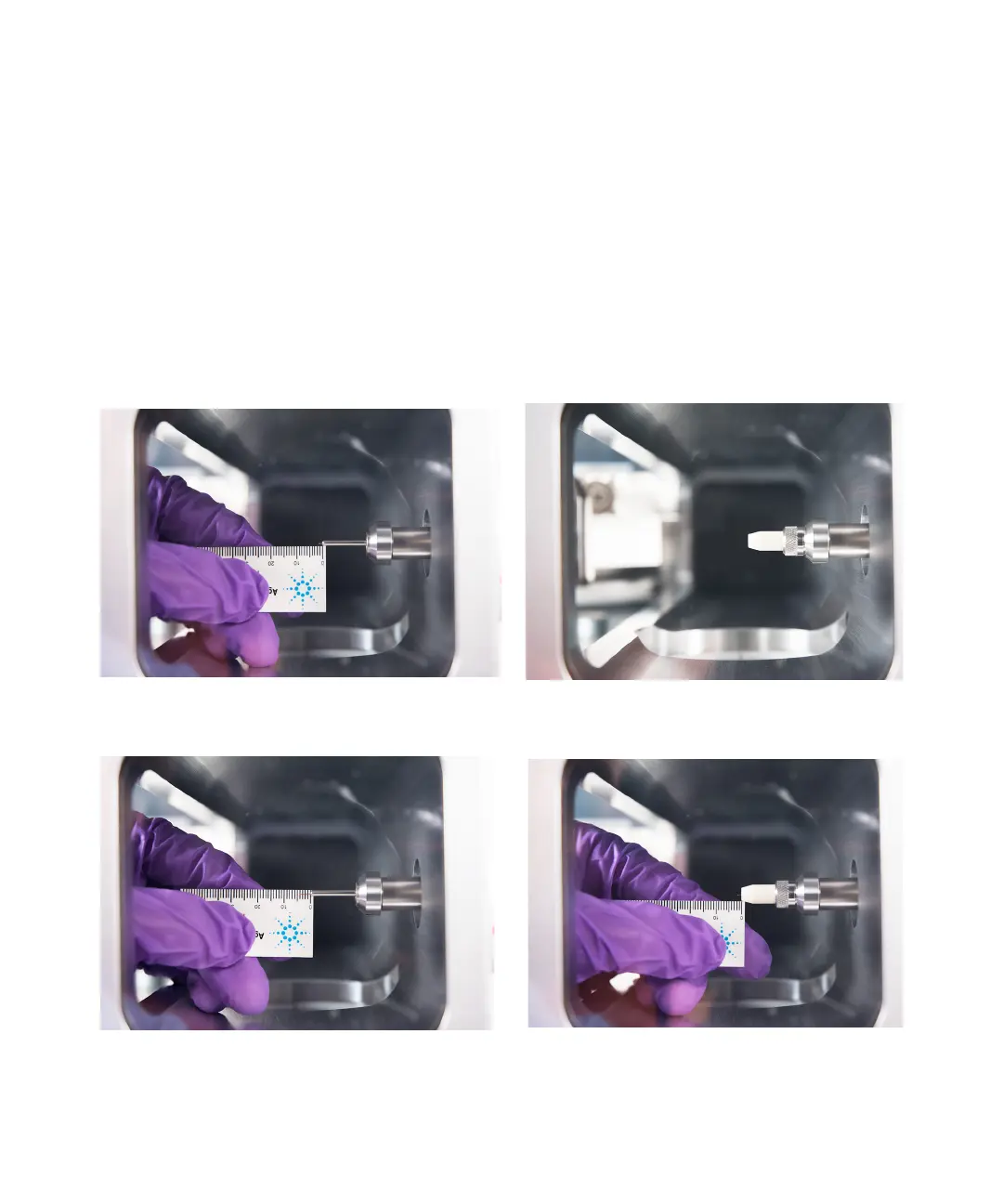

Figure 5. Installing a capillary column in the GC/MS interface for an EI EXT, SS, or Inert source.

Figure 6. Installing a capillary column in the GC/MS interface for an EI HES source.
