Agilent Technologies 8860 Installation And First Startup

B Cabling Diagrams and Remote Start/Stop
Installation and First Startup 73

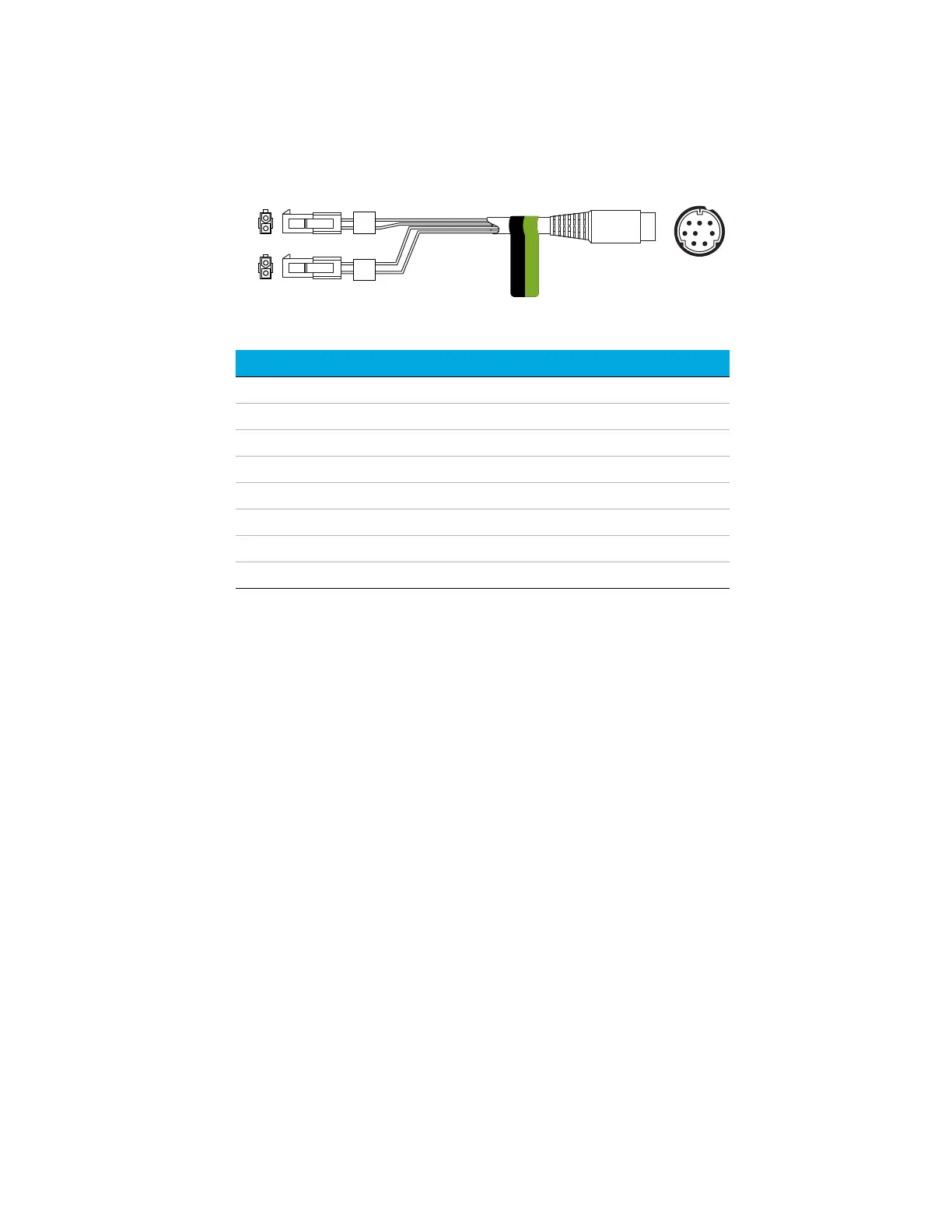

External valve cable, G1580-60710
Supplies power for certain valve applications.
Pulser module power supply cable, G1580-60730
Supplies power for a PDHID pulser module.
Connector 1 pin Wire color Connector and pin Function
1 Yellow V5 pin 1 24 V, 150 mA max.
2 Black V6 pin 1 24 V, 150 mA max.
3 Red V5 pin 2 Ground
4 White V6 pin 2 Ground
5
6
7
8
2
8
1
6
2
1
2
1
EVENT
CAUTION: DO NOT PLUG INTO THE BCD PORT.
V5
V6
