Agilent N5181A/82A MXG Signal Generators User’s Guide 95
Basic Digital Operation (Option 651/652/654)
Using Waveform Markers
Controlling Markers in a Waveform Sequence
In a waveform segment, an enabled marker point generates an auxiliary output signal that is routed
to the rear- panel EVENT output (described in “Rear Panel Overview” on page 9) corresponding to
that marker number. For a waveform sequence, you enable or disable markers on a
segment- by- segment basis; this enables you to output markers for some segments in a sequence, but
not for others. Unless you change the sequence marker settings or cycle the power, the marker setting
for the last segment edited in the sequence applies to all segments in the next sequence that you
build. For information on building a waveform sequence, see “Creating a Sequence” on page 75.

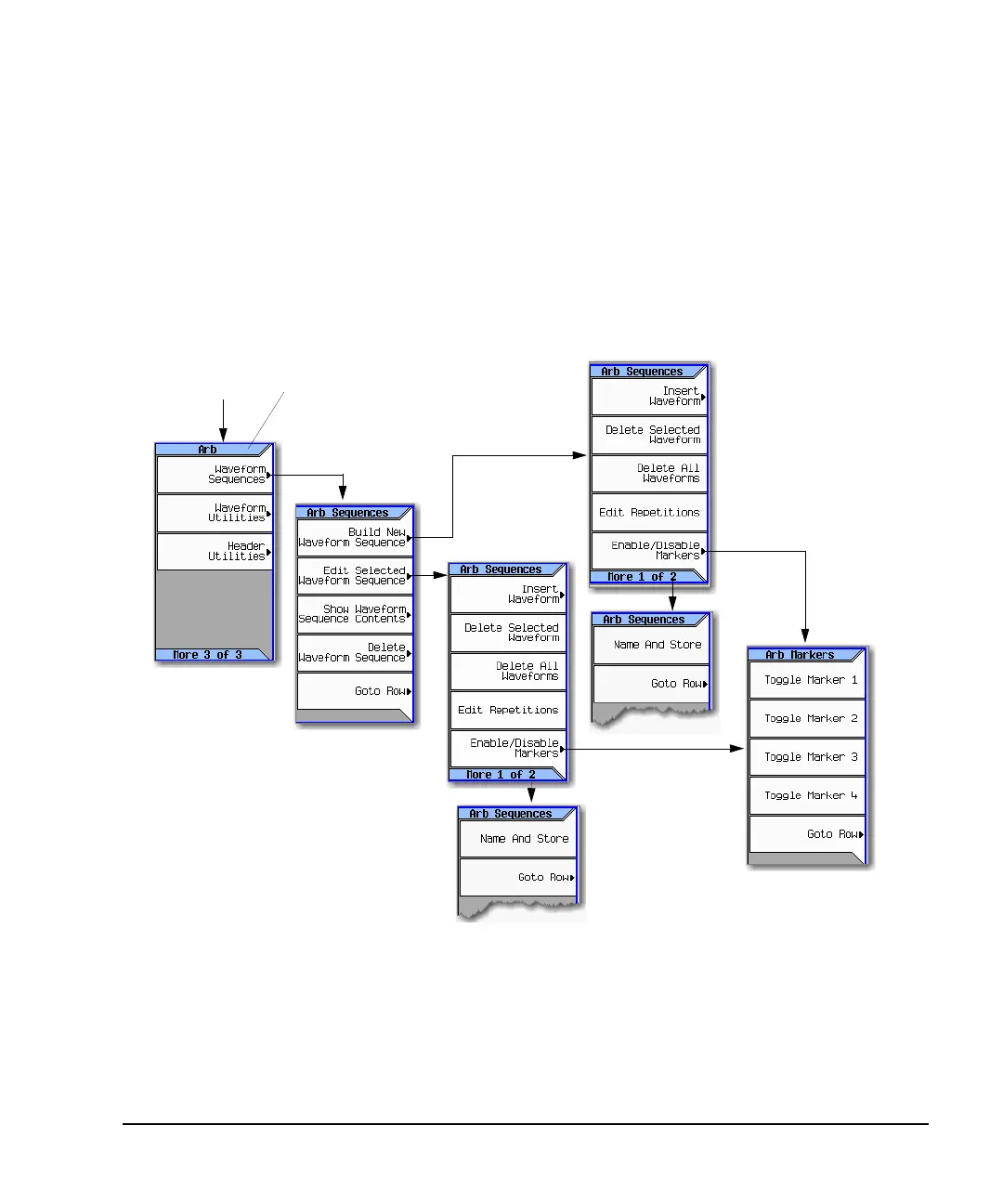

Figure 8-7 Waveform Sequence Menus for Enabling/Disabling Segment Markers
Mode > Dual ARB >
More > More >
Note: This is the
third Arb menu.
For details on each key, use key help
as described on page 23.
Enable/Disable markers while
creating a waveform sequence
Edit a sequence to
enable/disable markers
To Next Page
