Basic Digital Operation (Option 651/652/654)
Waveform Sequences
Waveform Sequences

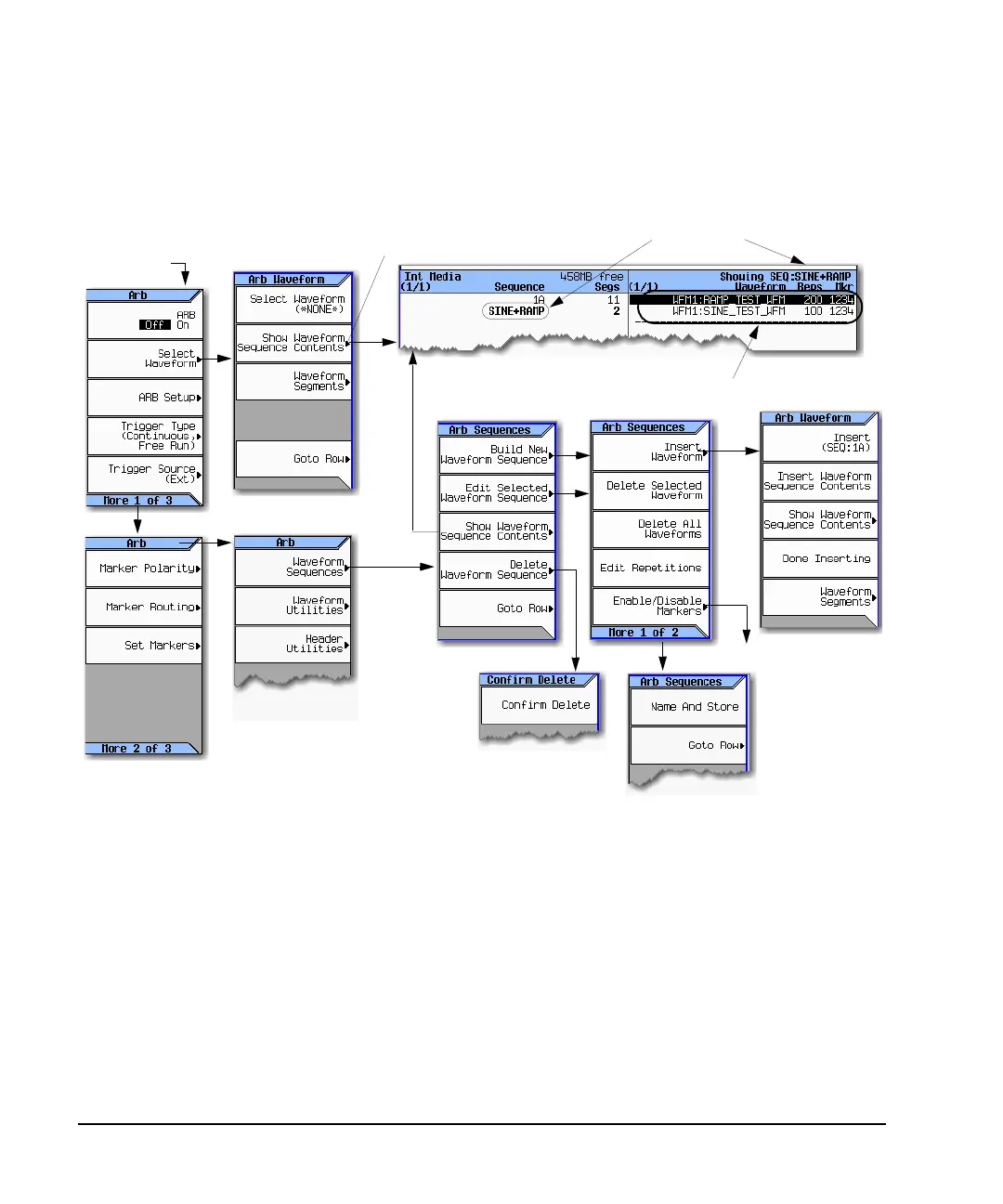

Figure 8-4 Waveform Sequence Softkeys
A waveform sequence is a file that contains pointers to one or more waveform segments or other
waveform sequences, or both. This lets the signal generator play multiple waveform segments, or
other sequences, or both thereby eliminating the need to stop waveform playback just to select
another waveform.
The segments that a waveform sequence points to are not automatically stored when you store the
sequence; you must also store the individual segments or they are lost when you turn off or reboot
the signal generator. If the segments are located in internal/external media, you must load them into
BBG media prior to selecting a waveform sequence. If you attempt to play a sequence without the
segments loaded into BBG media, the signal generator reports: ERROR: 629, File format invalid.
If this happens and the segments are not stored in internal/external media, you must recreate the
segments using the same file names that the sequence points to before you can play the sequence.
For details on each key, use key help
as described on page 23.
Mode >
Dual ARB >
Sequence name
Sequence contents
see page 95
To display this softkey, highlight a waveform sequence
To Next Page
