70 Agilent N5181A/82A MXG Signal Generators User’s Guide
Basic Digital Operation (Option 651/652/654)
Storing, Loading, and Playing a Waveform Segment
Storing, Loading, and Playing a Waveform Segment
See also, Viewing, Saving, and Recalling Data on page 35.

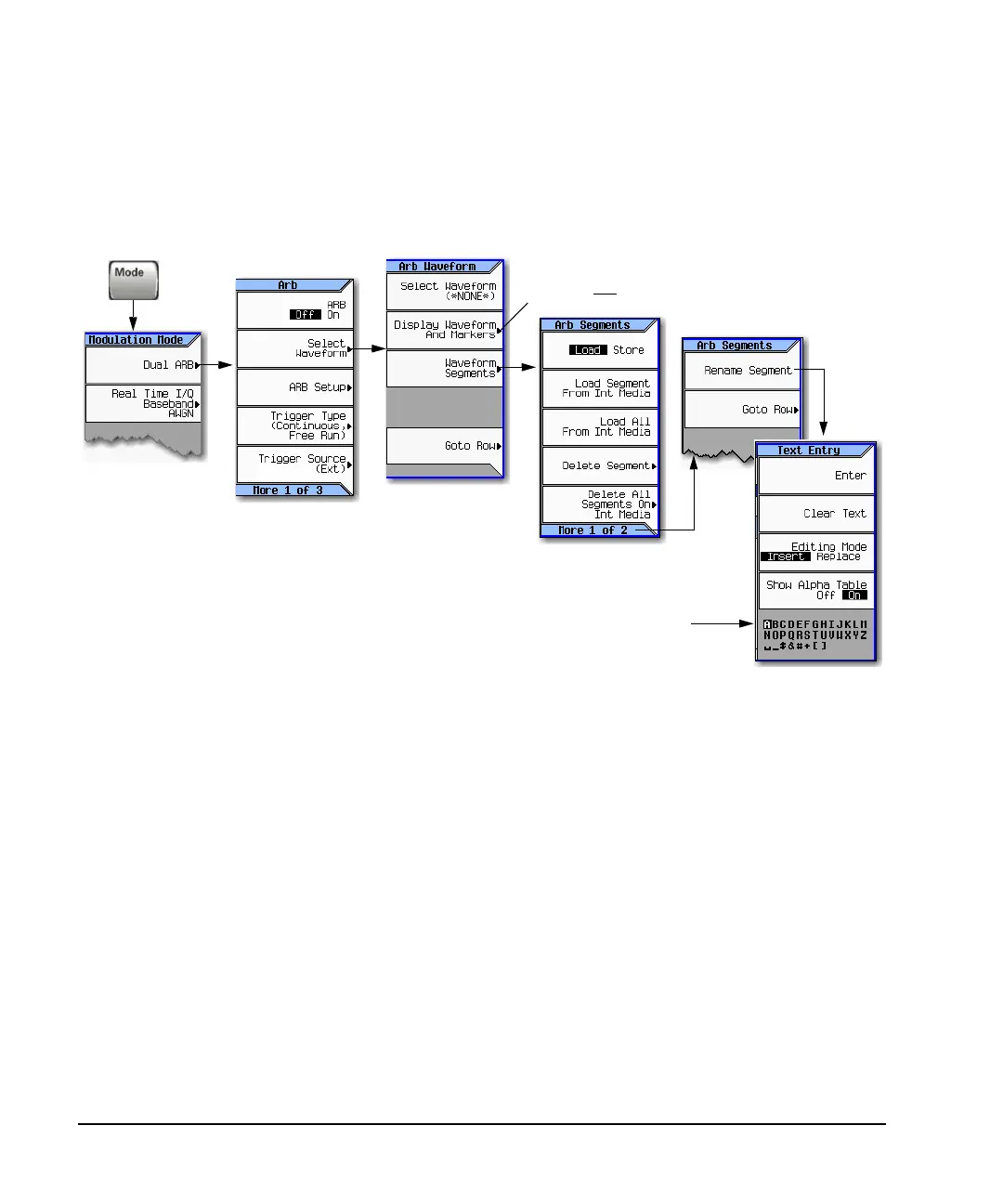

Figure 8-2 Waveform Segment Softkeys
Storing/Renaming a Waveform Segment to Non-Volatile Memory (Internal or External Media)
Use the following steps to store a copy of a file in BBG memory to the currently selected media
(page 41). If you have not downloaded a waveform segment, either refer to the Programming Guide,
or use one of the factory- supplied segments.
1. Press Mode > Dual ARB > Select Waveform > Waveform Segments.
2. In the Segment On BBG Media column, highlight any waveform segment.
3. Press Load Store to highlight Store.
4. Highlight the waveform segment you want to store.
5. Optionally rename the segment.
If there is already a copy of this segment in the currently selected media and you do not want to
overwrite it, rename the waveform segment before you store it:
a. Press More > Rename Segment > Clear Text.
b. Enter a name for the waveform segment.
c. Press Enter > More.
d. Highlight the waveform segment that was renamed.
6. Press Store Segment to currently selected Media.
See page 82
or details on each key, use key help
s described on page 23.
Note: When a sequence is highlighted, this key name
changes to Show Waveform Sequence Contents.
Use the arrow keys or knob to
highlight a letter or character
