This section describes how to edit and save a file header. When you download only a waveform file
(I/Q data, which the signal generator treats as a waveform segment), the signal generator
automatically generates a file header and a marker file with the same name as the waveform file.
Initially the file header has no signal generator settings saved to it, and the marker file consists of all
zeros. For a given waveform, you can save signal generator settings and parameters in its file header
and marker settings in its marker file (page 82); when you load a stored waveform file into BBG
media, the file header and marker file settings automatically apply to the signal generator so that the
dual ARB player sets up the same way each time the waveform file plays.

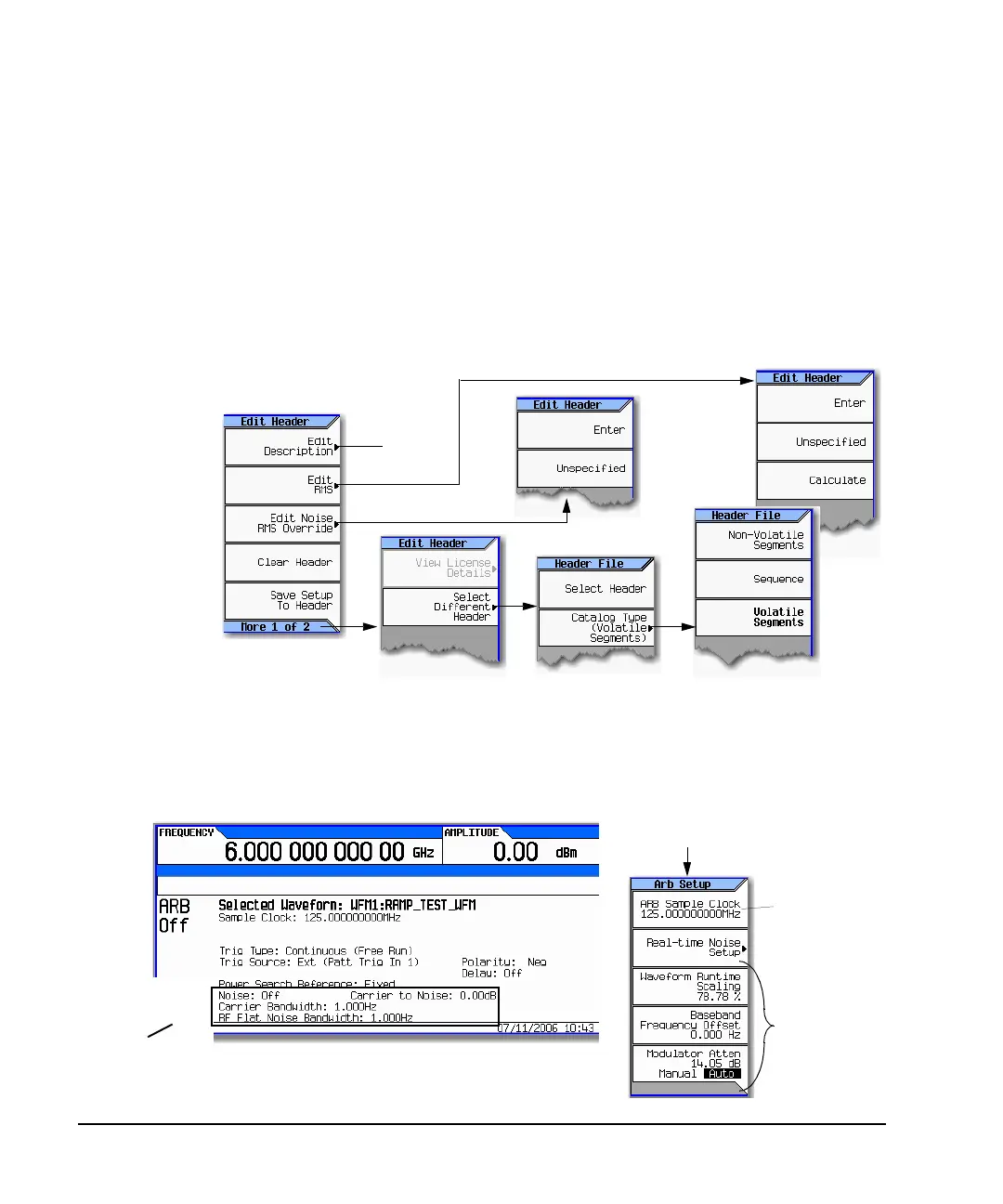

Figure 8-5 Header Utilities Softkeys
When you create a waveform sequence (as described on page 75), the signal generator automatically
creates a waveform sequence header that takes priority over the individual waveform segment
headers. During a waveform sequence playback, the segment headers are ignored, except to verify
that all required options are installed. Storing a waveform sequence also stores its file header.
Some of the current signal generator settings shown in the file header, appear as part of the softkey
labels and others appear in the dual ARB summary display, shown in the following example.
See page 79
ode > Dual ARB >
ore > More >
eader Utilities >
For details on each key,
use key help
as described on page 23.
ARB summary, file
header settings
Softkey labels,
file header
settings
Softkey label,
file header
setting
All settings in this menu
can be stored to the file
header.
