163
Settings and Adjustments
Configuring the device on a PC
4
Setting window
When accessing the web server of the station, the following setting window will appear. The station can be configured
in this window.
• Depending on PC and OS being used, the window may be slightly different.
• After configuring the station, confirm its operation by referring to "Operation Manual (this document)."

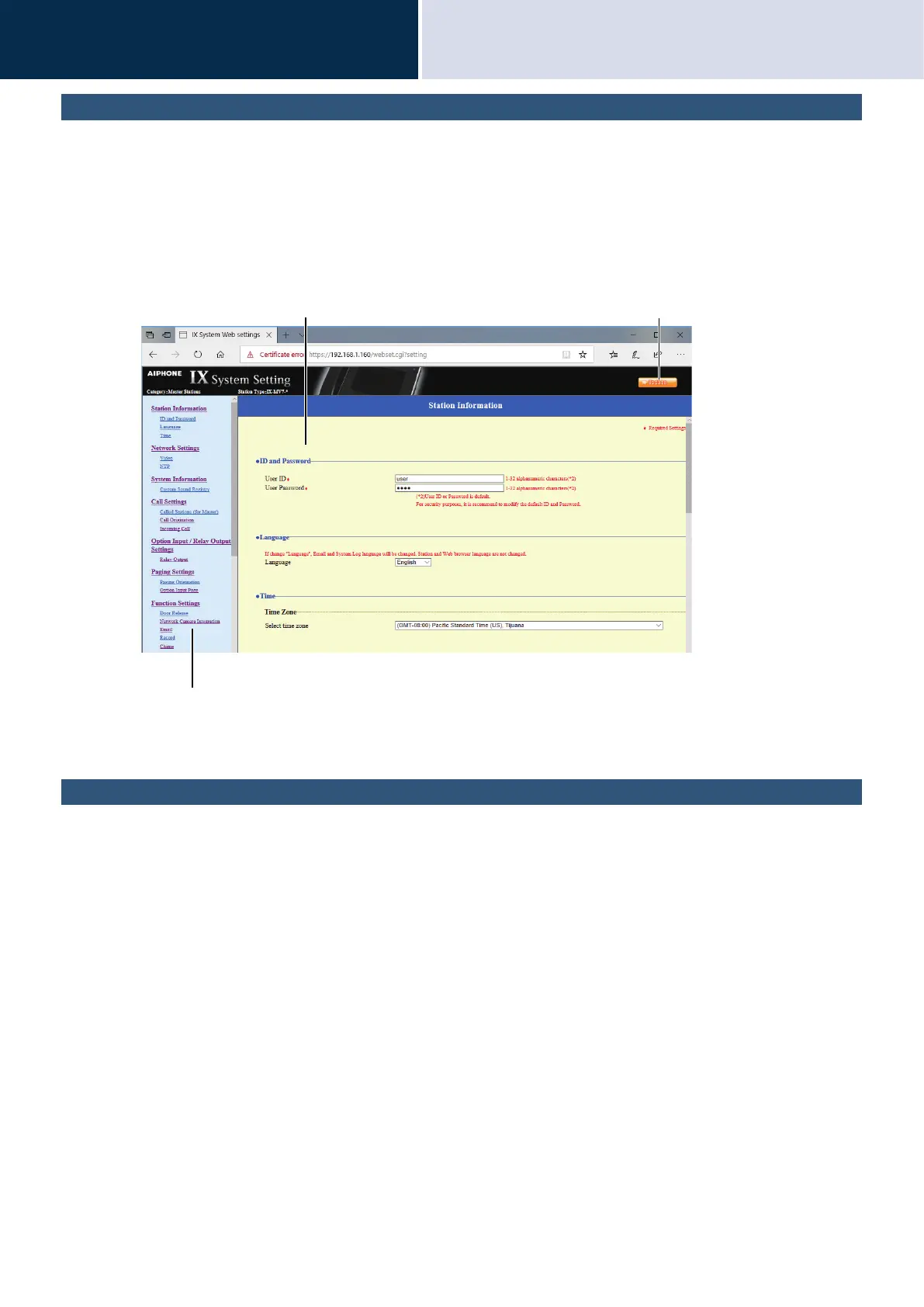

<Settings screen example>
How to configure
1. Click the title you want to configure in the setting menu
• The setting window for that particular title will be shown.
2. Configure each setting item
3. When you are done making changes, click [Update] to update the settings
• When the settings are updated, [Settings updated.] will be shown at the top left corner in the Settings
screen.
• If the update fails, an error message will be shown.
• To cancel the changes, click another title in the setting menu.
• Do not turn the power off while updating.
4. Repeat the steps 1 through 3 for other titles
• To log out of the Web server, click [Log out] in the settings menu.
Setting window:
This indicates the setting window of the title selected.
Update button
Click this button to update the station settings.
Setting menu:
Shows all items that can be configured. Click the title to be configured and
appropriate setting window will display.
