AIRTRONICS MT-S - Transmitter Battery Options

11
TR
MT- S
2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
Telemetry System with Sanwa Synchronized Link Support
The MT-S transmitter has a Nominal Input Voltage range of 4.8 to 7.4 volts and an Operating Voltage Range of 4.0 to 9.6 volts.
This allows you to use several different battery types, depending on your preference. Use the information below to determine
what type of battery to use.
Alkaline - In the default configuration, the transmitter is designed to be powered using four 'AA' Alkaline batteries. This results
in a transmitter that is lightweight and well-balanced for unmatched comfort. Install the four 'AA' Alkaline batteries into the
battery holder included.
NiMH - Rechargeable NiMH batteries of desired capacity can be used in place of the Alkaline batteries. Using rechargeable
NiMH batteries is more convenient and cheaper in the long run. The higher capacity batteries will also provide longer usage
time than most Alkaline batteries. Install the four NiMH batteries into the battery holder included.
LiPo or LiFe - A 2-cell LiPo or LiFe battery pack can be used to power the transmitter. These battery packs are popular due
to their light weight and high capacity for long usage time between charges. Remove the battery holder first, then install the
LiPo or LiFe battery pack.
Transmitter power output, range and speed are the same, regardless of the battery type used. If using a LiPo or LiFe
battery pack, please read the Warnings if Using a LiPo or LiFe Battery Pack section below.
2) Install four fresh 'AA' Alkaline batteries into the battery holder, making sure that the polarity is correct. The direction that each
battery should be installed is molded into the bottom of the battery holder (+ Positive and - Negative).
3) Reinstall the battery holder into the transmitter, making sure that the batteries toward bottom of the transmitter (so the
smooth bottom of the battery holder will be toward the battery cover). This will prevent the battery cover from hitting or
catching on the batteries when you reinstall it.
4) Slide the battery cover back onto the transmitter and push it firmly until it 'clicks' closed.
TRANSMITTER BATTERY OPTIONS
GENERAL
ALKALINE BATTERY INSTALLATION
GENERAL

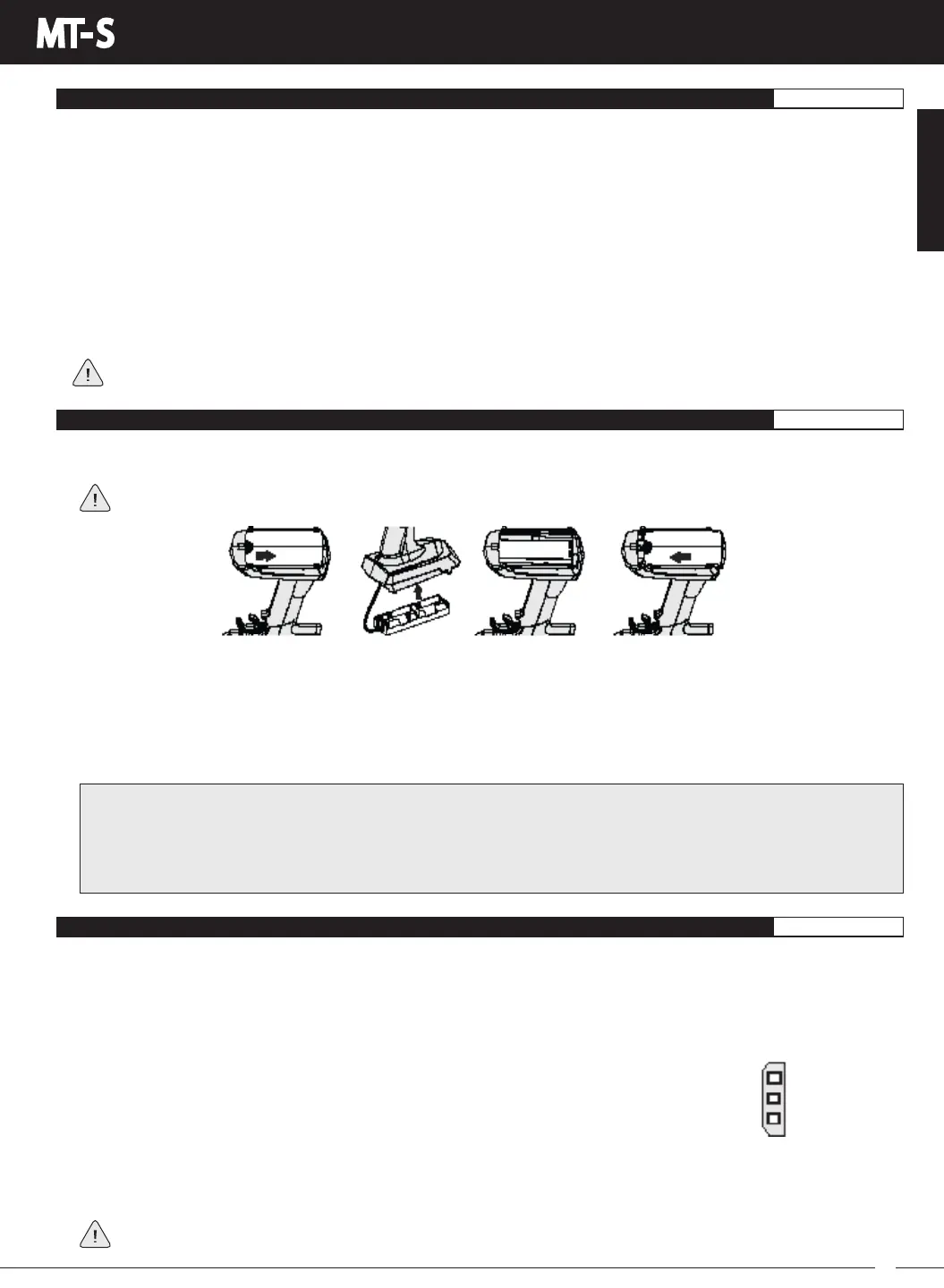

1) Remove the battery cover from the bottom of the transmitter by pushing firmly on the battery cover in the direction of the arrow
and sliding it off.
Remove the battery holder and double-check that the battery holder is plugged in. If it isn't, plug the connector on the
battery holder into the matching connector in the transmitter.
• UseONLYa2-CellLiPoorLiFebatterypackofdesiredcapacity.
• TheMT-Stransmitterdoesnotfeatureachargejack.Forthesafetyofboththebatterypackandthetransmitteritself,the
battery pack must be removed from the transmitter during the charging process.
• UseabalancechargerspecificallydesignedtochargeLiPoorLiFebatterypacks.Chargethebattery pack inanopen
area free of any obstructions.
• Whenchangingtheconnectoronyourbatterypacktomatchthebatteryconnectorinthetransmitter,
please observe correct polarity. Connecting with reverse polarity will damage the transmitter.
• ObserveallsafetyprecautionsprovidedwithyourLiPoorLiFebatterypack.
•Donotleavethebatterypackunattendedduringthechargingprocess.
• Ifthebatterypackappearsswollenorotherwisedamaged,donotuseitorchargeit.Itshouldbediscardedandreplaced.
• Damageto thetransmittercausedby improperuse,wrong batterytype,incorrectvoltage orreversepolarity will notbe
covered under warranty!
The transmitter has a Nominal Input Voltage range of 4.8 to 7.4 volts. DO NOT USE A 3-CELL LiPo or LiFe battery pack
or the transmitter will be damaged! Use a 2-Cell LiPo or LiFe battery pack only!
- = Negative (Black)
+
= Positive (Red)
WARNINGS IF USING A LIPO OR LIFE BATTERY PACK
GENERAL
IMPORTANT:You must change the transmitter battery Low Voltage Alert and Low Voltage Limit alarms to match the
battery type you're using or else you may receive erroneous low voltage alarms during use, or worse run your battery
downsolowastodamageit.Formoreinformation,seetheBATTERYMenusectiononpages60through62.
Yourbatterypackmustnotexceed9.6voltswhenfullychargedorthetransmitterOverVoltagealarmwillsoundwhen
the transmitter is turned ON.
GENERAL
