2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
Telemetry System with Sanwa Synchronized Link Support
Section Continued on Next Page
REFERENCE

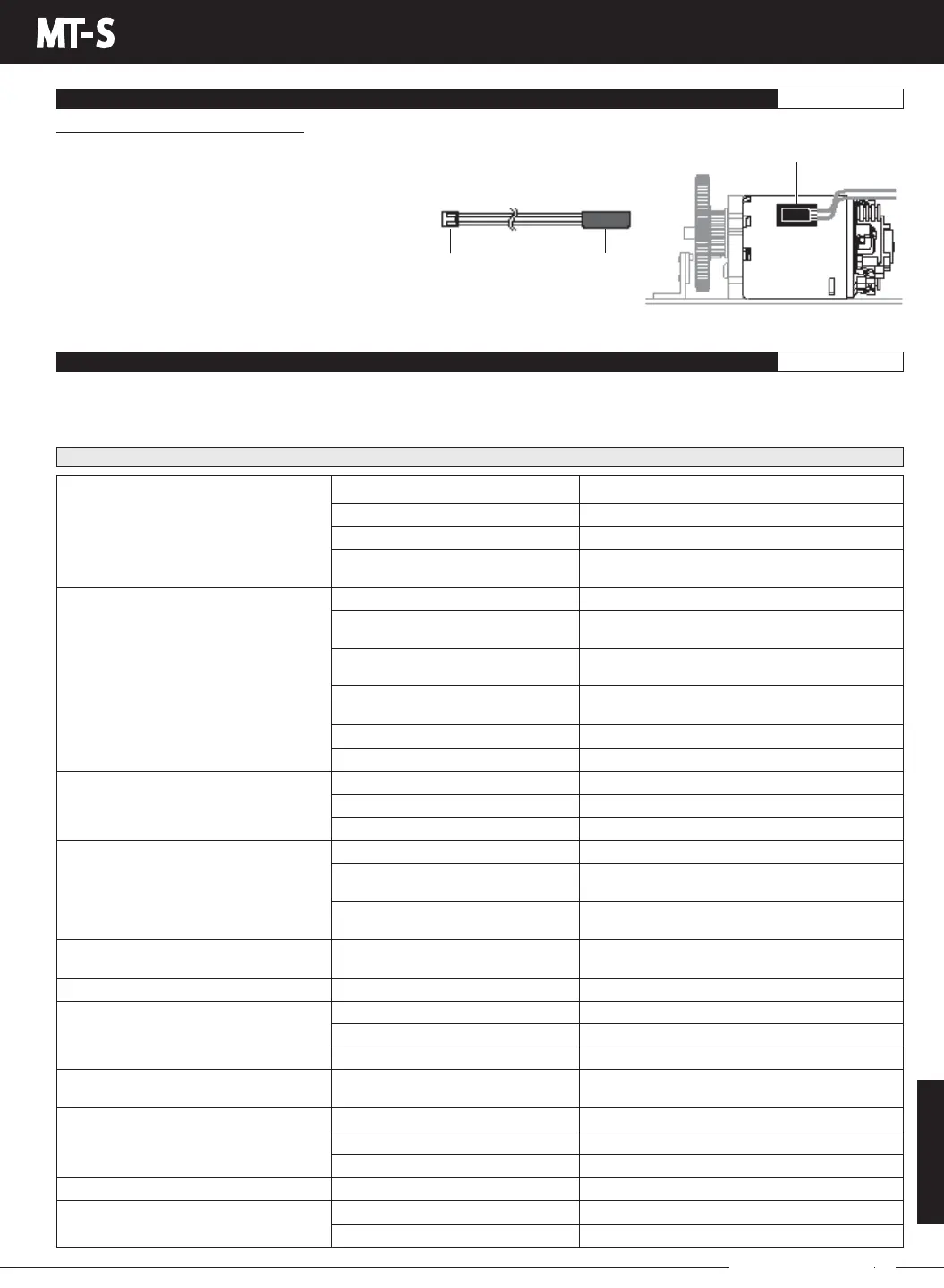

Mounting the Temperature Sensor:
1) Secure the Sensor End directly against the part of your engine, motor, battery
or other object you want to monitor temperature readings from, using either a
nylon cable tie or high-temperature clear tape. For
example, to monitor the cylinder head temperature
of your glow-powered model, the best place to
secure the Sensor End is where the bottom of
the cylinder head meets the top of the engine
case. The Sensor End can be held in place using
a nylon cable tie wrapped around your engine.
To monitor the temperature of your battery pack
or electric motor, high-temperature clear tape can be used to secure the Sensor End to the exact spot you want to monitor.
RX461 AND RX462 RECEIVER TELEMETRY CONNECTIONS AND MOUNTING REFERENCE
Sensor EndInput Plug
Attach with
High-Temperature Clear Tape
This troubleshooting guide can help you diagnose and solve some of the more common problems that you might encounter
with your radio control system. If you cannot solve the problem using this troubleshooting guide, please contact us directly using
the information in the Service and Support section on page 4.
TROUBLESHOOTING GUIDE REFERENCE
Transmitter does not turn ON
Transmitter will not bind to receiver
Receiver won't power ON
Audible alarm beeps continuously
Transmitter LED flashing
No key-press or Timer function sounds
Servo movement is slow
Servo does not move when using Trim Switch
Inadequate transmitting range
Servo(s) move the wrong direction
Servo Horn(s) not centered
Transmitter batteries installed incorrectly
Battery tray not plugged in
Transmitter batteries are dead
Damage caused by misuse or using
incorrect battery type
Modulation Type incorrect
Too much time elapsed after pressing
receiver Bind Button
Attempting to Bind incompatible receiver
Using Electronic Speed Control (ESC)
Receiver batteries are dead
Using incorrect Binding procedure
Receiver batteries are dead
Receiver batteries not installed correctly
Loose connection
Low transmitter battery voltage
Transmitter left ON 10 minutes or more
without control input
Transmitter battery voltage too high
Indicates transmitter status
Audible Key Tones are Muted
Low receiver battery voltage
Control linkages binding
Using a negative Servo Speed value
Trim is outside of operational range
Low transmitter battery voltage
Low receiver battery voltage
Receiver not mounted correctly
Incorrect Servo Reversing setting
Servo horn not installed correctly
Servo Sub-Trim out of adjustment
Reinstall batteries, observing correct polarity
Plug in battery tray
Replace or recharge transmitter batteries
Contact Customer Service
Change Modulation Type to match receiver
Quickly press ENTER key in BIND menu after releasing
receiver Bind Button
Use only Airtronics or Sanwa 2.4GHz FH3, FH4 or FH4T
surface receivers
Disconnect ESC and use dry cell battery for Binding
procedure, then reconnect ESC after Binding
Replace or recharge receiver batteries
Follow Binding procedure carefully
Replace or recharge receiver batteries
Reinstall receiver batteries, observing correct polarity
Double-check all connections including switch
Replace or recharge transmitter batteries
Move Steering Wheel or Throttle Trigger, or press any
key to clear alarm and continue operation
Use transmitter battery whose voltage is 9.6 volts or
less when fully charged
For more information, see LED Condition Indicators
table on page 10.
Increase Volume setting in BUZZER menu
Replace or recharge receiver batteries
Adjust control linkages to operate smoothly
Increase Servo Speed value
Center Trim Switches to '0', center the servo horn and
control linkages
Replace or recharge transmitter batteries
Replace or recharge receiver batteries
Mount receiver exactly as recommended
Change Servo Reversing setting
Turn servo horn 180º and reinstall
Adjust Servo Sub-Trim setting to center servo horn
PROBLEM
CAUSE SOLUTION
