Telemetry System with Sanwa Synchronized Link Support
TELEMETRY Screen:
TheTELEMETRYscreendisplaysTelemetryData,suchasRPMorSpeed,TemperatureandReceiverVoltage.

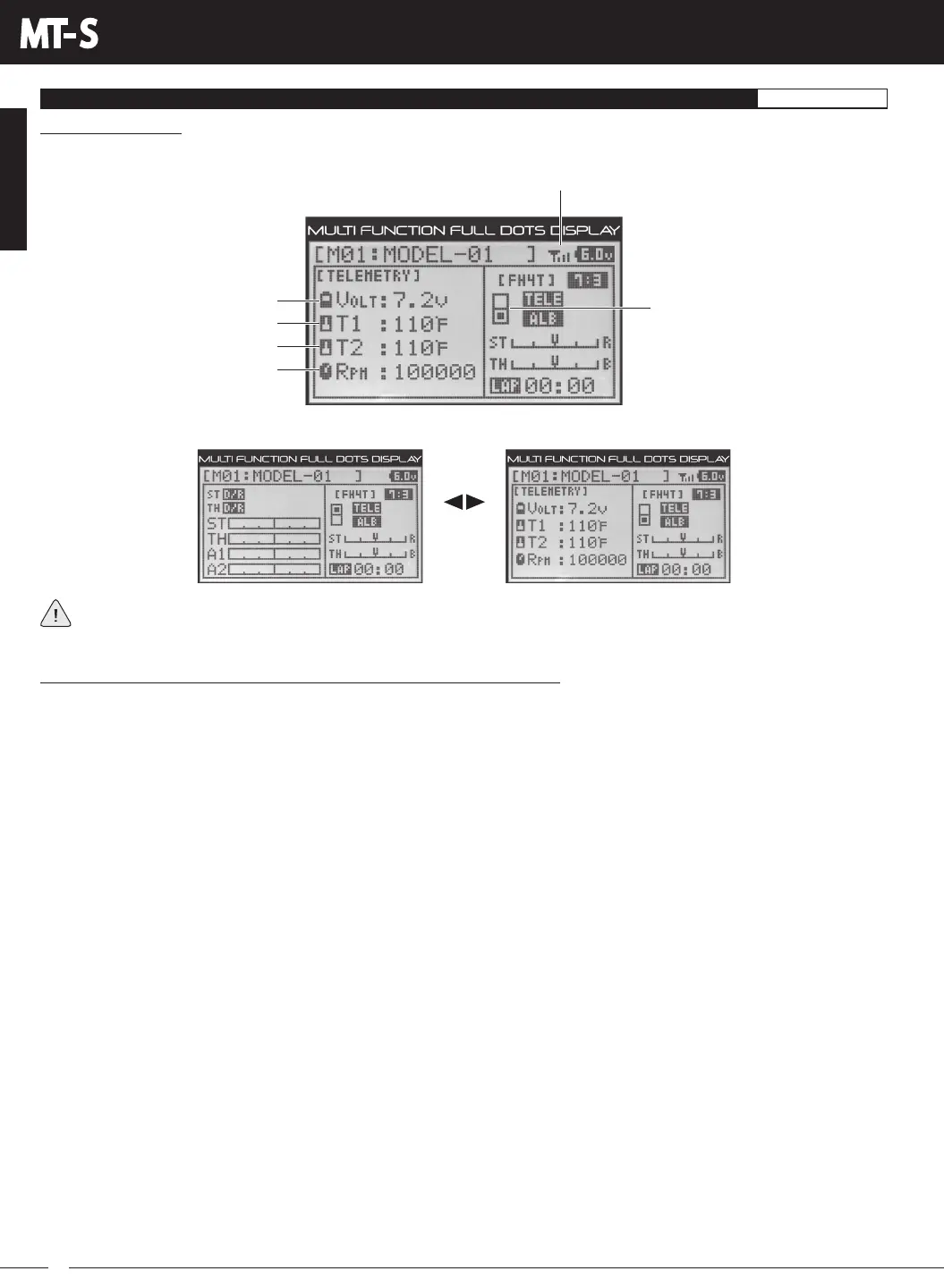

STATUS SCREEN AND TELEMETRY SCREEN OVERVIEW
GENERAL
Screen Position Indicator
Receiver Voltage Indicator
Temperature 1 Indicator
Telemetry Signal Indicator
UP/DOWN
Temperature 2 Indicator
RPM Indicator
PresstheDOWNandUPkeystoswitchbetweentheSTATUSandTELEMETRYScreens.
STATUS Screen and TELEMETRY Screen Overview Diagram Descriptions:
Digital Voltage Indicator: Indicates the current Voltage of the transmitter batteries.
Modulation Type Indicator: Indicates the current Modulation Type that the transmitter is set to.
Model Number and Name: Displays the Model Number and Model Name of the currently selected model.
Receiver Voltage Indicator: Indicates the current Voltage of the receiver battery.
RPM Indicator: Indicates the current RPM from the RPM Telemetry sensor (available separately).
Screen Position Indicator:IndicatesthecurrentActivescreen,eithertheSTATUSscreenortheTELEMETRYscreen.
Servo Monitor: Displays the output levels of the four different channels in bar graph form, allowing you to monitor servo operation
in a virtual manner.
Steering Program Indicator: Indicates up to four different programming options that are currently programmed to the Steering
channel. The Steering Program Indicator will only be displayed if a Steering channel Programming Value is programmed. For
example, Steering Dual Rate.
Steering Trim Indicator: Indicates the current position of the Steering Trim Switch.
System Function Indicator: Indicates current System Functions, such as TELE (Telemetry) or LOG (Logger) that are turned ON.
Telemetry Signal Indicator: Indicates the current signal strength of the Telemetry connection between the transmitter and
receiver. The Telemetry Signal Indicator will only be displayed when the receiver is turned ON and there is a Telemetry
connection Active.
Temperature 1 Indicator: Indicates the current Temperature from the Temperature 1 Telemetry Sensor (available separately).
Temperature 2 Indicator: Indicates the current Temperature from the Temperature 2 Telemetry Sensor (available separately).
Throttle Mode Indicator: Indicates the current Throttle Mode type, either 7:3 or 5:5.
Throttle Program Indicator: Indicates up to four different programming options that are currently programmed to the Throttle
channel. The Throttle Program Indicator will only be displayed if a Throttle channel Programming Value is programmed, for
example, Throttle Dual Rate).
Throttle Trim Indicator: Indicates the current position of the Throttle Trim Switch.
Timer Display: Displays the time of the currently selected Timer.
Timer Type Indicator: Indicates the current Timer Type selected, either LAP, INT (Interval) or DWN (Down).
Full Telemetry support is available only when used with an Airtronics or Sanwa RX-461 or RX-462 FH4T Telemetry receiver,
or when the included RX-482 2.4GHz FH4T Super Response SSL receiver is used along with a Sanwa Super Vortex
series ESC.
