2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
Telemetry System with Sanwa Synchronized Link Support
Section Continued on Next Page
AUX MENU
CODE AUX MENU

CODE AUXILIARY

AUX

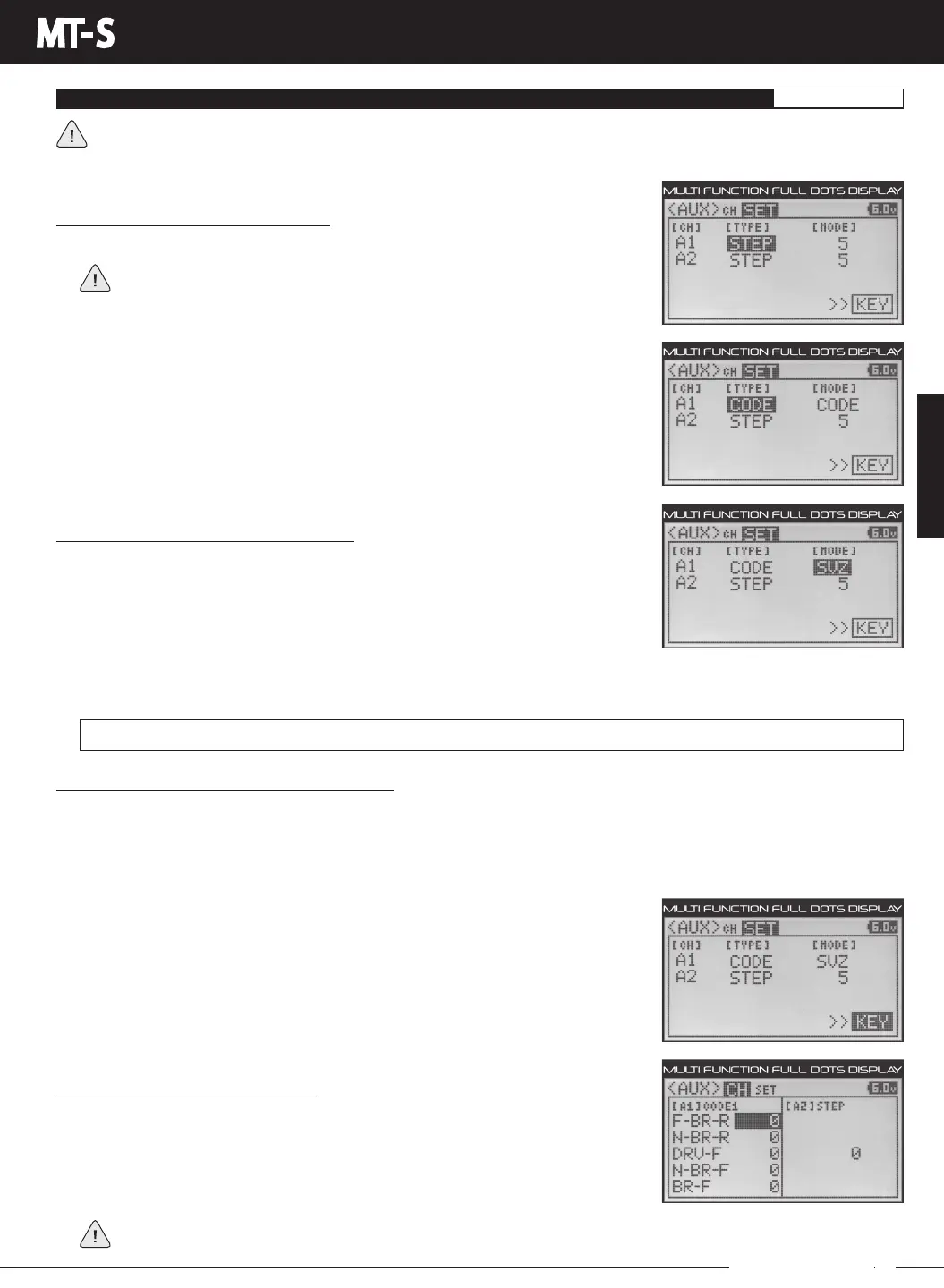

This section details programming the CODE Auxiliary function for both Auxiliary 1 (Channel 3) and Auxiliary 2 (Channel
4), since programming each of them is the same. Choose either CH A1 for Auxiliary 1 (Channel 3) or CH A2 for Auxiliary 2
(Channel 4), depending on which channel you want to program the CODE Auxiliary function for.
Choosing the CODE Auxiliary Function:
1) From within the AUX menu, press the UP or DOWN keys to highlight AUX SET.
If the cursor isn't flashing over Channel/Options, press the BACK key, then
press the UP or DOWN keys to highlight the AUX SET menu Option.
2) Press the ENTER key, then press the UP or DOWN keys to highlight either CH A1
TYPEorCHA2TYPE,dependingonwhichAuxiliarychannelyouwanttoprogram,
either Auxiliary 1 (Channel 3) or Auxiliary 2 (Channel 4).
3) Press the ENTER key, then press the UP or DOWN keys to choose the CODE option
for the selected channel.
Changing the CODE Auxiliary Mode Value:
1) Press the ENTER key, then press the UP or DOWN keys to highlight either CH A1
MODE or CH A2 MODE, depending on which Auxiliary channel you're programming.
2) Press the ENTER key, then press the UP or DOWN keys to choose the desired CODE
Auxiliary Mode value, either CODE, SVZ or SVD. For more information, see below.
AUX SET CODE MODE setting range is CODE, SVZ and SVD. The default setting is CODE.
CODE-ChooseifYouWanttoProgramCustomCODEAUXValues
SVZ-ChooseifYouHaveaSanwaSuperVortexZEROESC
SVD-ChooseifYouHaveaSanwaSuperVortexDRIFTESC
Choosing the Key Option (Key Assign Function):
In the default configuration, AUX1 CODE is controlled by Auxiliary Switch Sw2 and AUX2 CODE is controlled by Auxiliary Switch
Sw3.TheKeyoptionisashortcuttotheKEYASSIGNmenu,whichallowsyoutoAssigntheCODEAuxiliaryfunctiontoa
Trim Switch. For example, you can control individual Code functions while you're driving, such as Timing Advance or Boost, by
using Trim Switch Trm3 to control AUX1 CODE2 or AUX1 CODE3, etc. The Auxiliary Switches are not suitable for controlling
the CODE Auxiliary function, so we don't recommend using them.
1) PresstheENTERkey,thenpresstheUPorDOWNkeystohighlightKEY.
2) PresstheENTERkeytoopentheKEYASSIGNmenu,thenAssignthedesiredAUX1
CODE or AUX2 CODE to the desired Auxiliary Switch or Trim Switch. For more
information,seetheKEYASSIGNMenusectiononpages56through60.
Changing the CODE Auxiliary Values:
1) From within the AUX SET menu, press the BACK key so the cursor is flashing over
Channel/Options.
2) Press the UP or DOWN keys to highlight AUX CH, then press the ENTER key to open
the AUX CH menu.
The Custom CODE Auxiliary Value Names (CODE1, CODE2, etc.), cannot be named and the preset SVZ and SVD
CODE Auxiliary Value Names cannot be renamed.
