Airzone FLEXA 3.0 IBPRO6 Assembly Instructions

12

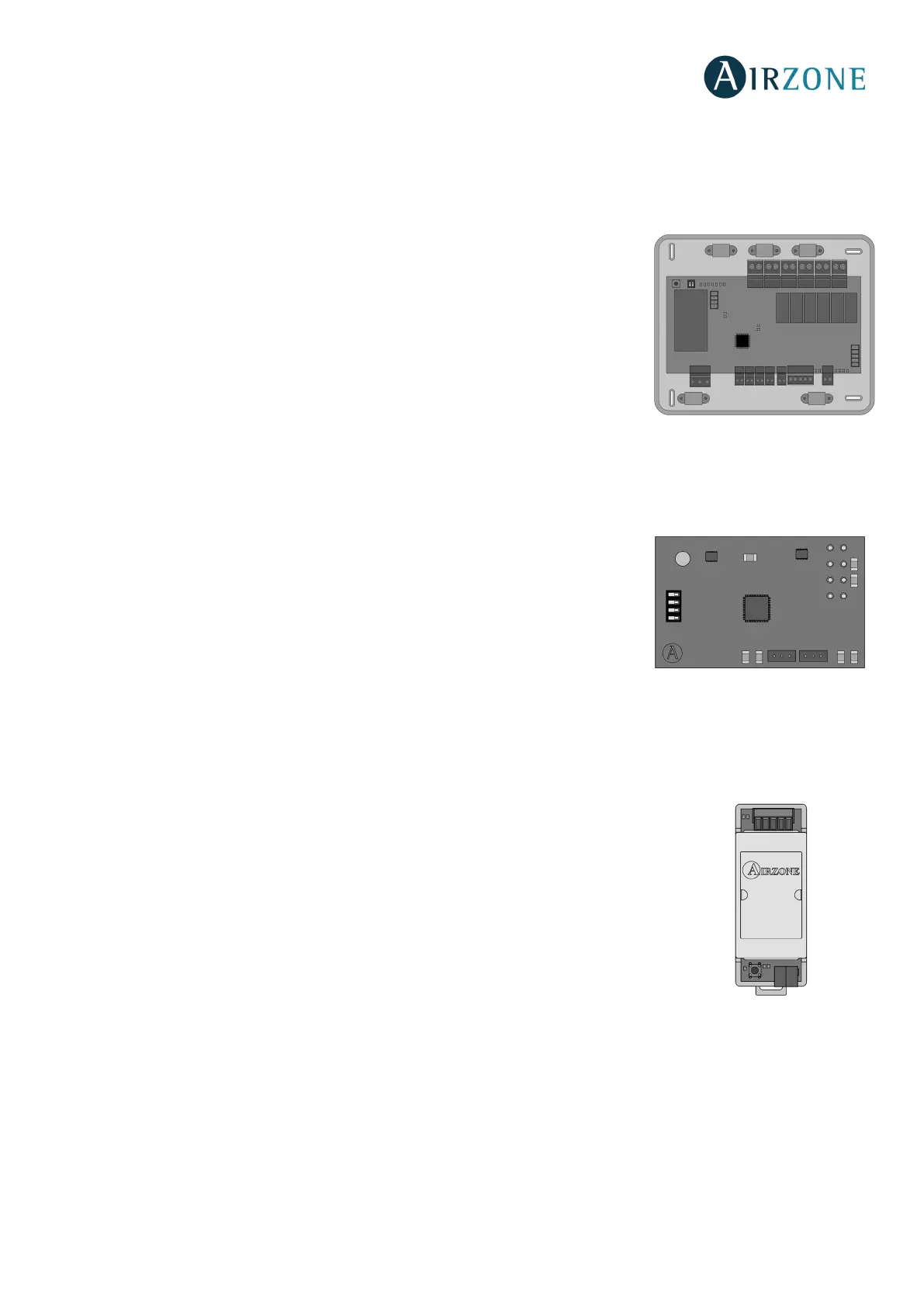

AIRONE PRODUCTION CONTROL BOARD (AZX6CCP)
Control board of production units through 6 relays of 10 A at 110/230 Vac. Communications through domotic bus. Externally
powered. Wall mounted.
Functionalities:
• Controls up to 32 systems.
• Controls cooling and heating mode through 2 relays.
• Controls cooling air and the heating air demand through 2 relays.
• Controls the cooling and heating radiant element demand through 2 relays.
• 3 Inputs for semi-forced mode.
• Input for boiler probe.
AIRZONE AEROTHERMAL GATEWAY (AZX6ACUACP XXX)
Aerothermal-Airzone communication gateway. Powered through the AC unit bus of the production control board (AZX6CCP).
Functionalities:
• Includes energy efficiency algorithms.
• Remote start-stop function.
• Operating mode synchronization with Airzone systems (cooling and heating).
• Imposes water production temperature based on the demand.
KNX INTEGRATION GATEWAY (AZXKNXGTWAY)
Airzone integration gateway of HVAC systems into KNX TP-1 control systems through Modbus. Powered through KNX bus.
DIN-rail mounting.
Functionalities:
• One Airzone system per KNX gateway.
• Full KNX.
• KNX standard data.
• Easily configurable from ETS.
• Zone control through KNX devices.
• Type of installation control.
• Communication errors detection.
