Airzone FLEXA 3.0 IBPRO6 Assembly Instructions

22

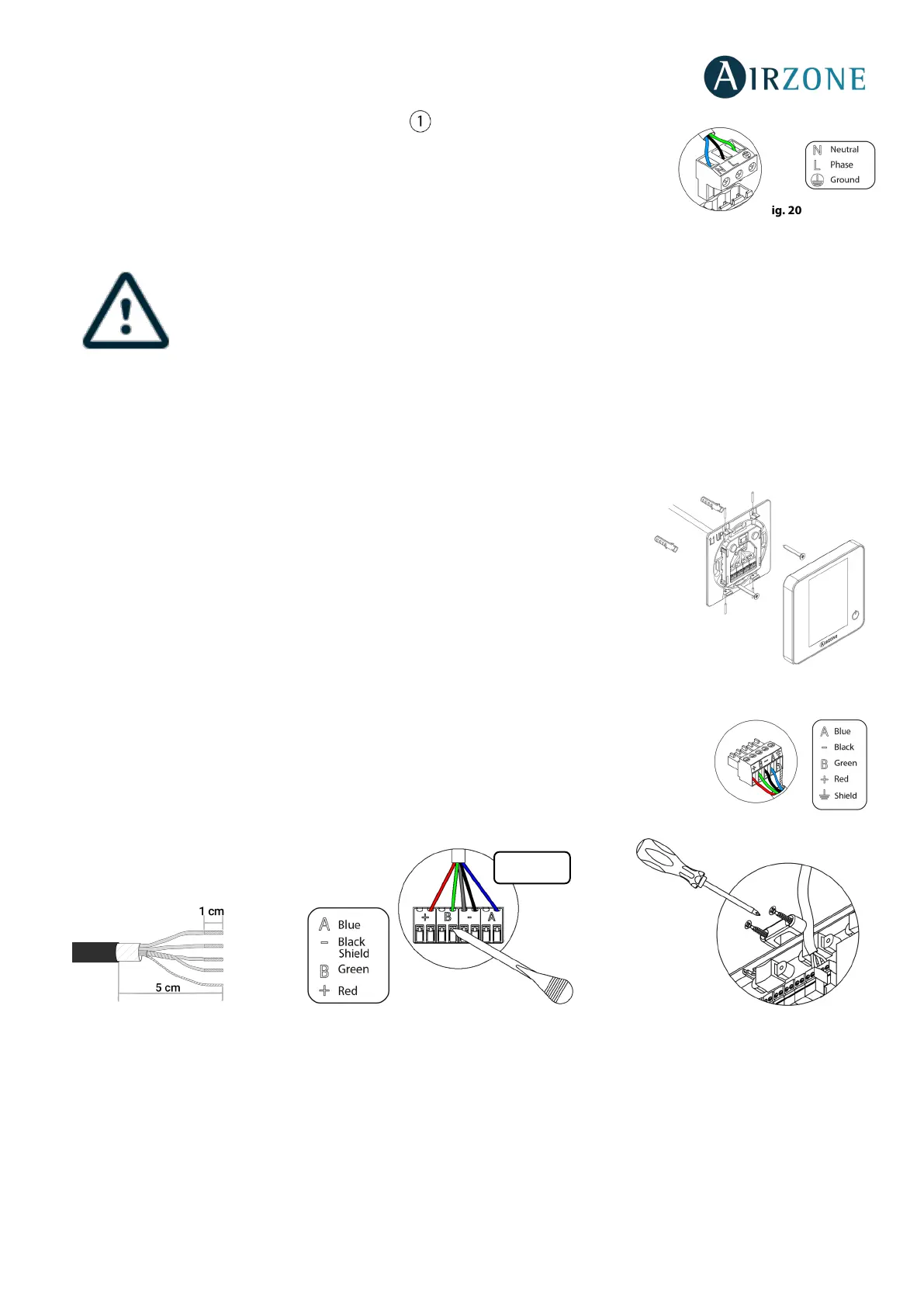

It is connected to the module through a 3-pin terminal . Attach the wires with the terminal
screws following the color code (Fig. 20).
Once powered, the control module of radiant elements performs a sequential opening-
closing of all relay outputs. This operation is repeated once a week to ensure the correct
operation of the valves.
According to the current local and national regulations, it is mandatory to add a switch (or other element
to disconnect the system) to the external supply wiring so that a constant separation between poles is
guaranteed. The system will restart automatically if the supply is eventually turned off.
Use an
independent circuit from the controlled system for the power supply.
WIRED AIRZONE THERMOSTATS (AZCE6BLUEFACEC / AZCE6THINKC / AZCE6LITEC)
Assembly
Wired thermostats are mounted on the wall through a support. It is recommended not to locate it more than 40 meters away
from the main control board. To fix it to the wall, follow these steps (Fig. 21):
• Separate the back part of the thermostat from the wall support and make all the
connections.
• Fix the back part of the thermostat to the wall.
• Place the display on the support once it is fixed.
• Place the anti-theft rods for additional support (optional).
•
Connection
The Airzone thermostats are connected to the Airzone connection bus of the main board. Attach the
wires with the terminal screws following the color code (Fig. 22).
Important: Use provided tool to press in the locking tabs.
Fig. 21
Fig. 20
Press
Thermostat
Fig. 23
Fig. 22
