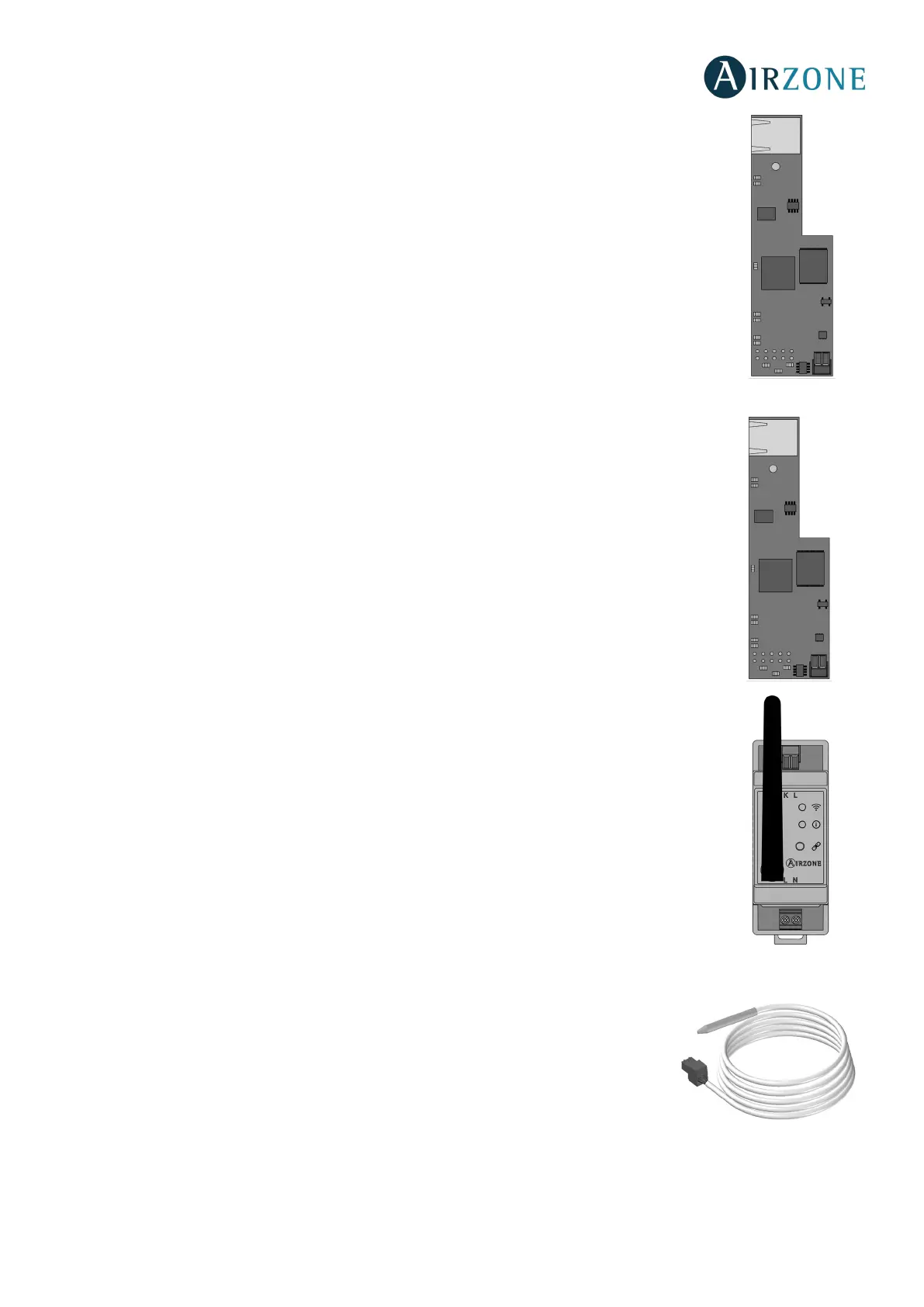

AIRZONE-BACNET INTEGRATION GATEWAY (AZX6BACNET)
Integration gateway for controlling Airzone installations through BACnet platform. Connected to router
via Ethernet. Power supplied through the main control board domotic bus.
Functionalities:
• One BACnet gateway per system.
• Status of window contact and presence contact of each zone.
• Status of the radiant stage of each zone.
• On/Off of each zone.
• Set-point temperature control of each zone.
• Operating mode status.
• State and Fancoil fan speed.
AIRZONE-LUTRON INTEGRATION GATEWAY (AZX6GTILUT)
Integration gateway for Lutron control systems on Airzone systems through Lutron HomeWorks QS
Processor. Connected via Ethernet. Power supplied through the main control board automation bus.
Features:
• One Airzone-Lutron interface per system.
• Reading/Writing of the room temperature.
• Reading/Writing of the set-point temperature.
• Reading/Writing of the operating mode.
• Reading/Writing of the cooling/heating demand.
• Reading/Writing of the fan speeds
AIRZONE CONSUMPTION METER (AZX6ACCCON)
Module that calculates and displays the energy consumption of single-phase HVAC units for Blueface
thermostat and Airzone Cloud. Wireless communications. Externally powered at 230 Vac. Din rail
mounted.
Functionalities:
• Calculation of energy consumption at the period of use.
• Calculation of the current energy consumption.
• Representation of daily, monthly and annual period chart at Airzone Cloud.
• Energy consumption comparison between different periods of time at Airzone Cloud.
AIRZONE TEMPERATURE METALLIC PROBE IN SHEATH (AZX6SONDPROTEC)
Temperature probe in metal sheath.
Functionalities:
• Protection probe for return water (to boiler).
• Configurable as remote or distributed probe.

Airzone FLEXA 3.0 IBPRO6 Specifications

General

Brand	Airzone
Model	FLEXA 3.0 IBPRO6
Category	Thermostat
Language	English
