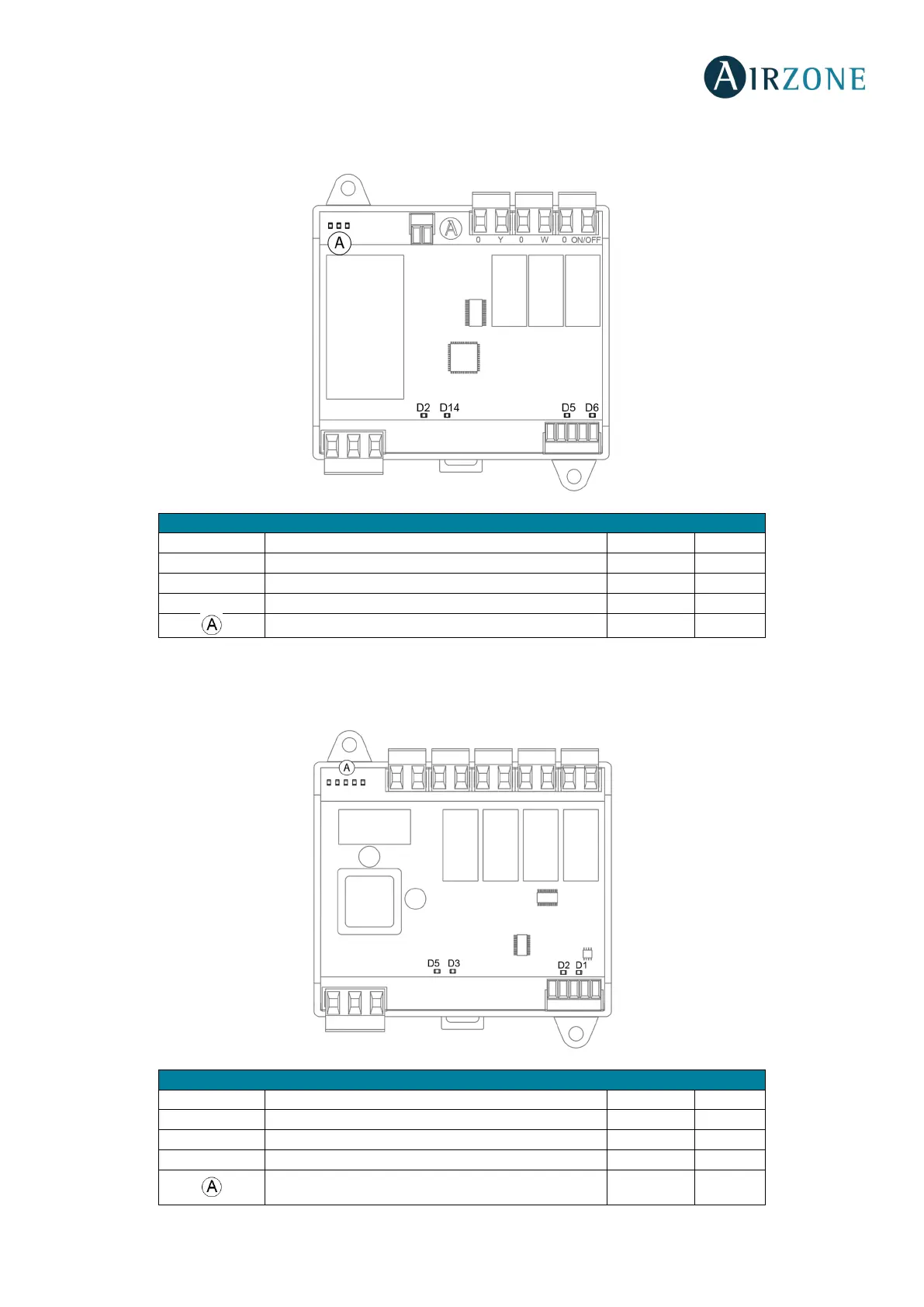

0-10 V FANCOIL COMMUNICATION GATEWAY (AZX6010VOLTSZ)
Airzone 0-10 V Fancoil communication gateways incorporate LEDs that detect malfunctions.
FANCOIL COMMUNICATION GATEWAY (AZX6FANCOILZ)
Airzone Fancoil communication gateways incorporate LEDs that detect malfunctions.
Meaning
D2
Power supply
Solid
Red
D5
Data reception from AC unit bus
Blinking
Green
D6
Data transmission from AC unit bus
Blinking
Red
D14
Gateway performance
Blinking
Green
LEDs of relay state
Conmute
Green
Meaning
D1
Data reception from AC unit bus
Blinking
Green
D2
Data transmission from AC unit bus
Blinking
Red
D3
Gateway performance
Blinking
Green
D5
Power supply
Solid
Red
LEDs of relay state
Blinking
Green
