SYSTEM SETTINGS
• System address (not available on systems with BACnet gateway). Defines the number of the system within your
installation. The value 1 is shown by default. The system will display the available values (max = 247).
If the system has address 1 and there is a production control board (AZX6CCP) in the installation, it is possible to
activate Supermaster feature which imposes the operating mode of system 1 to the rest of the systems connected to
the AZX6CCP:
• Temperature range. Selects the highest temperature in heating mode (19-30 °C) and the lowest temperature in
cooling mode (18-26 °C). It is also possible to disable some of the modes. The highest temperature by default is 30°C.
The lowest temperature by default is 18°C.
• Combined stage. (only available in installations with AZCE6OUTPUT8 modules) Enables activating and deactivating
the combined stage of the “Control Stages” parameter in the user’s Zone Settings Menu.
• Hysteresis configuration. Defines the temperature differential between room temperature and set-point
temperature required to start applying the Algorithm RadianT. In installations with radiators, set this value to 0°C. It is
set to 0°C by default.
• Type of opening. Use this to activate/deactivate the proportionality in the dampers of the system. The proportionality
adjusts in 4 steps the damper opening or shutting based on the temperature demand of the zone, regulating the flow.
It is configured as All/nothing by default.
*Note: If you change this parameter, all the dampers of the installation will be affected. It is not recommended for RINT and
RIC intelligent grilles.
• Standby mode (only for Blueface thermostats). Configuration of the operating logic of the motorized elements when
there is no demand on the system. This is disabled by default.
• Relay settings. Allows you to modify the logic of operation of CMV/Boiler relay of the main control board (see section
Airzone main control board (AZCE6FLEXA3 / AZCE6IBPRO6), Connection). It is configured as CMV by default.
• Wireless module. It activates/deactivates the wireless association module of the system.
• Return temperature (only available in installations with AZX6SONDPROTEC protection probes). Defines the cut-off
temperatures of the system for both heating (32°C, 34°C and 36°C) and cooling mode (6°C, 8°C and 10°C) in order to
protect the AC unit. The system highest temperature by default is 34°C and the lowest is 8°C.
• Q-Adapt (only for Think thermostats).
- In direct expansion units. Select the control algorithm that best fits your installation. These are the available
options:
- Maximum: the system operates at maximum speed, irrespective of the number of zones.
- Power: the speed of the system is higher than in standard mode to increase the flow.
- Standard (by default): the system automatically regulates the speed based on the number of zones.
- Silence: the speed of the system is lower than in standard mode to reduce the noise.
- Minimum: the system operates at minimum speed, irrespective of the number of zones.

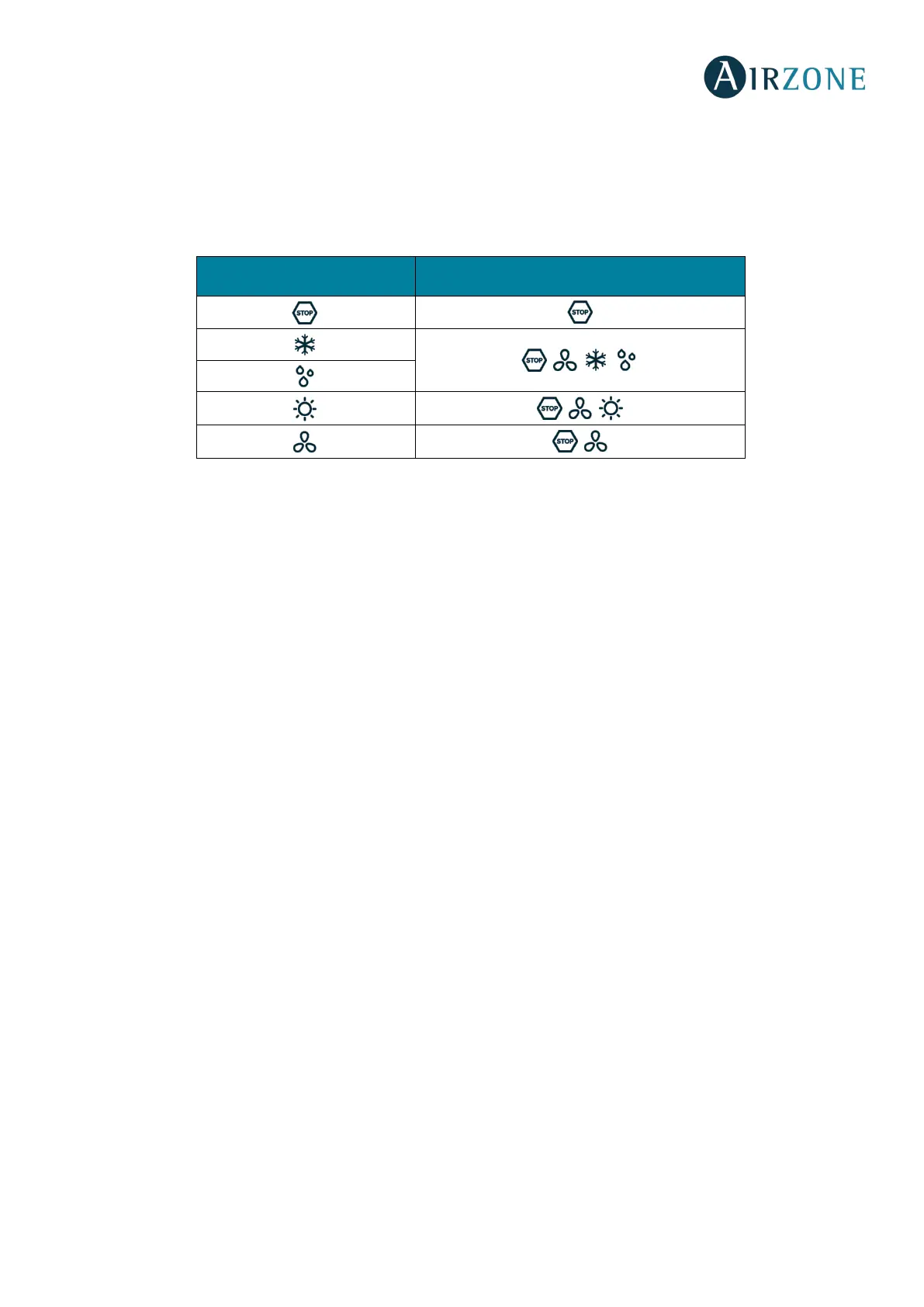

Available operating modes:
