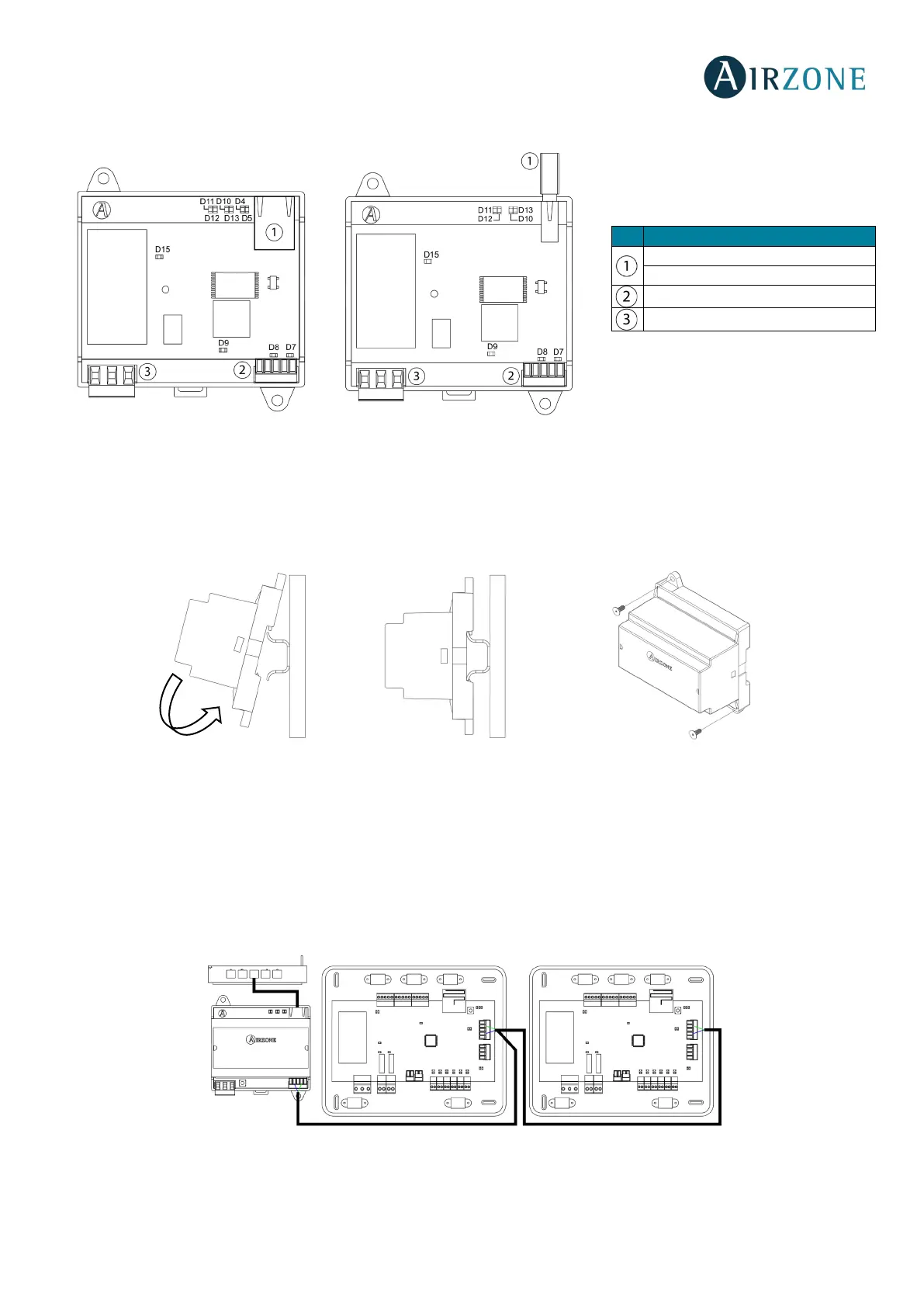

WEBSERVER AIRZONE CLOUD DIN ETHERNET/WI-FI (AZX6WSCLOUDDIN [C/R])
Fig. 51
Assembly
The Webserver Airzone Cloud Din can be mounted on DIN rail (Fig. 52) or on wall (Fig. 53). This module is externally power
supplied at 110/230 Vac. Location and installation of the module must comply the current electronic rules.
Fig. 52 Fig. 53
Note: To take the module away, pull the reed down to release it.
Connection
The Webserver Cloud DIN is a device which connects to the domotic bus of the main control board (Fig. 54 y 56) or to the
external domotic bus 2 of the Production Control Board, AZX6CCP (Fig. 55 y 57).
AZX6WSCLOUDDINC
Fig. 54
WiFi USB connector and antenna
Domotic Bus
Power supply
To Next Page
