AIRZONE PRODUCTION CONTROL BOARD (AZX6CCP)

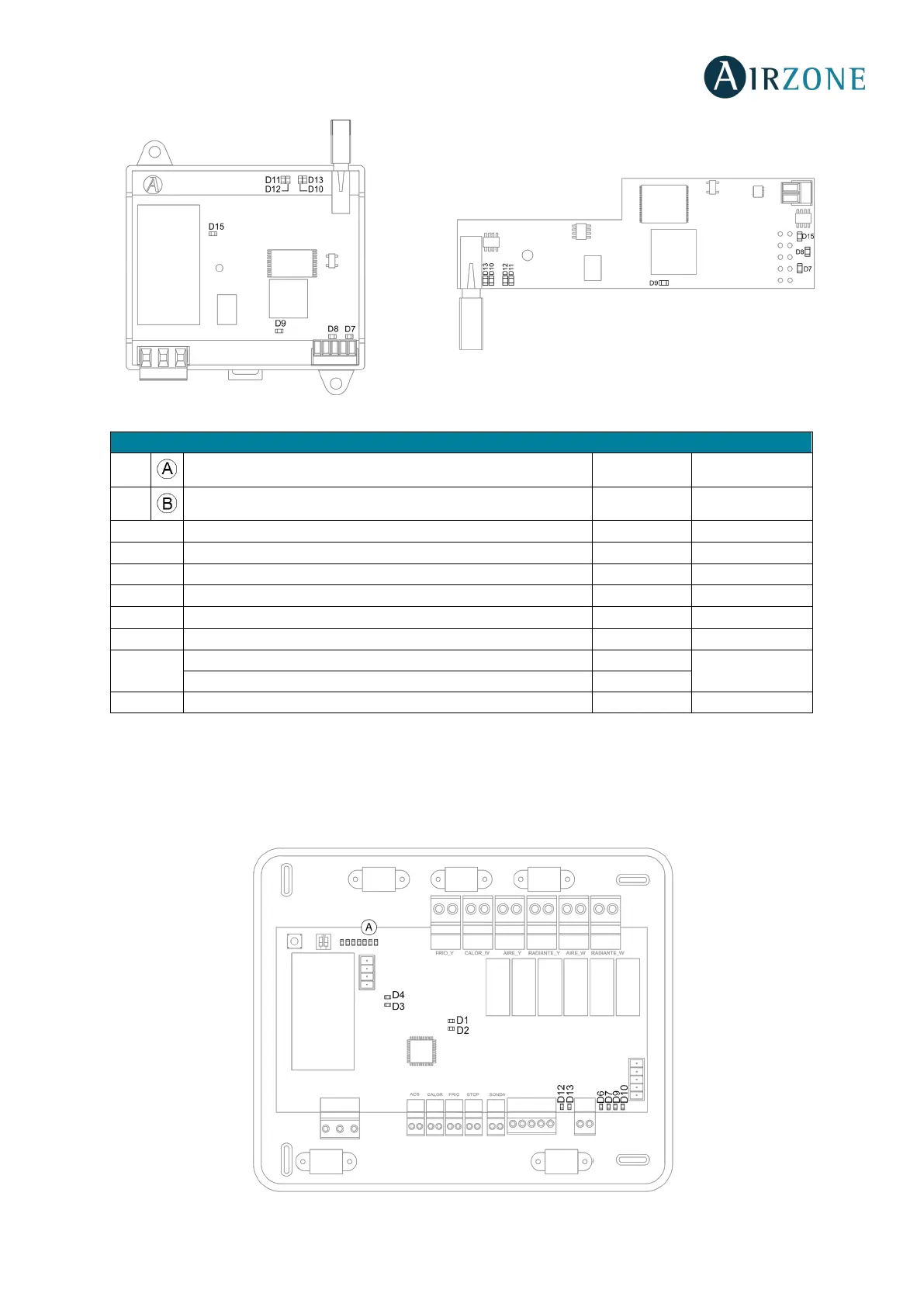

Airzone production control boards incorporate LEDs that detect malfunctions.
AZX6WSCLOUDDINR
AZX6WEBSCLOUDR
Meaning
D5
Ethernet connected
Blinking
Green
D4
Ethernet activity
Blinking
Yellow / Red
D7
Data transmission from domotic bus (input and output)
Blinking
Red
D8
Data reception from domotic bus (input and output)
Blinking
Green
D9
Microprocessor performance
Blinking
Green
D10
Connected to the Internet
Blinking
Green
D11
Network data transmission
Blinking
Red
D12
Network data reception
Blinking
Green
D13
Configured as IP address through DHCP
Switch on
Red
Configured as Fixed IP address
Switch off
D15
Power supply
Solid Red
