INTRODUCTION
Airzone systems enable the management of Master and Zone interfaces. Master thermostats enable mode management or
define the efficiency level with the Eco-Adapt function.
It is recommended the use of a Blueface thermostat as Master Interface, this enables time schedule management and more
unique functionalities.
Remember: This system only admits one Master thermostat.

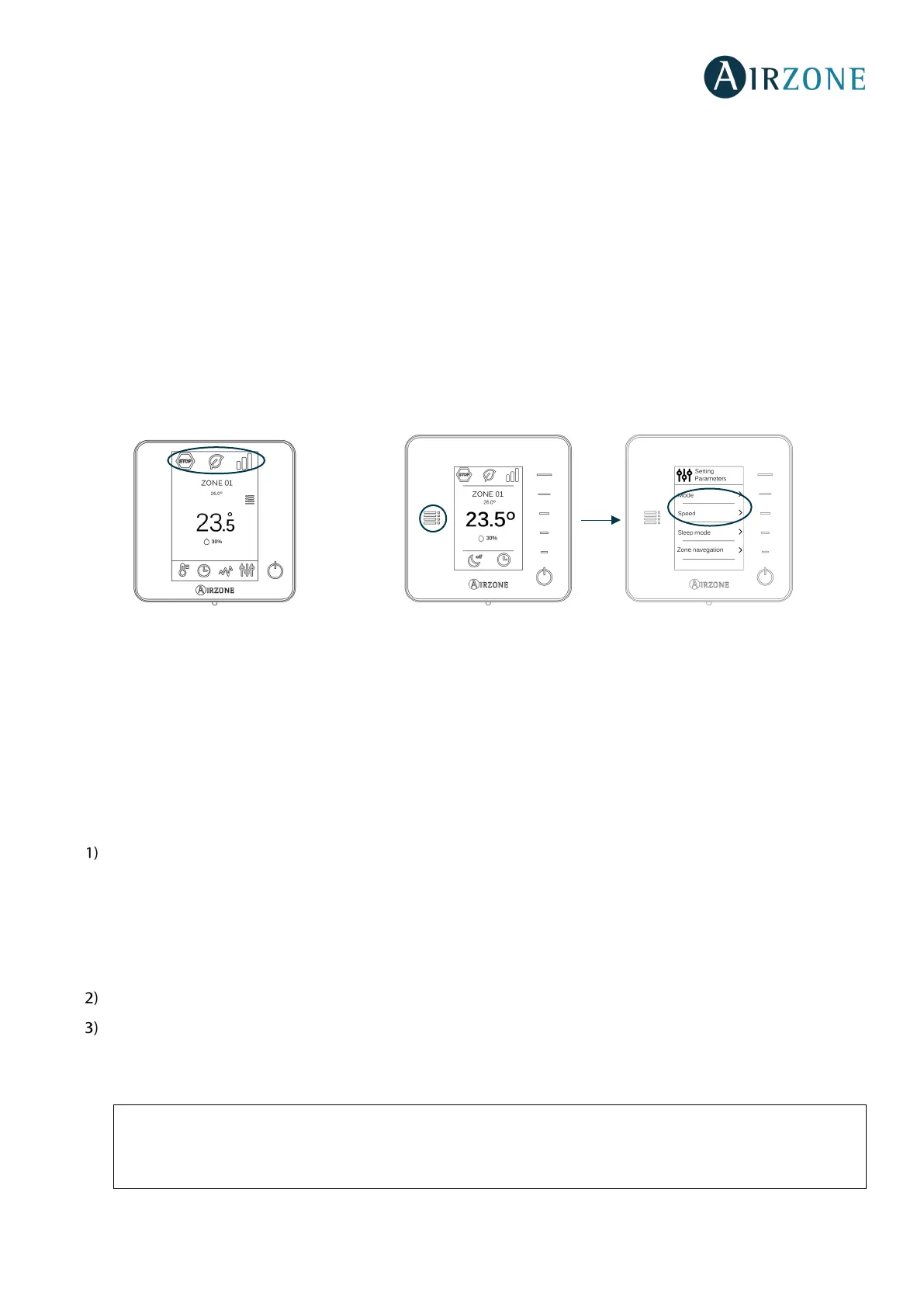

To distinguish a Master Interface from a Zone Interface, check the next points:
- Blueface Master: Mode, Eco-Adapt and Speed* icons shown in white color.
- Blueface Zone: Mode, Eco-Adapt and Speed* icons shown in gray color.
- Think Master: Accessing the settings menu, Operation Mode and Speed* are available.
- Think Zone: Accessing the settings menu, Operation Mode and Speed* are unavailable.
*Note: Only available on installations with Fancoil.
SYSTEM INSTALLATION
Before the Airzone system commissioning, please check:
• The system is going to control works correctly without the Airzone system installed.
• In direct expansion unit systems, the indoor unit wired thermostat has been installed.
In order to install the system, carefully follow these steps:
Connect all the necessary elements (see section Assembly and connection)
- Connect the actuators.
- Connect the communication gateway.
- Connect all the elements of the system (thermostats, modules, etc.).
- Power the main board.
Check all the assembly and the connection are correct (see section Assembly and connection evaluation)
Configure the system
- Configure all the thermostats (see sections Initial configuration and Advanced settings).
Access all our technical documents and the self-diagnosis section, check the most FAQs,
certificates, watch our videos and read our declaration of conformity at:
myzone.airzone.es/products/
