39
Configuration
Note: To configure it, follow the steps described in the BACnet installation manual available at myzone.airzone.es
(http://doc.airzone.es/producto/Gama_AZ6/Airzone/Comunes/Manuales/MI_AZ6_BACNET_A4_EN.pdf)
AIRZONE-LUTRON INTEGRATION GATEWAY (AZX6GTILUT)
Assembly

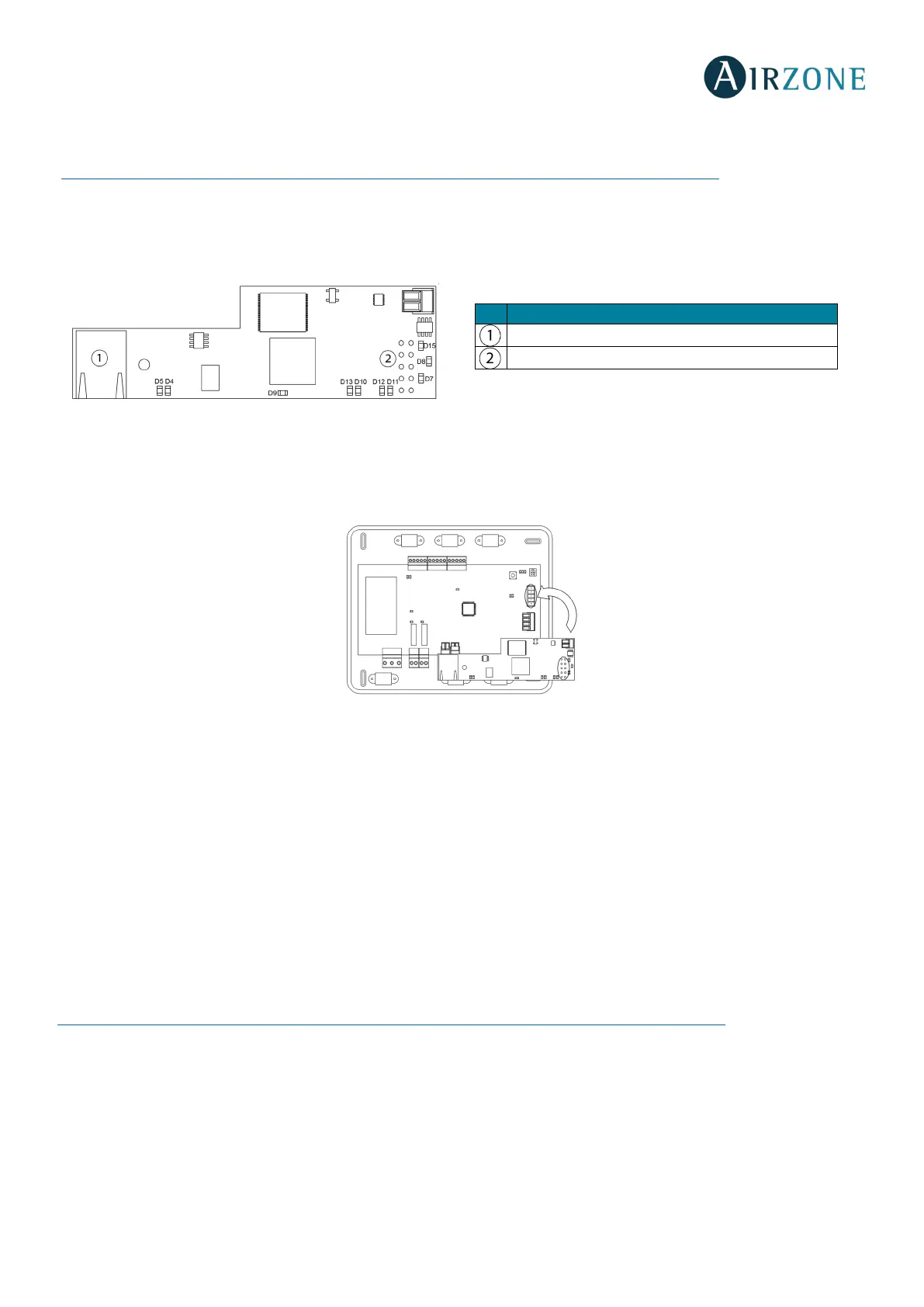

Airzone Lutron gateway is integrated into the domotic bus of the main board (Fig. 80). It has a 5-pin terminal. Disconnect the
terminal to which you want to connect to the gateway and fit the connector.
Note: Remove the fixing post from the Webserver to mount the production control board.
Important: The use of the Airzone-BACnet integration Gateway is not compatible with the following elements:
- Webserver airzone cloud (AZX6WEBSCLOUD [C/R] AND AZX6WSCLOUDDIN [C/R])
- Airzone production control board (AZX6CCP).
- Surface supermaster controller (AZX6CSMASTER [S/E]).
- KNX-airzone integration gateway (AZX6KNXGTWAY).
- Airzone bacnet integration gateway (AZX6BACNET).
Configuration
To configure it, follow the steps described in the Lutron gateway installation manual available at myzone.airzone.es
(http://doc.airzone.es/producto/Gama_AZ6/Airzone/Comunes/Manuales/MI_AZ6_LUTRON_A4_EN.pdf
)
Fig. 80
Nº
Descripción
Ethernet
Domotic Bus
Fig. 79
