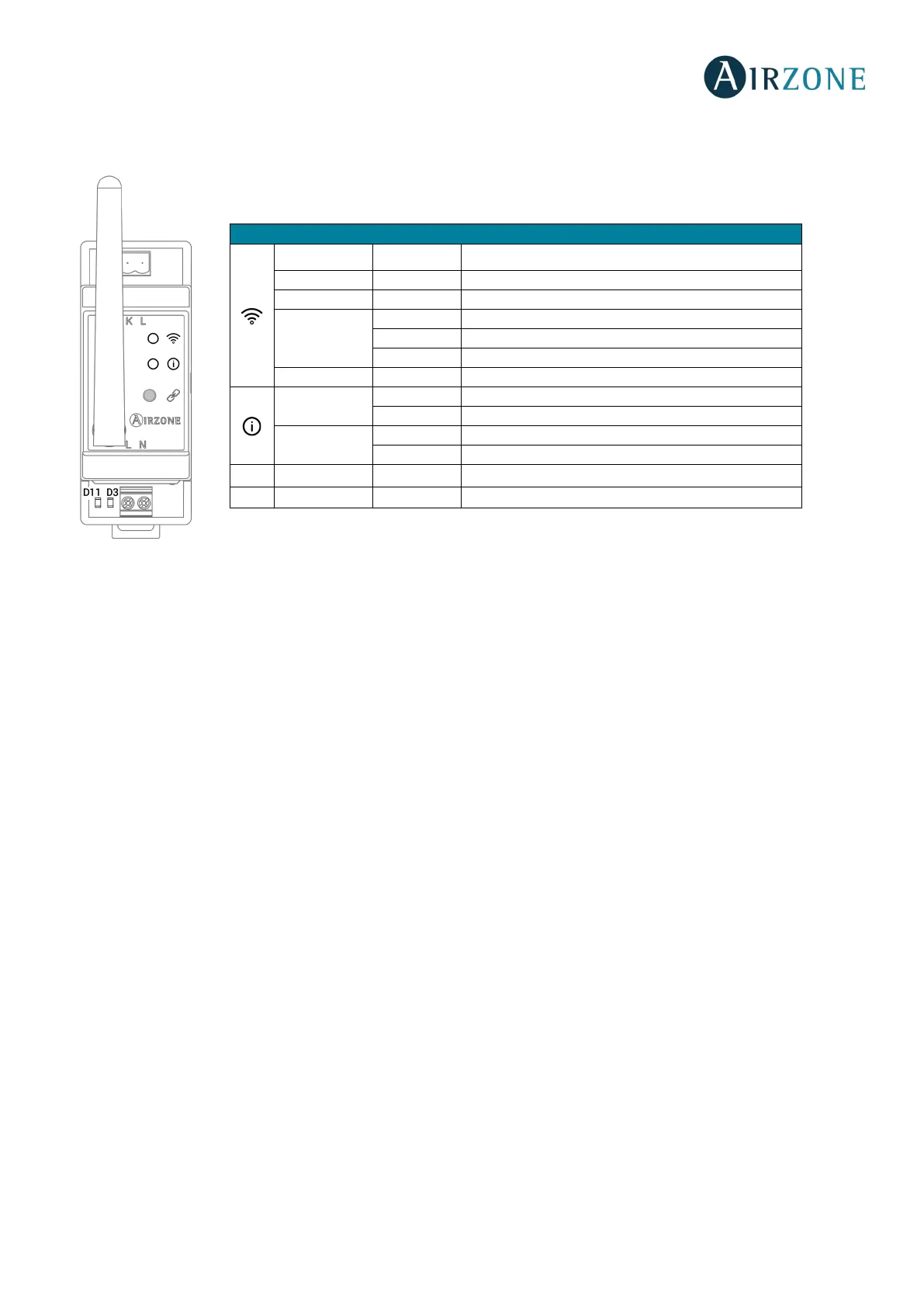

AIRZONE CONSUMPTION METER (AZX6ACCCON)
Airzone consumption meter incorporates LEDs that detect malfunctions.
Meaning
Green Solid Good signal
Yellow
Solid
Medium signal
Orange
Solid
Low signal
Red
Solid
Without signal
1 blinking
Main control board already ascociated
2 blinking
Main control board not found
Purple
Blinking
Error of communication with main control board
Blue
Solid
Not connected
Blinking
Searching…
Green
Solid
Connected
Blinking
Data processing error
D3
Gree
Blinking Microprocessor performance
D11
Red
Solid
Power supply
