Important: To guarantee the optimization of the production temperature of the aerothermal units, these device combinations
do not generate demand to the production control board:
- Airzone controller 3.0 gateway (AZX6GTCxxx) in Flexa 3.0 and Innobus Pro6 main control boards.
- Communication gateway (AZX6QADAPTxxx) in Flexa 3.0 and Innobus Pro6 main control boards.
- Airzone control gateway for electromechanical units (AZX6 ELECTROMEC) in Flexa 3.0 and Innobus Pro6 main control
boards.
SW1

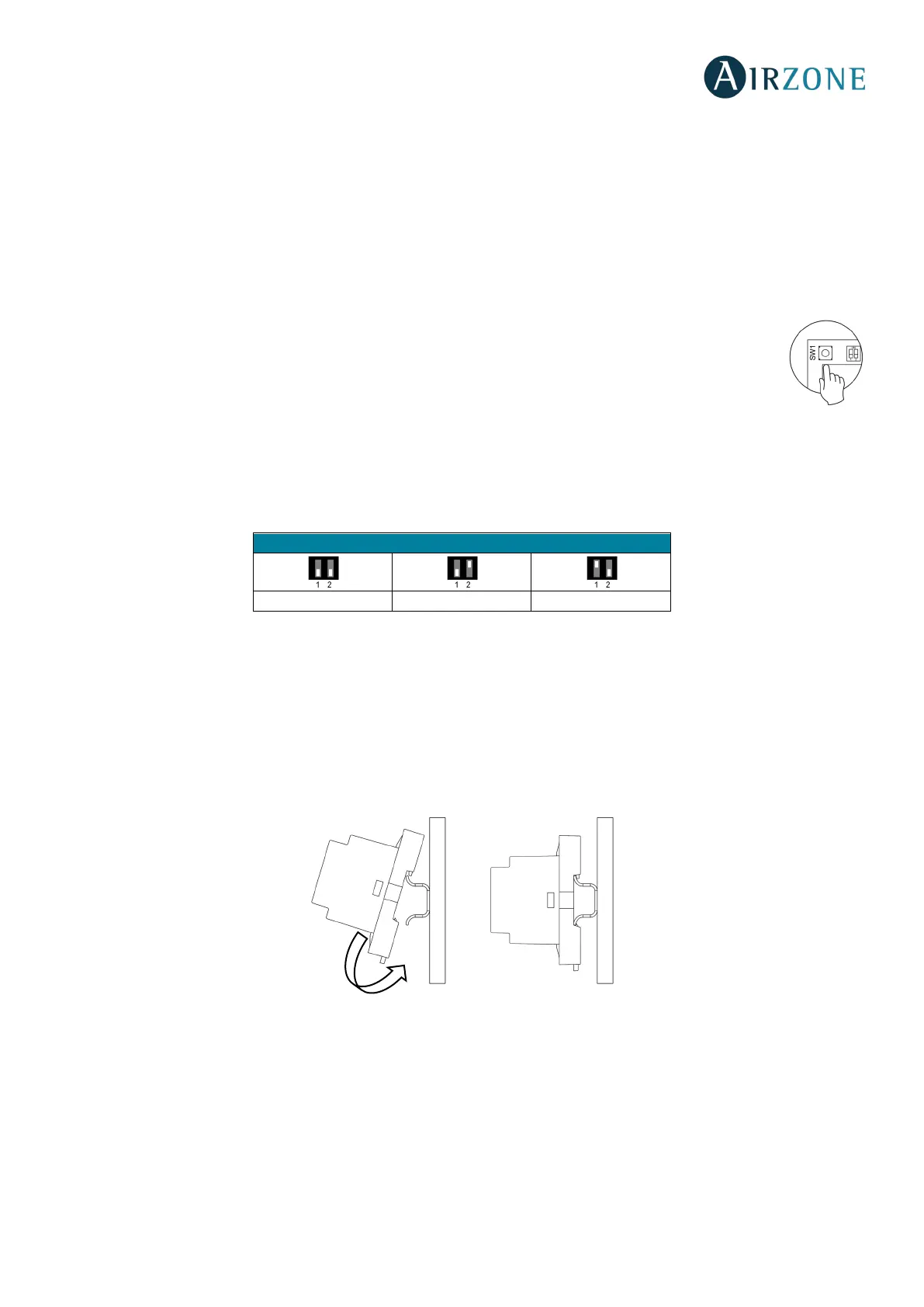

Once all the main control boards have been addressed, you must save the configuration of the installation in
the production control board. To do that, press SW1 (Fig. 73). If you make any changes in the installation,
remember to save the new configuration. To reset the production control board, press SW1 until the LED D2 is
off.
SW2
The microswitch SW2 sets the type of installation to control by the central production control. The operation logic of the
microswitch is as follows:
KNX INTEGRATION GATEWAY (AZXKNXGTWAY)
Assembly
KNX integration gateway is mounted on DIN rail (Fig. 74). This module is powered through the domotic bus of the main control
board and the KNX bus of the installation. It is should be placed and mounted in accordance with the current electrotechnical
regulations.
Fig. 74
Note: To take the module away, pull the reed down to release it.
Meaning
Aerothermal
2 pipes
3/4 pipes
Fig. 73
