40

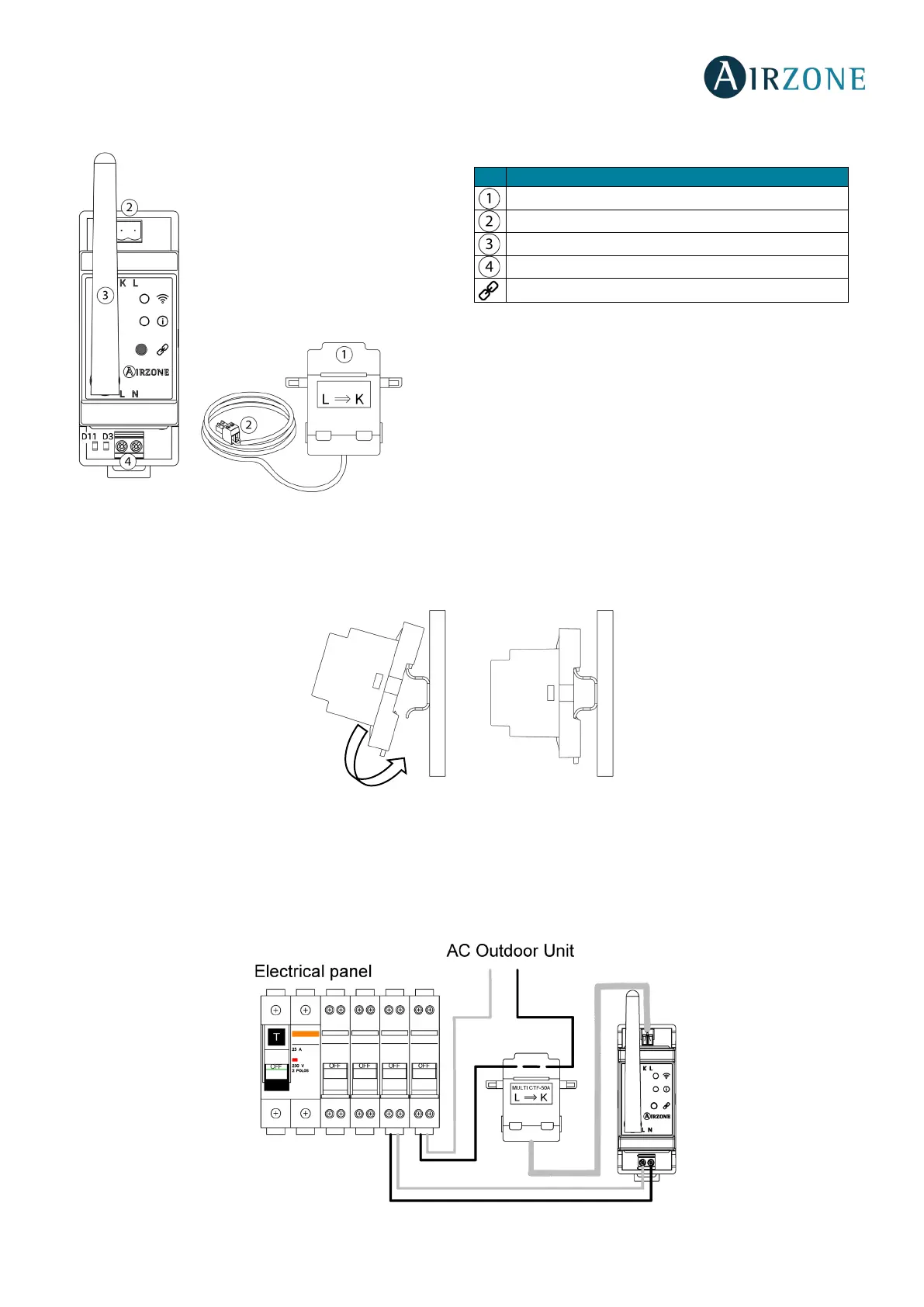

AIRZONE CONSUMPTION METER (AZX6ACCCON)
Assembly
This module is mounted on DIN rail (Fig. 17). It module is externally powered at 110/230 Vac. It should be placed and mounted
in accordance with the current electrotechnical regulations.
Fig. 17
Note: To take the module away, pull the reed down to release it.
Connection
The Airzone consumption meter is connected by a clamp meter directly to the external air conditioning power supply wires to
measure the power consumptions of the system (Fig. 83).
Fig. 81
Fig. 83
Clamp meter
Sensor connection
Power supply
Button
