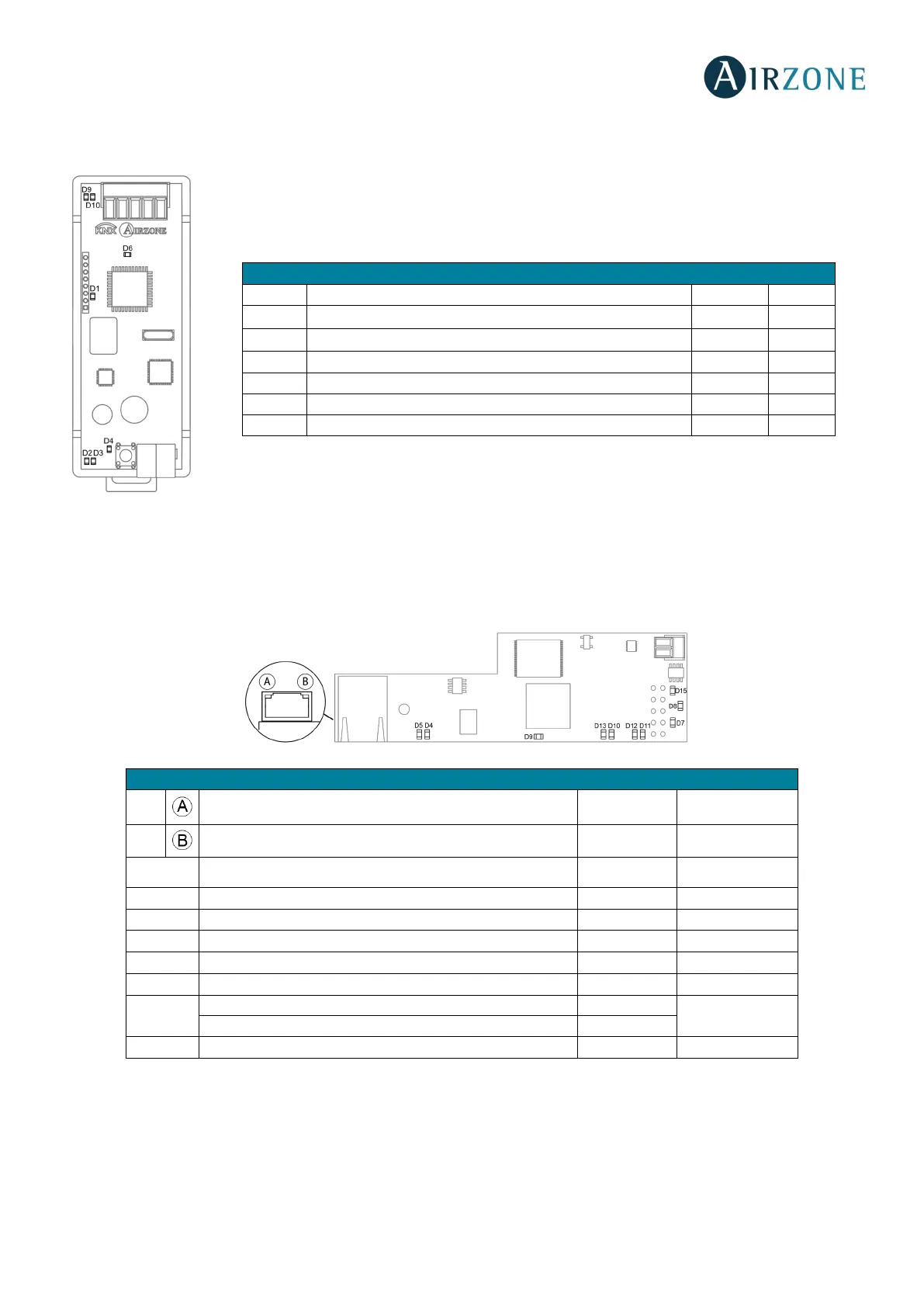

AIRZONE-KNX INTEGRATION GATEWAY (AZX6KNXGTWAY)
Airzone-KNX integration gateway incorporates LEDs that detect malfunctions.
AIRZONE-BACNET INTEGRATION GATEWAY AND AIRZONE-LUTRON INTEGRATION GATEWAY
(AZX6BACNET AND AZX6GTILUT)
Airzone-bacnet and Airzone-Lutron integration gateways incorporates LEDs that detect malfunctions.
Meaning
D1
Microprocessor performance
Blinking
Green
D2
Data reception from KNX bus Blinking Green
D3
Data transmission from KNX bus
Blinking
Red
D4
LED Programming
Solid
Red
D6
Power supply
Solid
Red
D9
Data reception from domotic bus
Blinking
Green
D10
Data transmission from domotic bus
Blinking
Red
Significado
D5
Ethernet connected
Blinking
Green
D4
Ethernet activity
Blinking
Yellow / Red
D7
Data transmission from automation bus
Blinking Red
D8
Data reception from automation
Blinking
Green
D9
Microprocessor performance
Blinking
Green
D10
Connected to the Internet
Blinking
Green
D11
Network data transmission
Blinking
Red
D12
Network data reception
Blinking
Green
D13
Configured as IP address through DHCP
Switch on
Red
Configured as Fixed IP address
Switch off
D15
Power supply
Solid
Red
