Airzone FLEXA 3.0 IBPRO6 Assembly Instructions

51

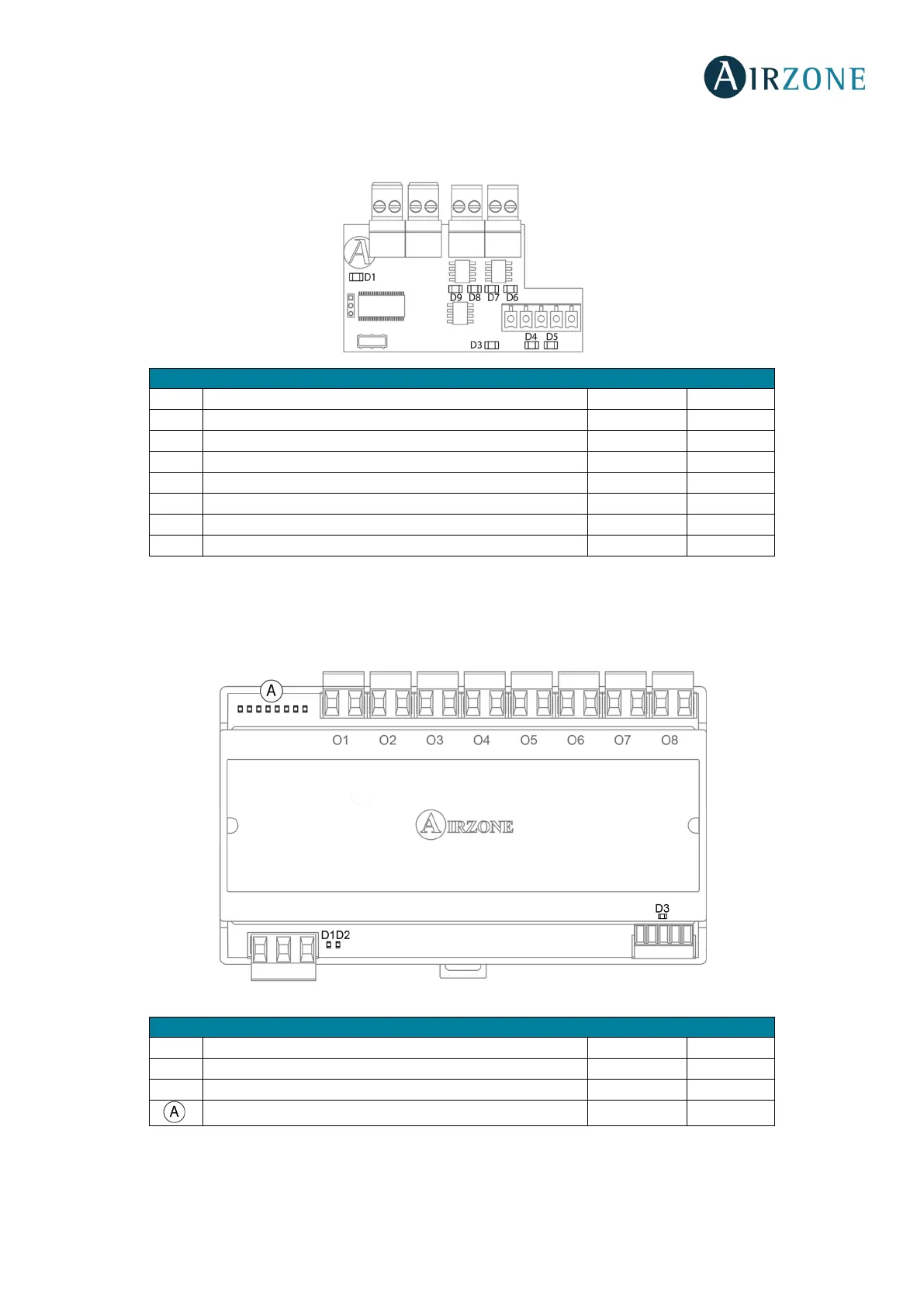

AIRZONE EXPANSION MODULE OF 2 ZONES (7 AND 8) (AZCE6EXP8Z)
Airzone expansion modules incorporates LEDs that detect unusual operations.
AIRZONE CONTROL MODULE OF RADIANT ELEMENTS (AZCE6OUTPUT8)
Airzone control modules incorporate LEDS that detect malfunctions.
Meaning
D1
Microcontroller operating
Blinking
Green
D3
Power supply
Solid
Red
D4
Transmission of Airzone connection bus data
Blinking
Red
D5
Reception of the Airzone connection bus data
Blinking
Green
D6
Close actuator zone 7
Blinking
Red
D7
Open actuator zone 7
Blinking
Green
D8
Close actuator zone 8
Blinking
Red
D9
Open actuator zone 8
Blinking
Green
Meaning
D1
Power supply
Solid
Red
D2
Module operating
Blinking
Green
D3
Data transmission and reception from automation bus
Blinking
Green
LEDs of relay state Switches Green
