Akai S3000XL User Manual

EFFECTS
Page 168 S3000XL Operator’s Manual
PROCESSING EXTERNAL SOUND SOURCES THROUGH THE EFFECTS
As well as processing programs, parts and keygroups through the internal effects, you
may also process external sound sources thereby turing the S3000XL into a very flexible
stand alone effects processor as well. You may process internal AND external sounds
through the effects for even more flexibility. For example, in a mixdown, you could be
mixing tracks off tape whilst running the S3000XL ‘live’ from a sequencer synced to a
timecode track. You could feed audio from tape via two of the mixer’s auxilliary sends to
the S3000XL:
MIDI
TIMECODE
AUX SENDs
L/R INPUTS
To DAT/Tape/Cassette

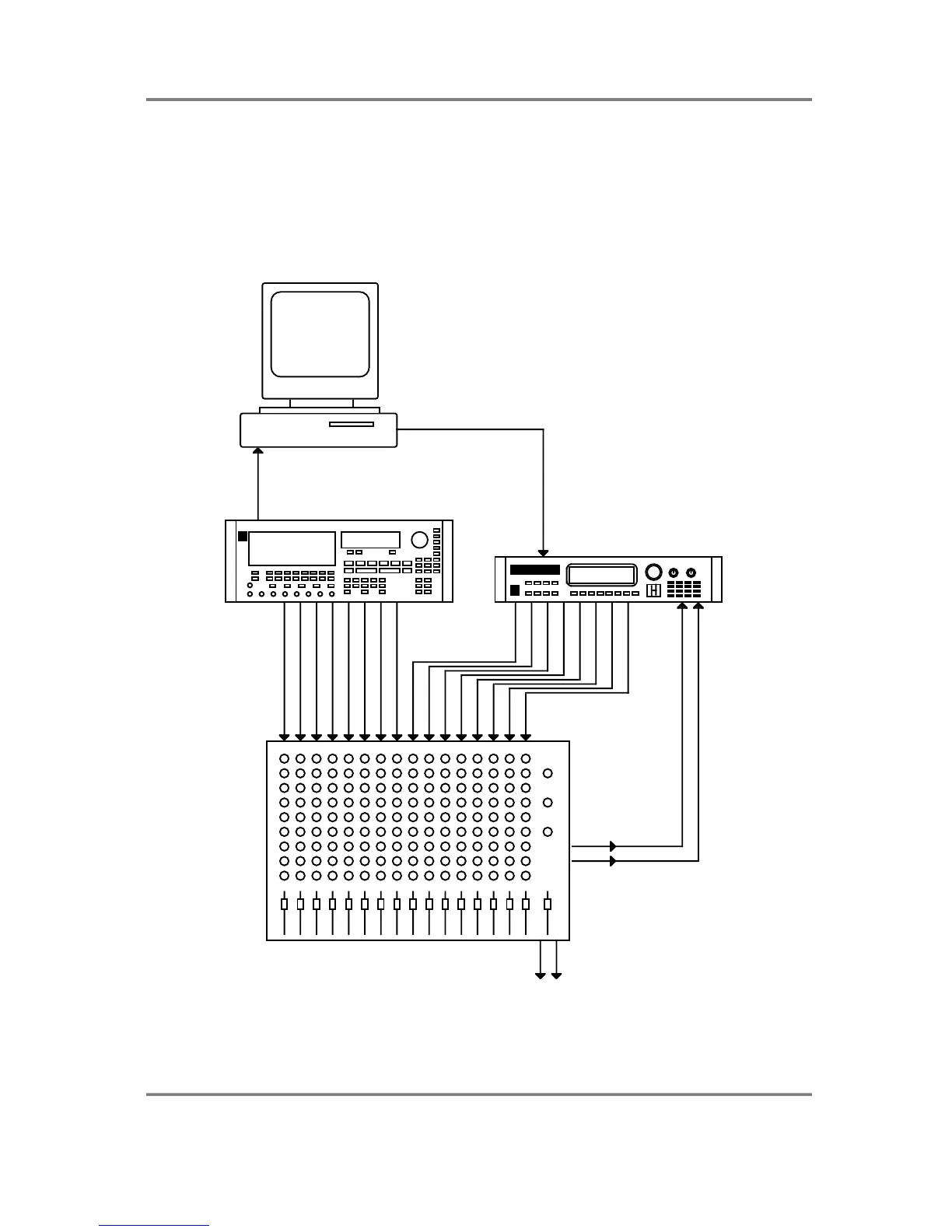

In this example, an Akai DR8 8-track digital audio recorder/editor is feeding its eight tracks
into the mixer providing the ‘non-MIDIable’ parts such as vocals, guitar, etc.. It is also
running timecode to a sequencer which, in turn, is ‘playing’ the S3000XL ‘live’ in the mix.

Akai S3000XL Specifications

General

Type	Sampler
Polyphony	32 voices
Sampling Rate	44.1 kHz
Memory	2 MB standard, expandable to 32 MB
Filter	Digital resonant low-pass filter
MIDI	In, Out, Thru
Weight	6.5 kg
Display	Backlit LCD
Storage	Floppy disk drive, SCSI for external storage
Outputs	8 individual outputs
Inputs	Stereo input
Effects	Optional EB16 effects board
Dimensions	Standard 19" 2U rackmount
