EFFECTS EDIT
S3000XL Operator’s Manual Page 183
STEREO PITCH SHIFT EFFECTS

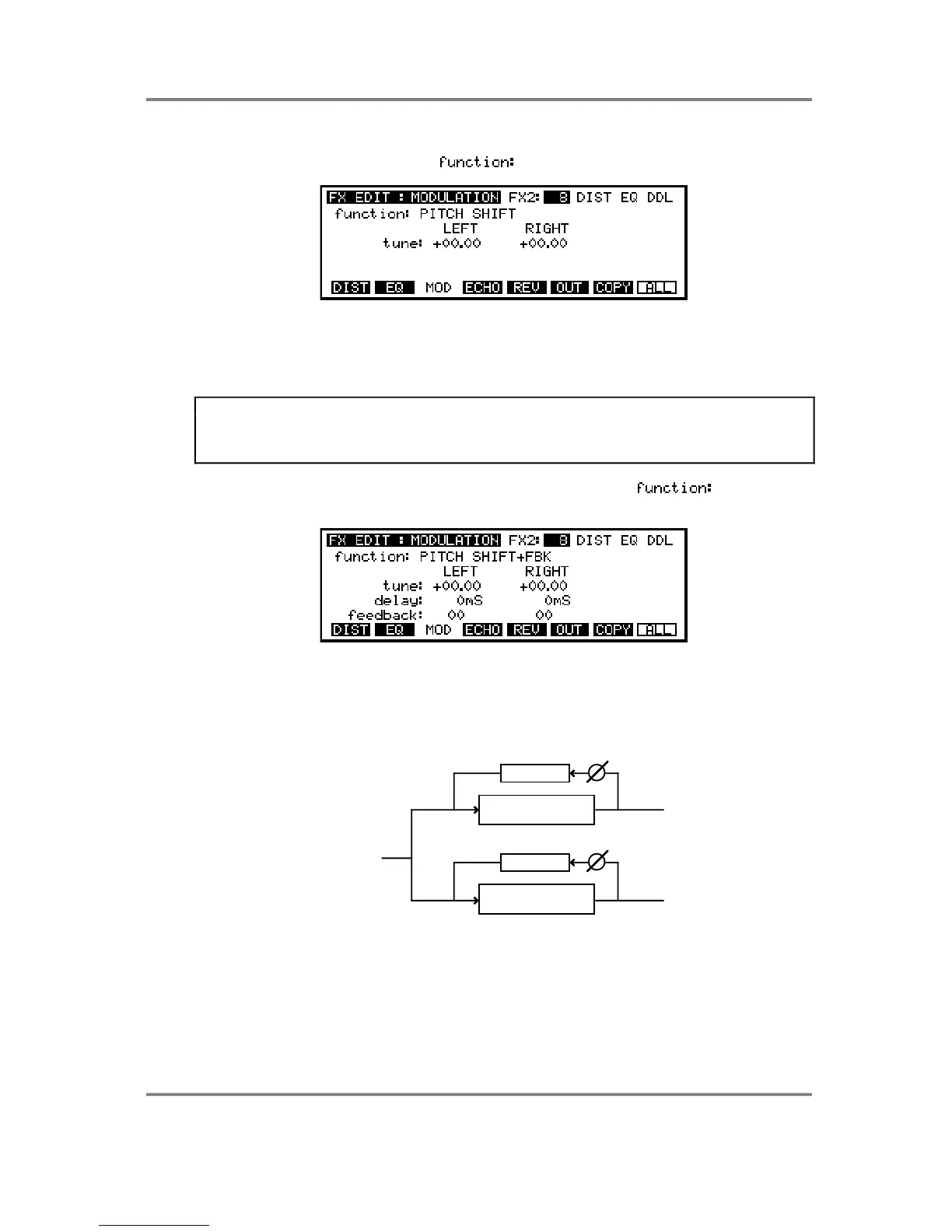

If you selected PITCH SHIFT in the field, the screen will look like this:
The pitch shifter allows you to set an interval for left and right. More often than not, a
small amount of detune is set here (i.e. LEFT = -00.05/RIGHT = +00.05) but you can also
set these parameters to specific intervals such as a fifth (+07.00) or an octave (+12.00) or
whatever.
NOTE: As with all but the most expensive pitch shifters, there is a small delay in the pitch
shifted sound. This can be used to enhance an ensemble effect, however. Also, extreme
pitch shifts will exhibit some ‘wobbly’ artefacts. In this case, mix the level of the pitch
shifted signal back a bit.
If you select PITCH SHIFT+FBK (pitch shift plus feedback) in the page, you will
see this screen.
This is exactly the same as before and you may set the pitch shift interval as described
above. However, in the PITCH SHIFT+FB selection, you also have access to a delay line.
The delay parameters allow you to set a delay time for the feedback loop. This effects
selection looks like this as a block diagram:
SHIFT LEFT
SHIFT RIGHT
DELAY L
DELAY R
Audio in
FBK L
FBK R
The signal from the pitch shifter is fed back into itself via a delay time. If you can imagine
it - the sound goes through the pitch shifter and, after a delay, that pitch shifted sound is
fed back into the pitch shifter where it is further pitch shifted. After a delay, it is fed back
again after the delay and shifted again. The amount of feedback and the delay time for
each channel is separately variable and this gives rise to all sorts of weird and wonderful
arpeggio effects.
