Akai S3000XL User Manual

EDIT PROGRAM - SINGLE
S3000XL Operator’s Manual Page 55

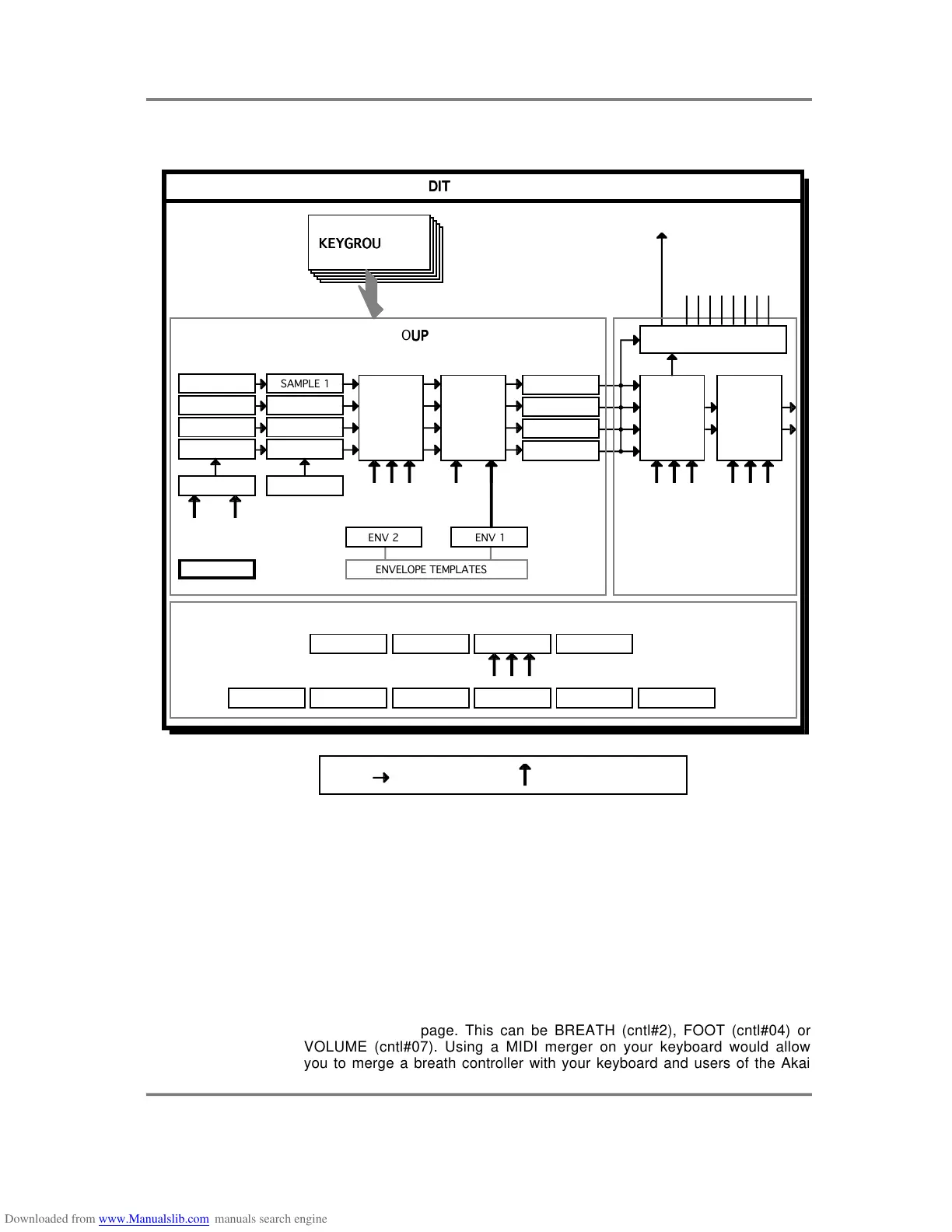

This block diagram may help you to understand the concept of APM.
MOD.WHL P.BEND AFTERTOUCH VELOCITY EXT.MIDIKBD
AMP
KEYGROUP(S)
EDIT PROGRAM
IND. OUT 1 - 8
TUNE
TUNE
TUNE
TUNE
PER KEYGROUP
ENV 2 ENV 1
ENVELOPE TEMPLATES
SAMPLE 1
SAMPLE 2
SAMPLE 3
SAMPLE 4
KG PITCH
FX SEND
PAN
PAN
PAN
PAN
IND. OUTPUT ASSIGN
MODULATION SOURCES
MASTER
PROGRAM OUTPUT
KEYSPAN
VEL SW/XFD
ENV 1 ENV 2 LFO 1 LFO 2
12dB/8ve
LOWPASS
RESONANT
FILTER
MASTER
OUTPUT
LEVEL
AUTO
PANNING
KEY = SIGNAL FLOW = CONTROL INPUT
The sources you have at your disposal are:
No source It seems almost pointless explaining this one! It means no modulation
source is routed!
Modwheel This selects the modulation wheel as the control source.
Bend This selects the pitchbend wheel or lever as the modulation source
Pressure This selects aftertouch as the control source. This is channel aftertouch
and not polyphonic aftertouch.
External This selects the MIDI controller set in the external control field of the main
GLOBAL - MIDI page. This can be BREATH (cntl#2), FOOT (cntl#04) or
VOLUME (cntl#07). Using a MIDI merger on your keyboard would allow
you to merge a breath controller with your keyboard and users of the Akai

Akai S3000XL Specifications

General

Type	Sampler
Polyphony	32 voices
Sampling Rate	44.1 kHz
Memory	2 MB standard, expandable to 32 MB
Filter	Digital resonant low-pass filter
MIDI	In, Out, Thru
Weight	6.5 kg
Display	Backlit LCD
Storage	Floppy disk drive, SCSI for external storage
Outputs	8 individual outputs
Inputs	Stereo input
Effects	Optional EB16 effects board
Dimensions	Standard 19" 2U rackmount
