described in the Alcatel-Lucent 4059 Attendant Console - Introduction to the 4059 Attendant
console - Busy Lamp Field).
In operation other than the BLF application, up to eight icons can be programmed from the
console.

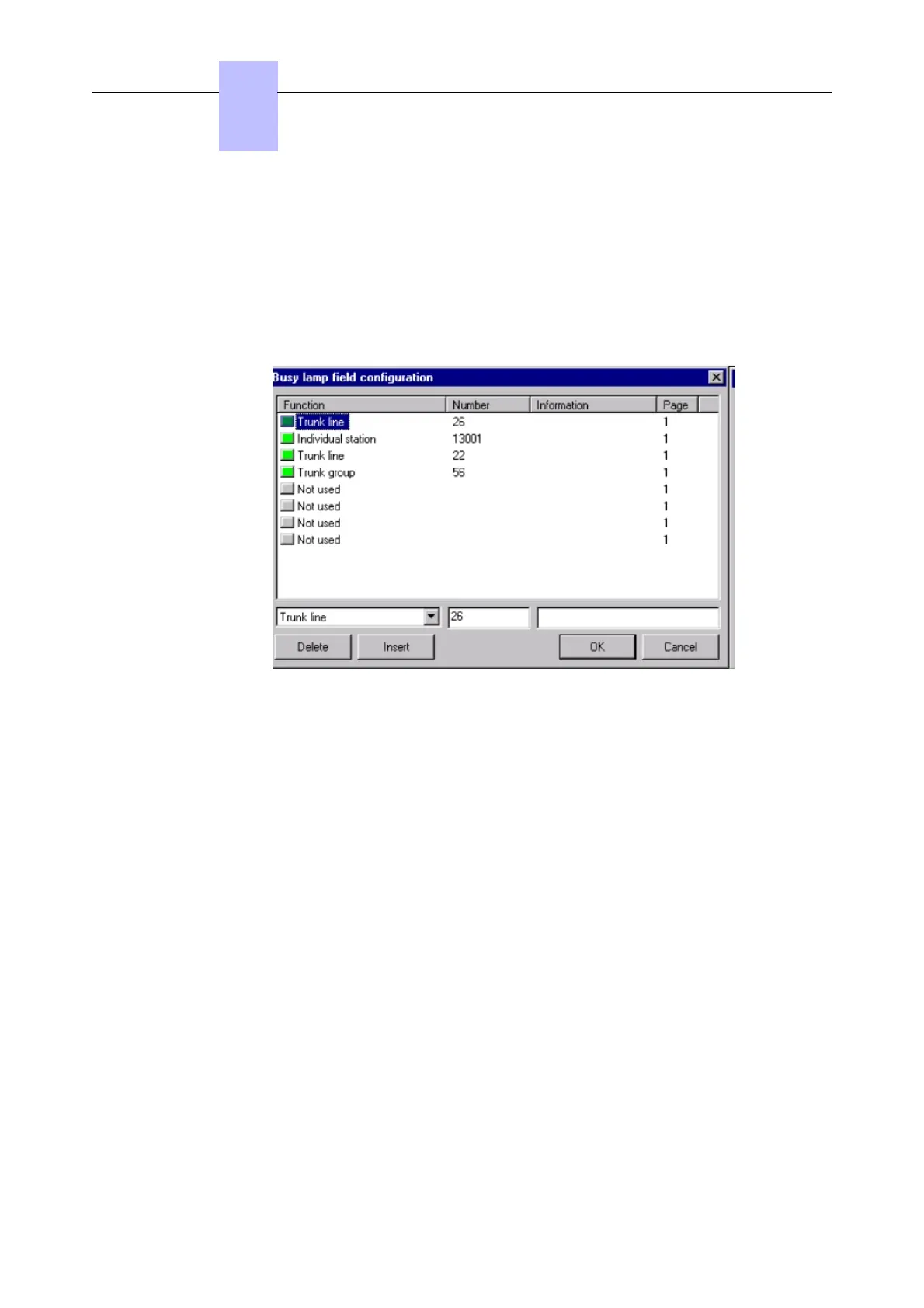

In the Option menu, click on Busy lamp field (or place the cursor in the busy lamp field
window, right-click, and select Configuration).
Example:
To create or modify the content of a supervision icon:
1. Select the icon to be created/modified: the fields at the bottom of the window are used to
configure this icon.
2. Select the type of supervision (individual station, trunk line, trunk group). Free indicates
that the icon has not yet been configured.
3. In the next field, enter the number of the object to be supervised.
The third field (optional) is used to enter additional information. This information, if entered,
displays in place of the number entered in the second field.
4. For a new icon, click on Insert. Otherwise click on OK.
To delete an existing icon, select it from the list, then click on Delete.
To exit the menu, click on Cancel.
5.9 Reserving a trunk group
The attendant console can reserve one or more (analog) trunk groups so as to always have an
outside access.
In the Extension menu, select Service mode (or press the F10 key). Then double-click on
Trunk groups.
Chapter
5
&-. ,#. (
58/69
!"# $%
