Alienware Area-51m - Removing Solid-State Drives; Procedure to remove M.2 2230 card

Identifier GUID-8A1E946C-4A8E-4FDA-AC9D-07C062176D7E
Status In Translation
Removing the solid-state drives
警告: 拆装计算机内部组件之前，请阅读计算机附带的安全信息，并遵循拆装计算机内部组件之前中的步骤。拆装计算机
内部组件之后，请遵循 拆装计算机内部组件之后中的说明。有关其他最佳安全操作信息，请参阅 www.dell.com/
regulatory_compliance 上的 Regulatory Compliance（管制标准）主页。
小心: 固态驱动器易损坏。处理固态驱动器时，请务必小心。
小心: 为了避免数据丢失，计算机处于睡眠或打开状态时，请勿卸下固态驱动器。
Identifier GUID-A01821F4-5286-47E9-BE73-4FB22D51FE82
Status In Translation
Prerequisites
Remove the base cover.
Identifier GUID-BC529F2C-687B-4283-A80A-A59FF1D4CEFC
Status In Translation
Procedure to remove M.2 2230 card
注: This procedure applies only to computers shipped with a M.2 2230 card installed.
注: Depending on the conguration ordered the computer may have up to two M.2 cards installed. Supported card
congurations per M.2 card slot:
• M.2 2230 solid-state drive
• M.2 2280 solid-state drive/Intel Optane storage

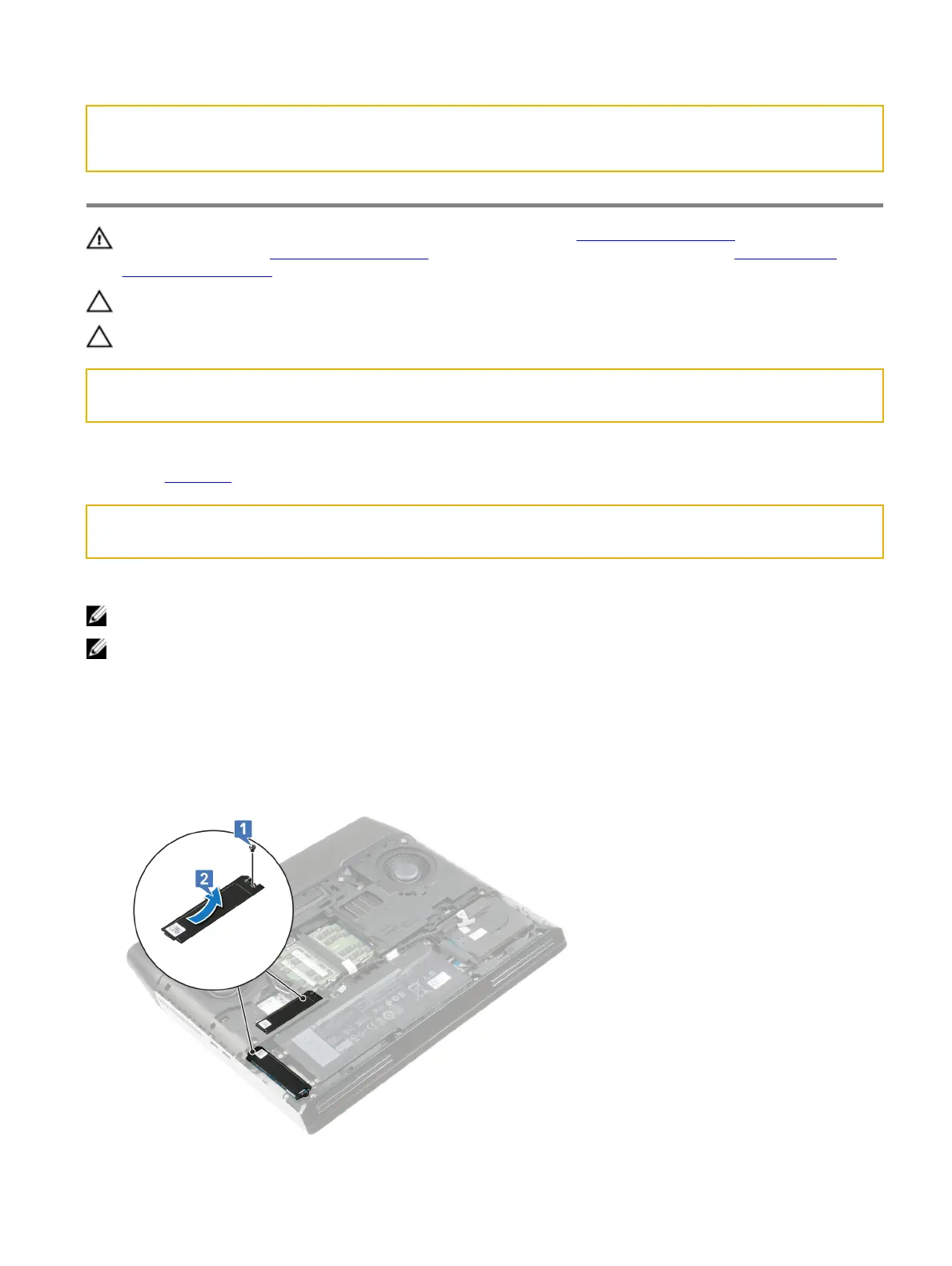

1 Remove the screw (M2x3) that secures the M.2 thermal shield to the palm-rest assembly and system board.
2 Lift the M.2 thermal shield from the palm-rest assembly and system board.
