Alienware Area-51m - Procedure to replace M.2 2280 card

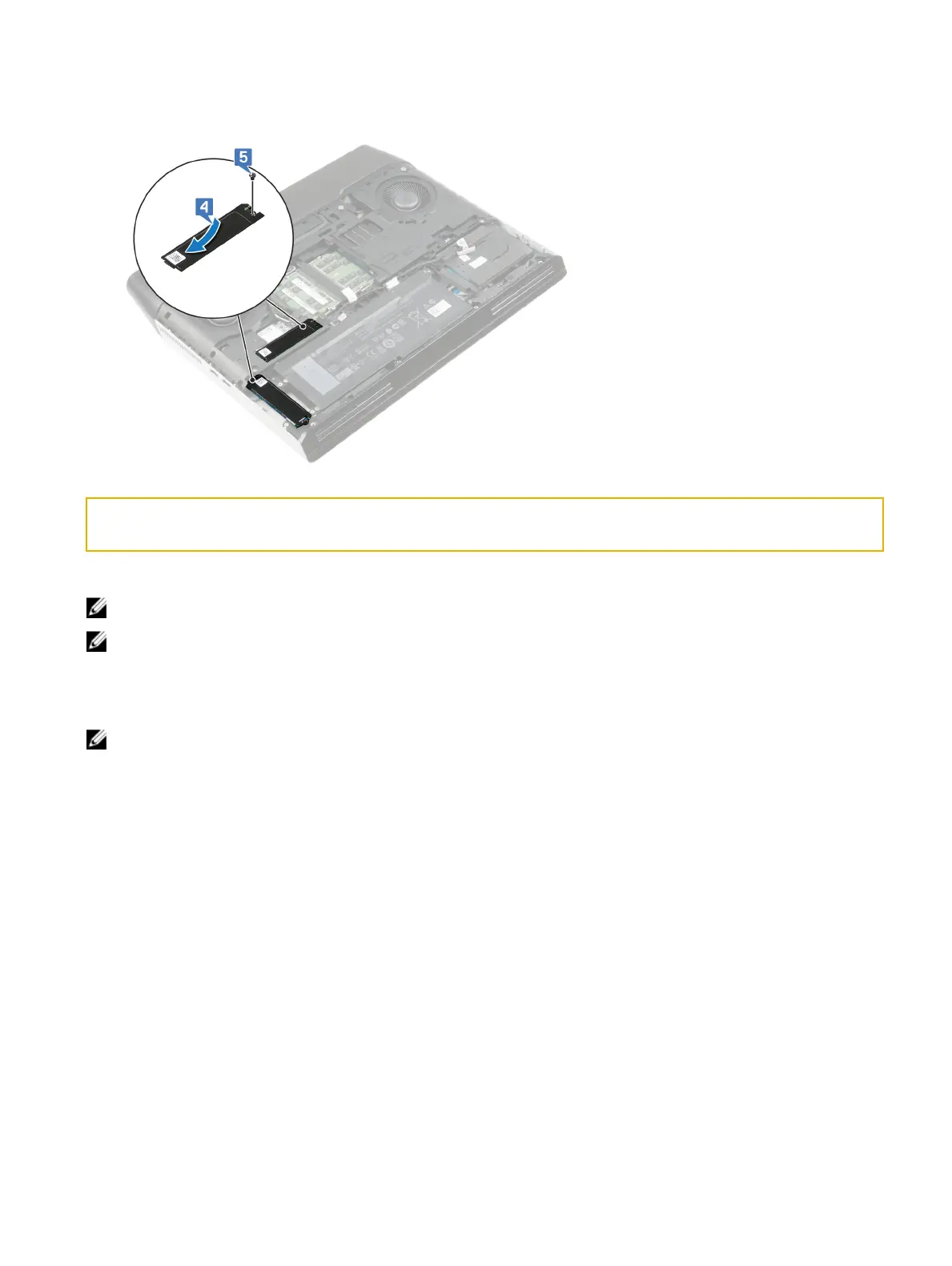

5 Replace the screw (M2x3) that secures the M.2 thermal shield to the palm-rest assembly and system board.
Identifier GUID-B4CC3DA7-7FD0-49BA-B5BF-A30F180ED0B9
Status In Translation
Procedure to replace M.2 2280 card
注: This procedure applies only to computers shipped with a M.2 2280 card installed.
注: Depending on the conguration ordered, the computer may have up to two M.2 cards installed. Supported card
congurations per M.2 card slot:
• M.2 2230 solid-state drive
• M.2 2280 solid-state drive/Intel Optane storage
注: Install the solid-state drive to the SSD1 slot before installing the solid-state drive to the SSD2 slot on the system
board.
1 Align the notch on the M.2 2280 solid-state drive with the tab on the M.2 solid-state drive slot on the system board.
2 Slide the M.2 2280 solid-state drive into the M.2 solid-state drive slot on the system board.
3 Align the screw holes on the thermal shield with the screw holes on the computer base.
