Alienware Area-51m - Replacing the Computer Base

Identifier GUID-BD8F2FF7-9861-42AD-82C7-DF6983529215
Status Translated
装回计算机基座
警告: 拆装计算机内部组件之前，请阅读计算机附带的安全信息，并遵循拆装计算机内部组件之前中的步骤。拆装计算机
内部组件之后，请遵循 拆装计算机内部组件之后中的说明。有关其他最佳安全操作信息，请参阅 www.dell.com/
regulatory_compliance 上的 Regulatory Compliance（管制标准）主页。
Identifier GUID-AD5BA772-9D6A-48E5-A9C5-22B4A0904AB4
Status In Translation
Procedure

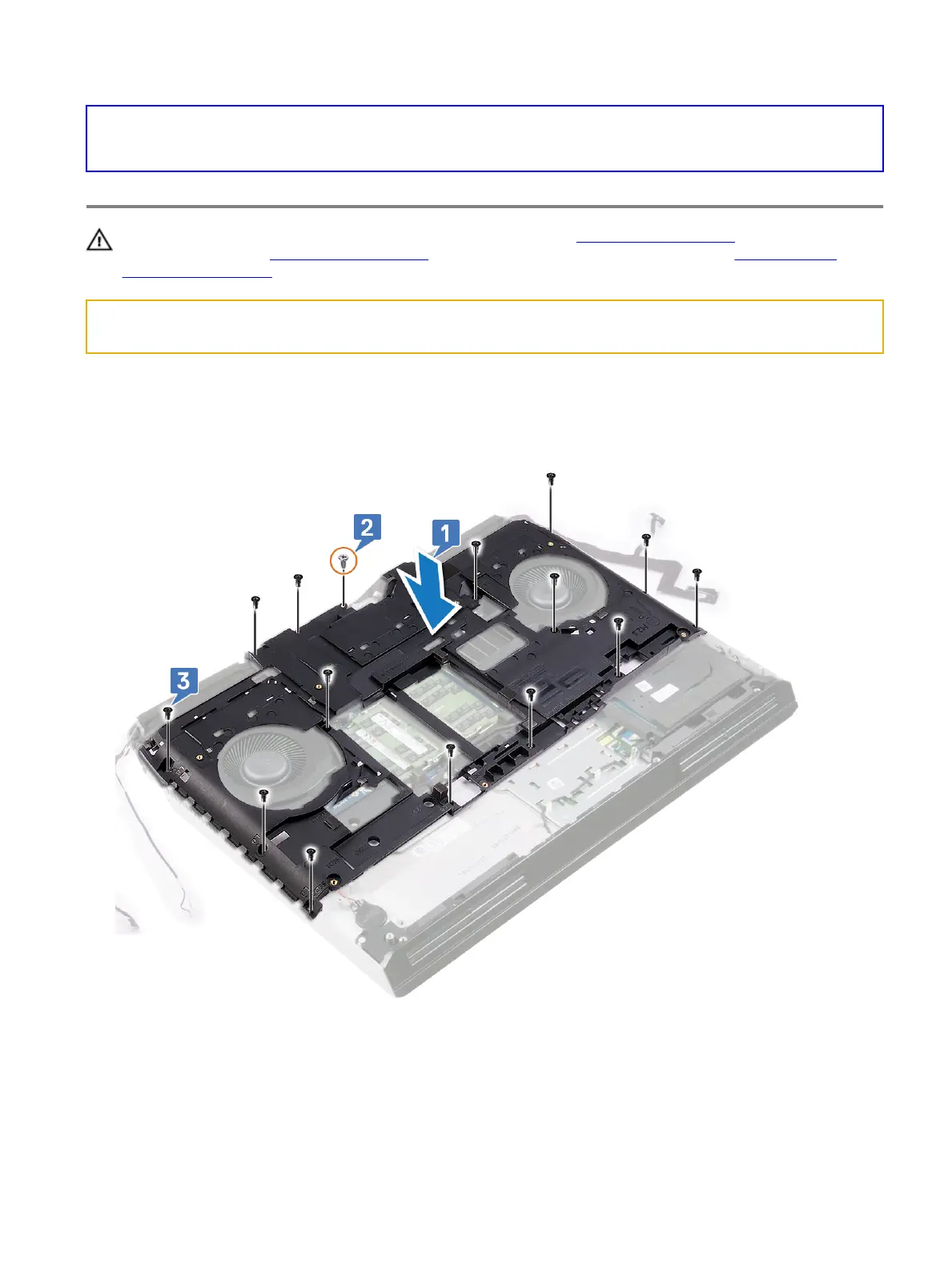

1 Align the screw holes on the computer base with the screw holes on the palm-rest assembly.
2 Replace the screw (M2.5x12) that secures the computer base to the palm-rest assembly.
3 Replace the 14 screws (M2.5x8) that secure the computer base to the palm-rest assembly.
4 Adhere the display cable and camera cable to the computer base.
5 Connect the camera cable to the system board.
6 Connect the display cable to the system board.
7 Align the screw hole on the display-cable bracket with the screw hole on the system board.
8 Replace the screw (M2x3) that secures the display-cable bracket to the system board.
9 Adhere the tobii cable to the computer base.
