装回音频子板
警告: 拆装计算机内部组件之前，请阅读计算机附带的安全信息，并遵循拆装计算机内部组件之前中的步骤。拆装计算机
内部组件之后，请遵循 拆装计算机内部组件之后中的说明。有关其他最佳安全操作信息，请参阅 www.dell.com/
regulatory_compliance 上的 Regulatory Compliance（管制标准）主页。
Identifier GUID-569ED740-A8FD-4DAD-8916-DF20C77B026F
Status In Translation
Procedure

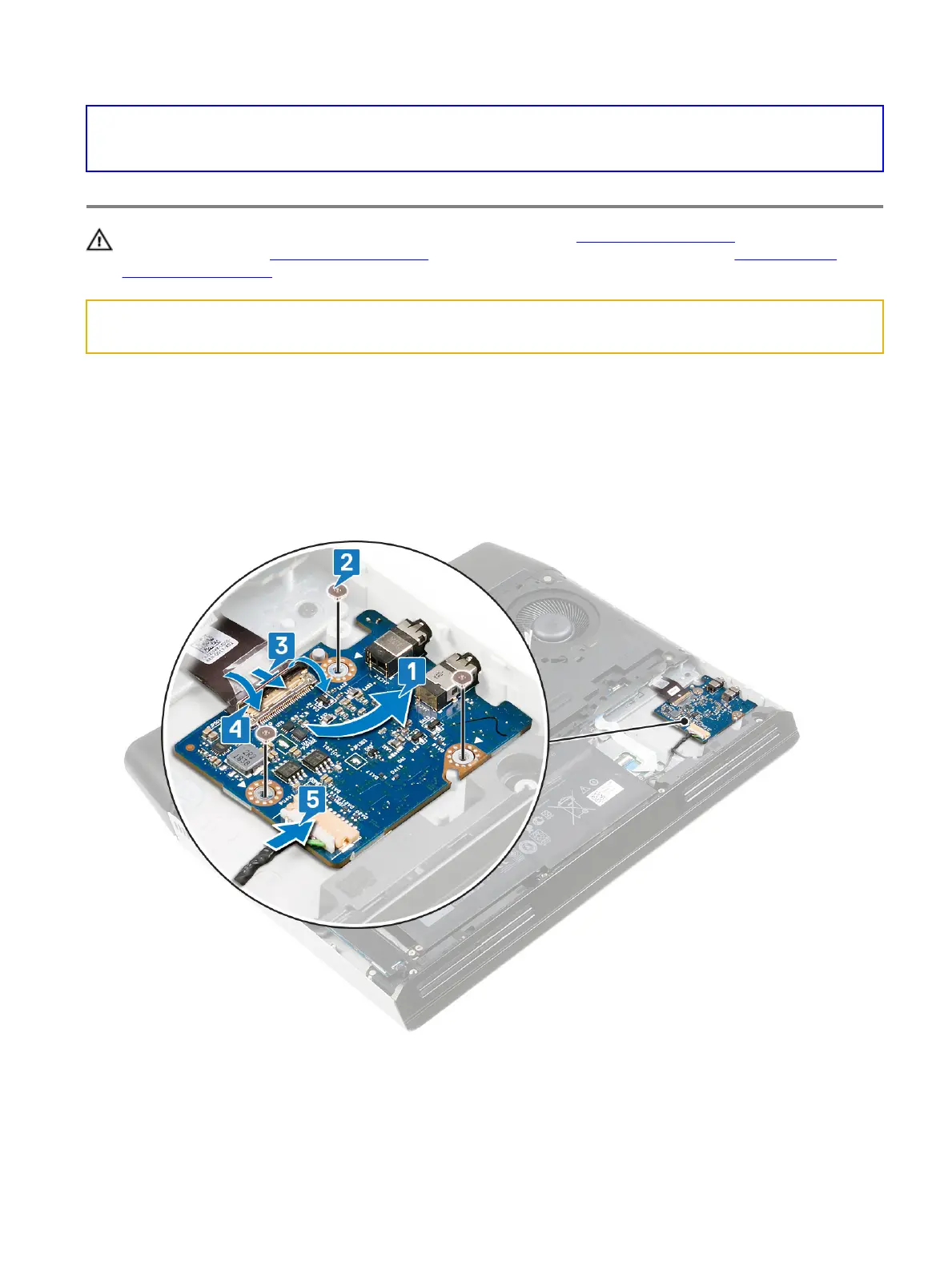

1 Slide the audio daughter-board at an angle into the slot on the palm-rest assembly.
2 Replace the three screws (M2.5x2.5) that secure the audio daughter-board to the palm-rest assembly.
3 Connect the audio daughter-board cable to the connector on the audio daughter-board and close the latch to secure the
cable.
4 Adhere the tape that secures the audio daughter-board cable.
5 Connect the speaker cable to the audio daughter-board.
