Alienware Area-51m - Replacing Solid-State Drives; Procedure to replace M.2 2230 card

Identifier GUID-9CE3DBCE-991F-4FD9-A0C5-F0D96AF1B126
Status In Translation
Replacing the solid-state drives
警告: 拆装计算机内部组件之前，请阅读计算机附带的安全信息，并遵循拆装计算机内部组件之前中的步骤。拆装计算机
内部组件之后，请遵循 拆装计算机内部组件之后中的说明。有关其他最佳安全操作信息，请参阅 www.dell.com/
regulatory_compliance 上的 Regulatory Compliance（管制标准）主页。
小心: 固态驱动器易损坏。处理固态驱动器时，请务必小心。
Identifier GUID-1CB60E47-3A09-494B-AD2E-2D3D2D856BB6
Status In Translation
Procedure to replace M.2 2230 card
注: This procedure applies only to computers shipped with a M.2 2230 card installed.
注: Depending on the conguration ordered the computer may have up to two M.2 cards installed. Supported card
congurations per M.2 card slot:
• M.2 2230 solid-state drive
• M.2 2280 solid-state drive/Intel Optane storage

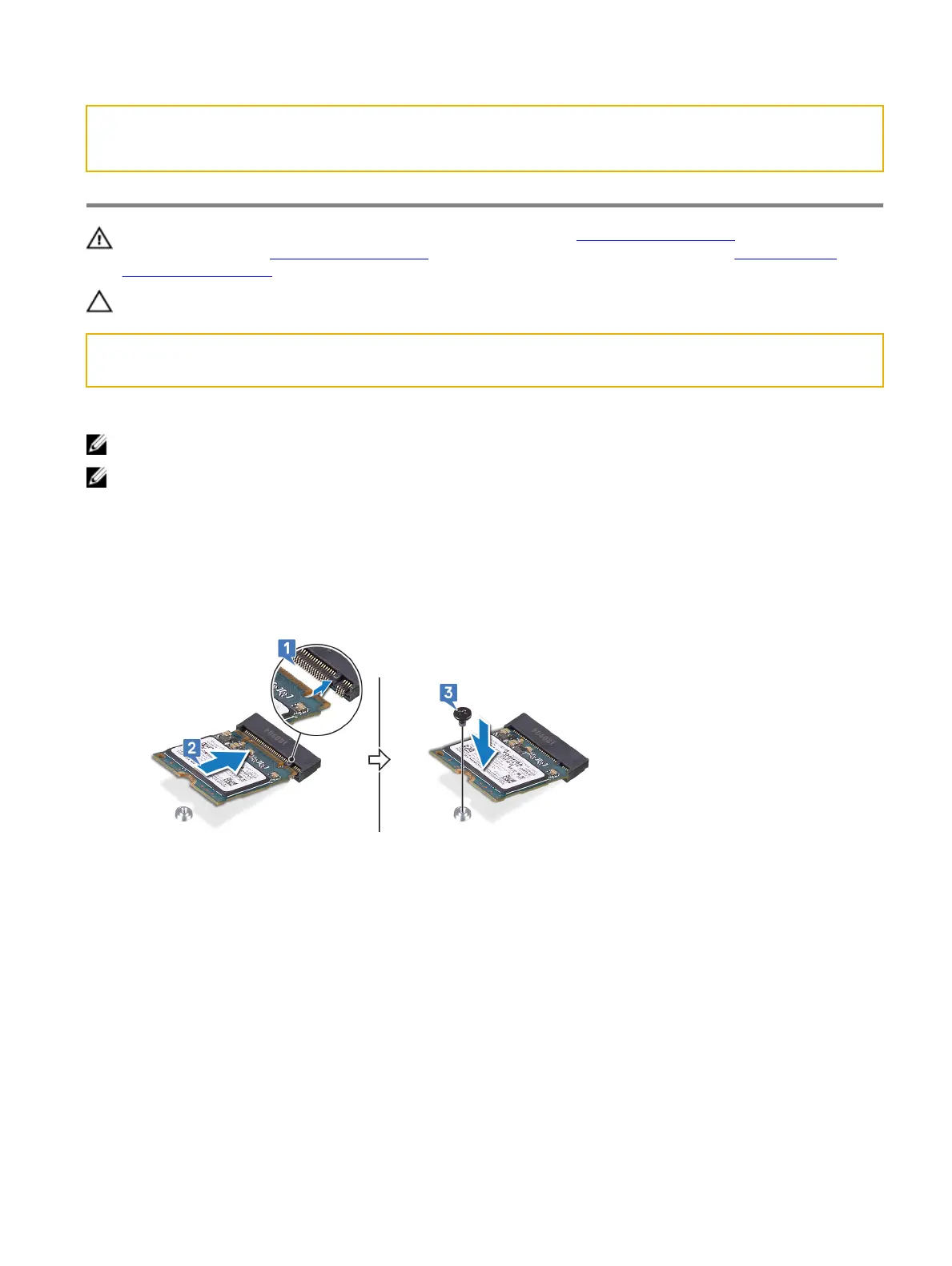

1 Align the notch on the M.2 2230 solid-state drive with the tab on the M.2 solid-state drive slot on the system board.
2 Slide the M.2 2230 solid-state drive into the M.2 solid-state drive slot on the system board.
3 Replace the screw (M2x3) that secures the M.2 2230 solid-state drive to the palm-rest assembly.
4 Align the screw holes of the M.2 thermal shield with the screw holes on the palm-rest assembly and system board.
