Alienware Area-51m - Page 41

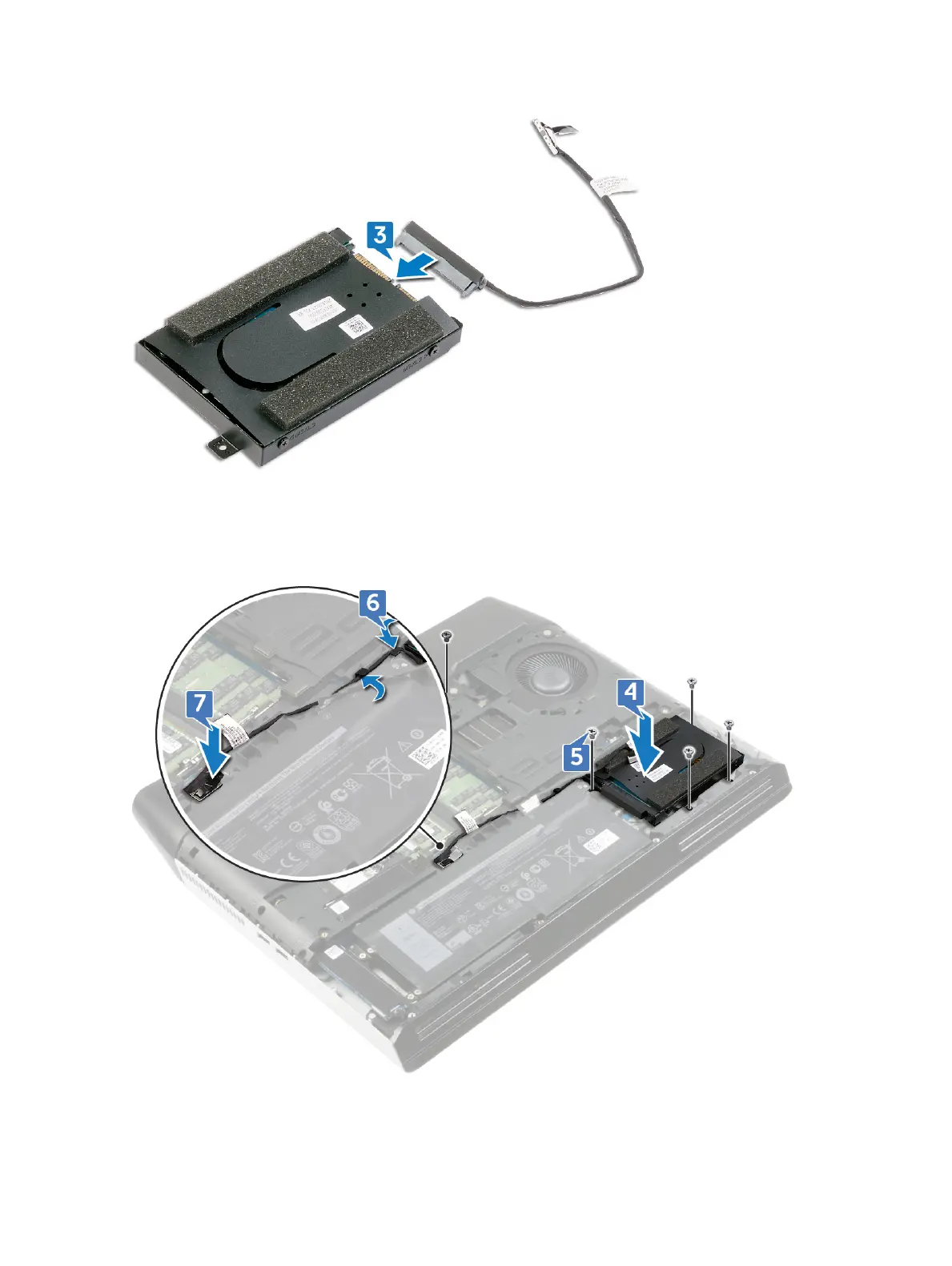

3 Connect the interposer to the hard-drive assembly.
4 Align the screw holes on the hard-drive assembly with the screw holes on the palm-rest assembly.
5 Replace the four screws (M2.5x5) that secure the hard-drive assembly to the palm-rest assembly.
6 Route the hard-drive cable through the routing guides on the computer base.
7 Connect the hard-drive cable to the system board.
41
