Alienware Area-51m - Page 99

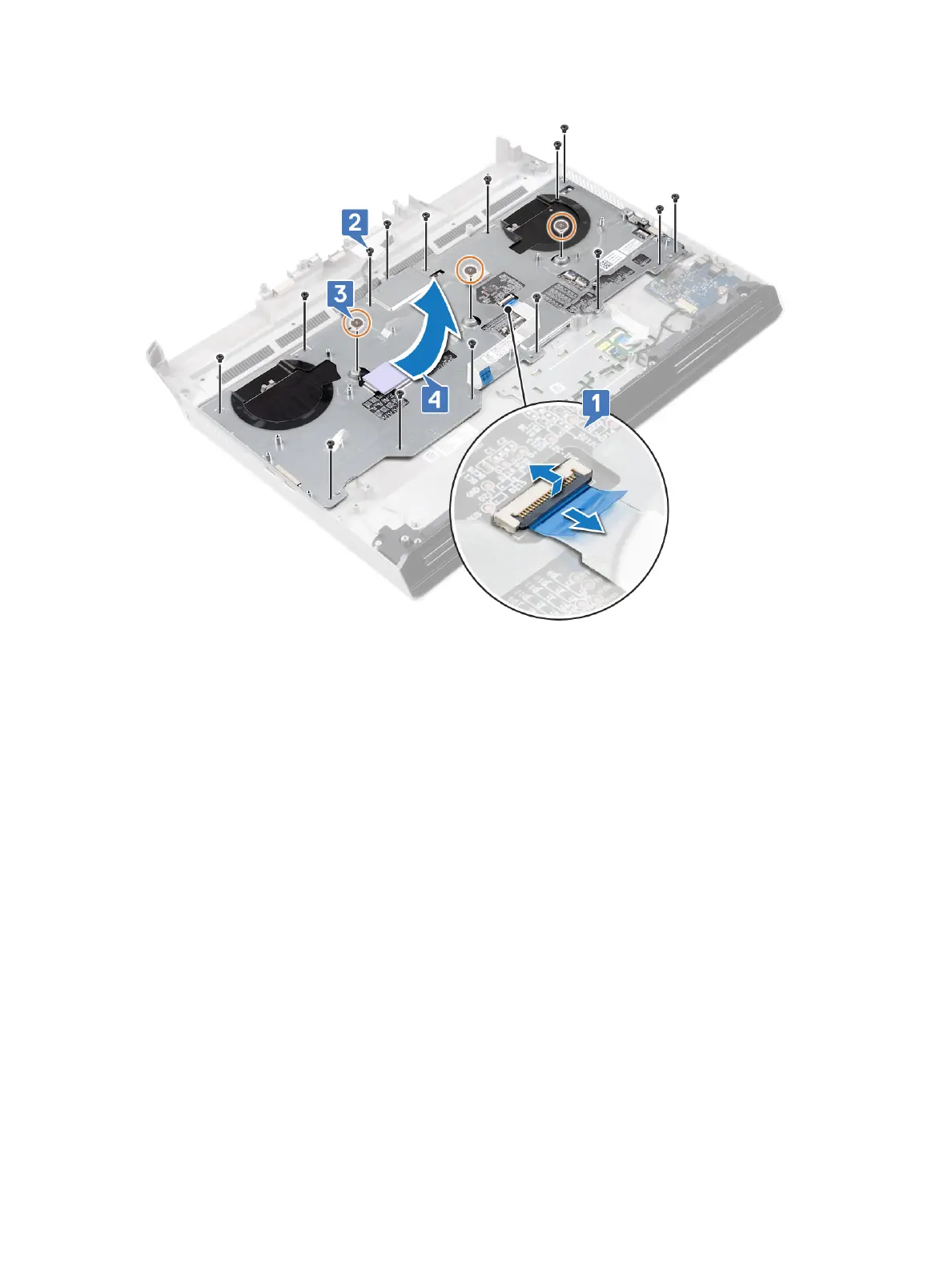

4 Lift the keyboard bracket from the macro side and slide out of clips on the opposite side.
5 Open the latch and disconnect the macro-keys cable from the keyboard.
6 Open the latch and disconnect the macro-keys backlight cable from the keyboard.
7 Peel o the macro-keys cable and the macro-keys backlight cable from the keyboard.
