Using Auto Start Mode 3-5

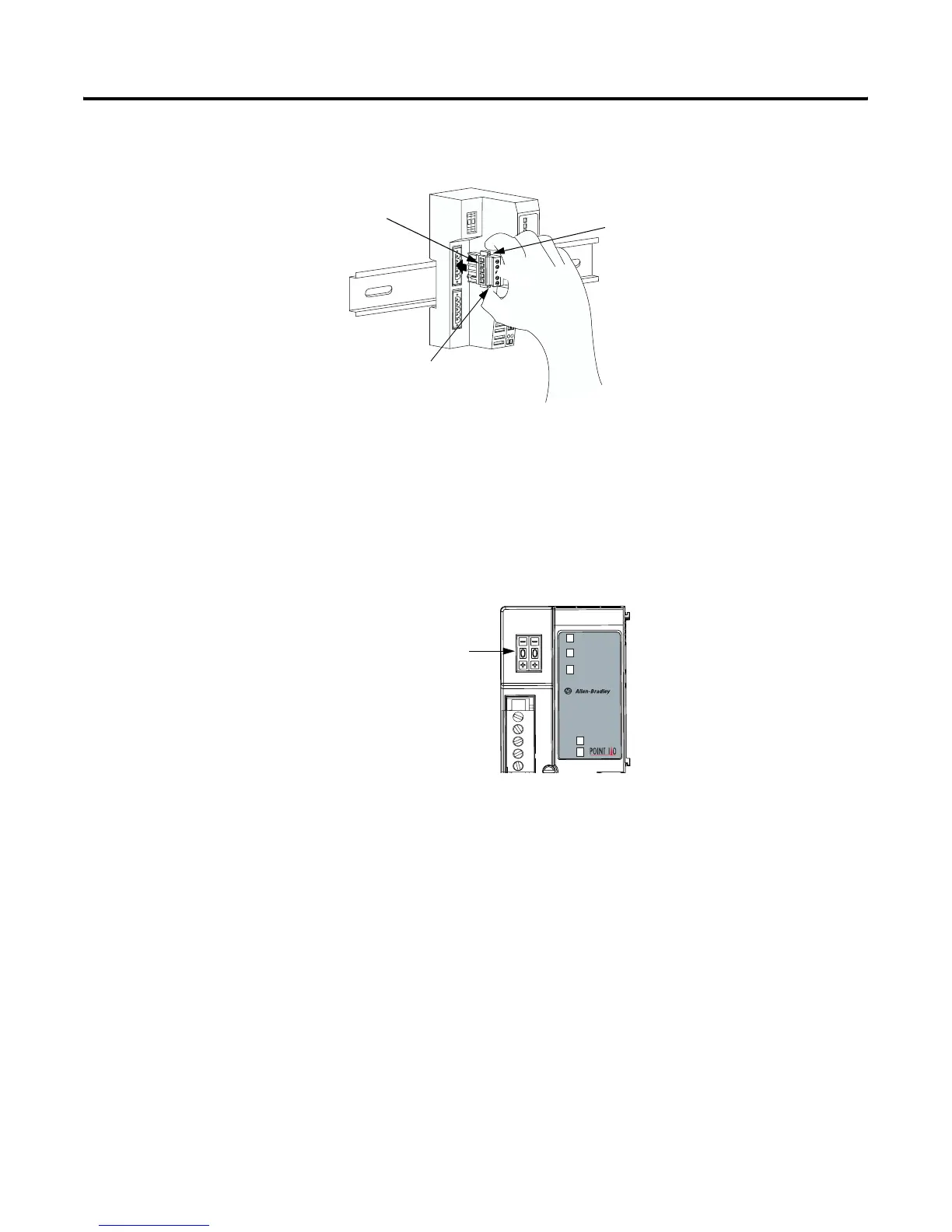

3. Insert the DeviceNet network plug and tighten the
holding screws.
4. Set the node address using the 2-position thumbwheel switch.
Valid physical settings range from 00 to 63 (Factory setting =63).
Press either the + or - buttons to change the number.
You can also set the node address to some value between 64-99.
In this case, you can change the adapter’s node address via the
RSNetWorx for DeviceNet software. If a value between 64-99 is
used, at power-up the node address stored in the adapter’s
non-volatile memory is used.
31111-MC
DeviceNet network plug
Holding screw
Holding screw
Adapter
Status
Network
Status
Subnet
Status
1734-ADNX
Field
Power
System
Power
Network Node
Address Thumbwheel
42510
