Upload/Download Connections
For programming and configuration, the MicroView is connected to
your computer’s RS-232 port using a programming cable (Catalog No.
2707-NC8). See Appendix B if you need to construct your own cable.
Upload/Download Connections
Default Settings
The MicroView is preset at the factory with these defaults:
Operating Parameters - The default operating functions are shown
in the table below. The operating functions can be set using the
MicroView Mode Menu. Refer to Chapter 3.
Operating System - The MicroView is provided with a default
application file using the MicroLogix DF1 operating system. The
application file displays the message:

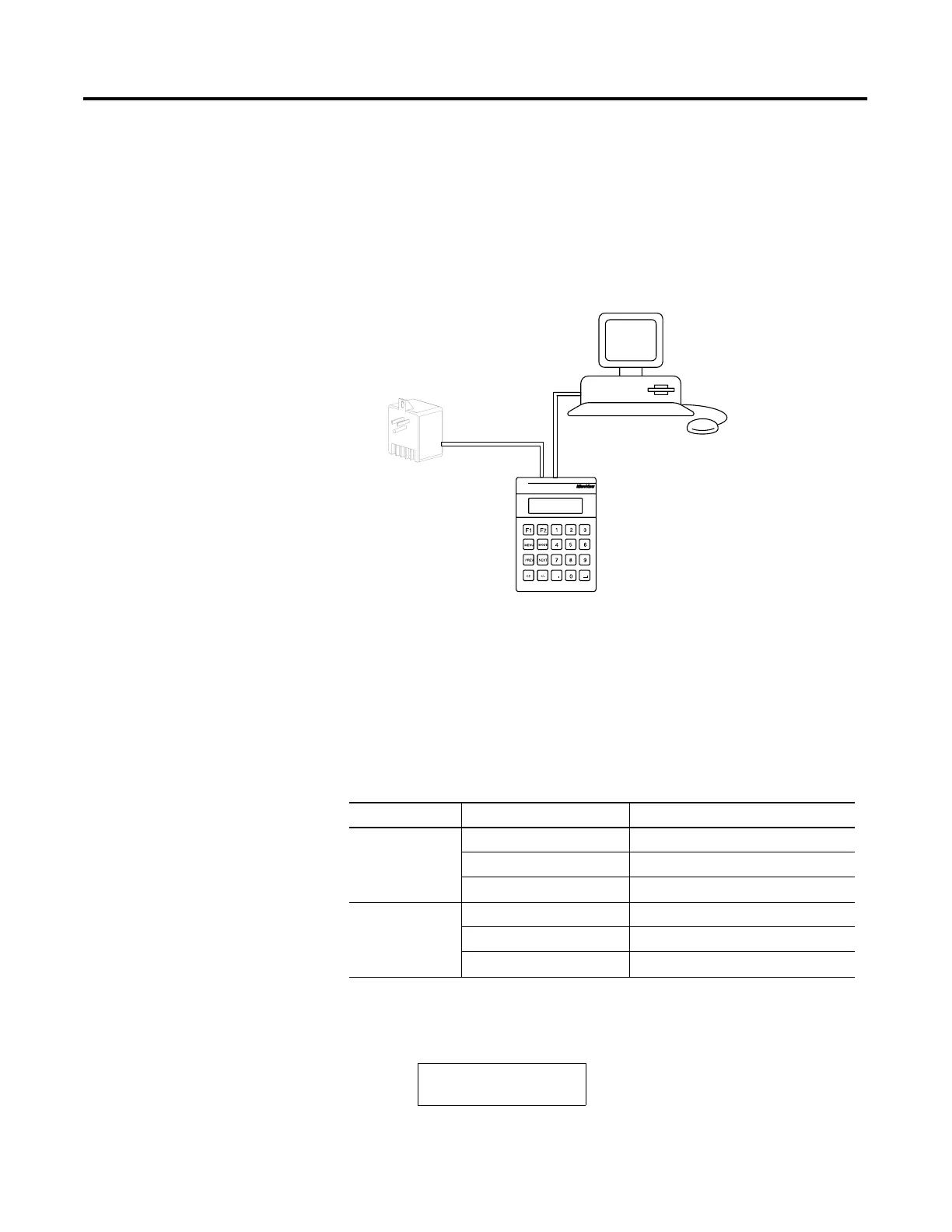

Programming Controller
MicroView Operator Interface
Com 1 or Com 2
RS-232
Power Supply
(Upload/Download Only)
Programming Cable
Catalog No. 2707-NC8 or
1761-CBL-PM02
Function Parameter Default Value
Com-Port Baud 9600
Data Bits 8 (Fixed)
Parity None (Fixed)
Other Simulate Off
Master Code 00000000 (All zeros)
Scale On
No Application
Program Loaded
