3-8 Initial Setup and Mode Menu
After the new parameter is saved, the MicroView will again
display:
Note: Security codes can contain the wildcard character “?”. Any
entered value will be treated as a match to the wildcard. You must
make sure that the master security code is different from security
codes using wildcard entries. Otherwise the master security code may
be seen as a security code. For example, if the:
Security Code =12??????
Master Code =12368794
When the master security code above is entered, the MicroView
interprets it as a security code.
Enabling / Disabling
Scaling
Use scaling to convert data from a controller to engineering units such
as gallons or psi. When scaling is disabled, the values are not
converted. Refer to the MicroView Programming Software Manual for
a description of how values are scaled. The scaling factor is
determined by the application designer, it cannot be changed by the
operator.
1 Code
2 Scal
3 Sim
4 Test
5 Ex

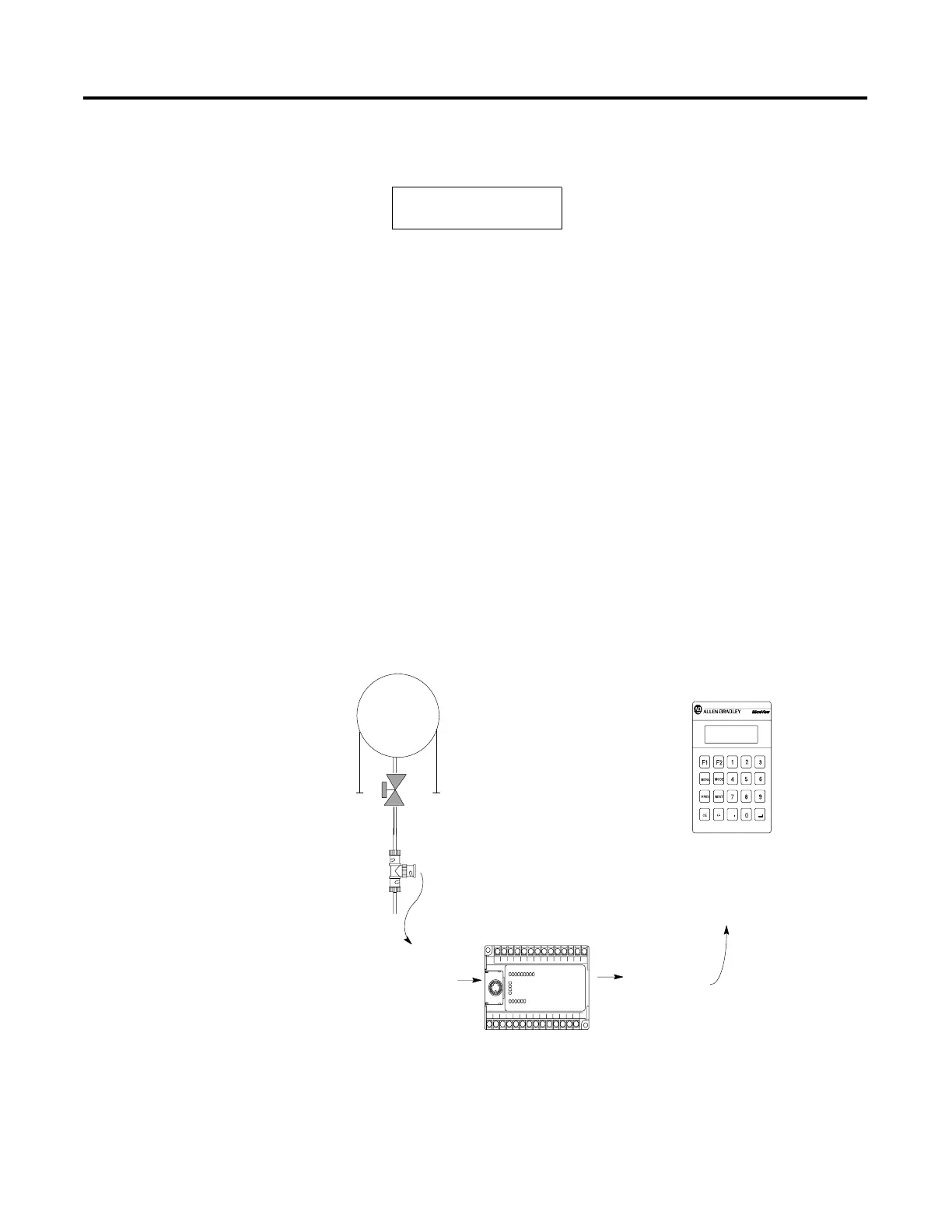

Flow Rate
Transducer
Flow Rate
Transducer
Value = 510
MicroLogix Controller
MicroView displays
scaled value of 16
gallons Per Minute
Value from
Controller = 510
