Microview Overview 2-3
Keypad
The keypad is separated by color into easily identified groups or
functions. In addition, each key has a raised dome in the center to
provide tactile feedback.
The MicroView uses a sealed membrane, tactile feedback keypad. The keys are
color coded to easily identify key functions.

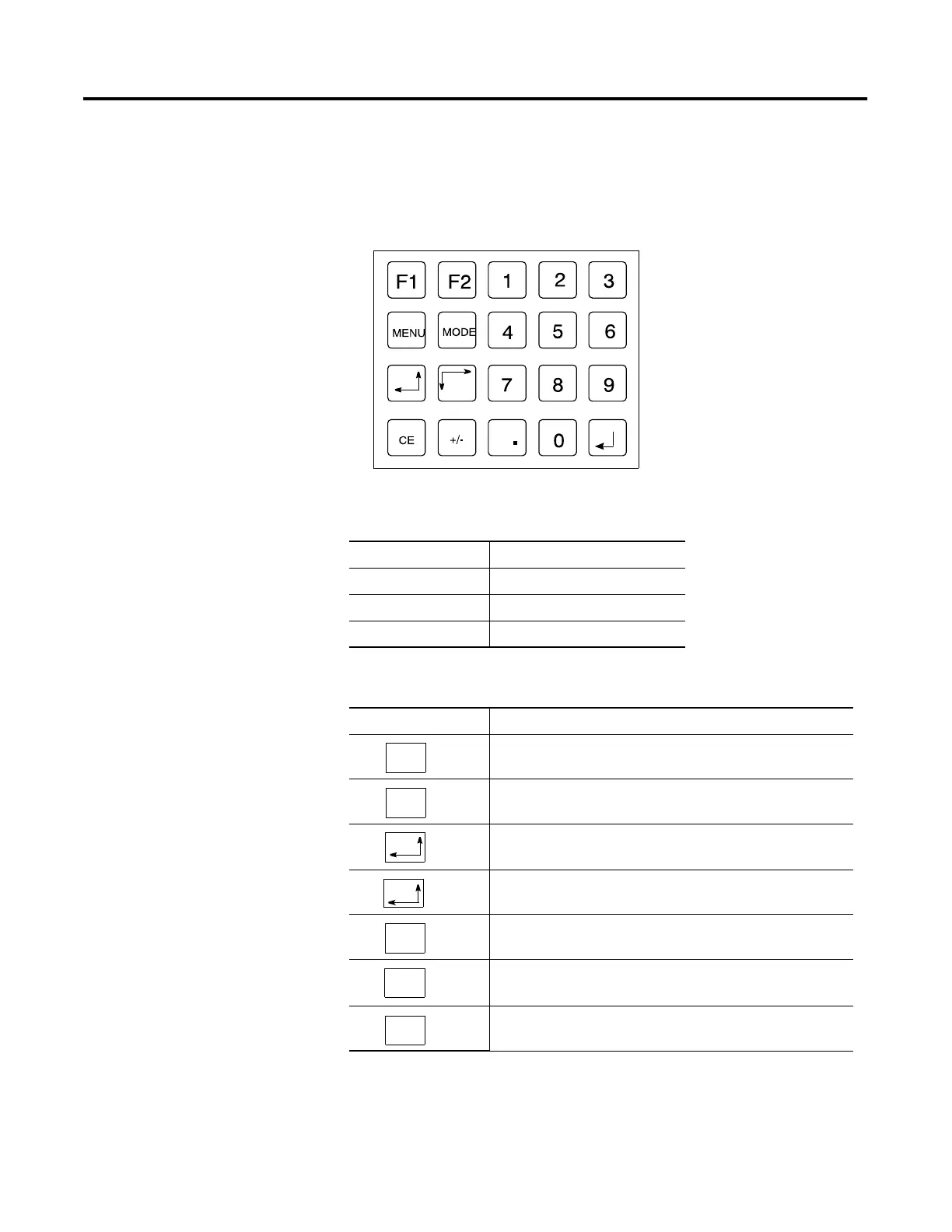

The following table defines the function of each keypad key.
Key Color Function
Blue Function Keys, F1 and F2
Dark Grey Display/Format Control
Light Grey Numeric Entry
Key Function
Returns to the main menu of an application.
Accesses special features and configuration of MicroView
operating parameters.
Steps back through a sequence of linked screens.
Steps forward through a sequence of linked screens.
Clears an entire value during data entry.
Toggles a data entry value between positive or negative.
Enters a decimal point.
PREV
NEXT
MENU
MODE
PREV
NEXT
+ / -
.
